Face Mill, Indexable

Part Number		Purchase
Face Mill, Indexable. About this grid. Use spreadsheet functions to search the grid: Click the column title to sort the rows. Sorting may be done on multiple columns in either ascending or descending order. Right-click on the column heading to show a context menu. The menu allows you to sort or clear the sorting for a column. The list may be filtered using the filter function within the context menu. The filter may be cleared by pressing the "Clear Filter" button. Once you have found the product your interested in: Enter the quantity you would like to purchase and your desired ship date. Press the “Check Price And Availability” graphic. The system will look up your specific pricing for that quantity and a projected ship date based on our inventory and production capacity. Press the “Add This to My Cart” graphic to place the quantity of the item in your shopping cart, along with the requested ship date.

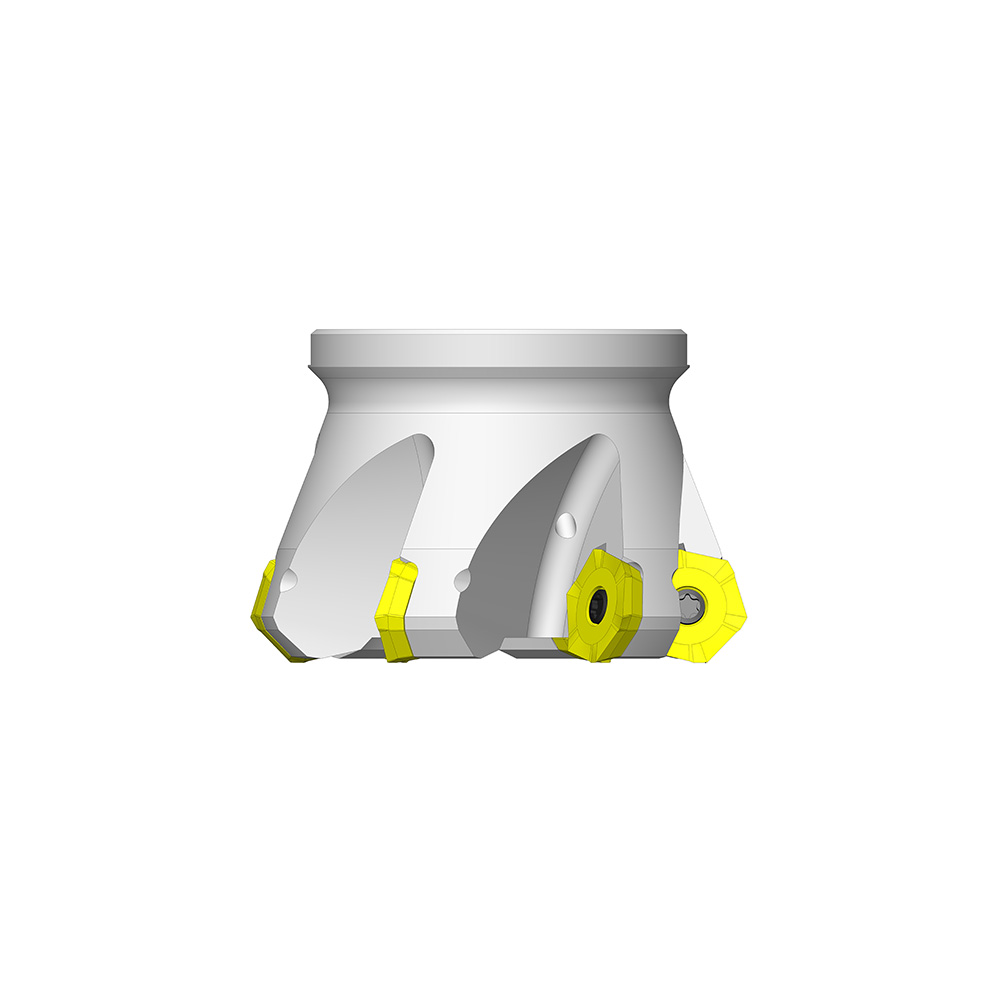

970-000-110 104-PM4-1.50-4-.500-06	PATRIOT HP® 970 (PM4-1.50-4-.500-06), PM4 Ø1-1/2" High Performance Indexable Face Mill (KAPR 45°), Coolant Thru UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.1770DCB (Connection Bore Diameter):0.5000DCmax (Cutting Diameter Maximum):1.9800DCmin (Cutting Diameter Minimum):1.5000KAPR (Entering Angle):45.0LF (Functional Length):1.7500Zc (Cutting Edge Count):4DCONms (Connection Diameter Machine Side):0.5000ZcEff (Cutting Edge Count Effective):4BMC (Tool Material):SteelCoolant Thru:Yes	$518.47 Quantity Spin Up Spin Down Quantity is Required
970-000-111 104-PM4-2.00-5-.750-06	PATRIOT HP® 970 (PM4-2.00-5-.750-06), PM4 Ø2" High Performance Indexable Face Mill (KAPR 45°), Coolant Thru UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.1770DCB (Connection Bore Diameter):0.7500DCmax (Cutting Diameter Maximum):2.4800DCmin (Cutting Diameter Minimum):2.0000KAPR (Entering Angle):45.0LF (Functional Length):1.7500Zc (Cutting Edge Count):5DCONms (Connection Diameter Machine Side):0.7500ZcEff (Cutting Edge Count Effective):5BMC (Tool Material):SteelCoolant Thru:Yes	$575.70 Quantity Spin Up Spin Down Quantity is Required
970-000-112 104-PM4-2.50-6-1.00-06	PATRIOT HP® 970 (PM4-2.50-6-1.00-06), PM4 Ø2-1/2" High Performance Indexable Face Mill (KAPR 45°), Coolant Thru UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.1770DCB (Connection Bore Diameter):1.0000DCmax (Cutting Diameter Maximum):2.9800DCmin (Cutting Diameter Minimum):2.5000KAPR (Entering Angle):45.0LF (Functional Length):2.0000Zc (Cutting Edge Count):6DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):6BMC (Tool Material):SteelCoolant Thru:Yes	$685.10 Quantity Spin Up Spin Down Quantity is Required
970-000-113 104-PM4-3.00-7-1.00-06	PATRIOT HP® 970 (PM4-3.00-7-1.00-06), PM4 Ø3" High Performance Indexable Face Mill (KAPR 45°), Coolant Thru UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.1770DCB (Connection Bore Diameter):1.0000DCmax (Cutting Diameter Maximum):3.4800DCmin (Cutting Diameter Minimum):3.0000KAPR (Entering Angle):45.0LF (Functional Length):2.0000Zc (Cutting Edge Count):7DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):7BMC (Tool Material):SteelCoolant Thru:Yes	$866.93 Quantity Spin Up Spin Down Quantity is Required
970-000-114 104-PM4-4.00-9-1.25-06	PATRIOT HP® 970 (PM4-4.00-9-1.25-06), PM4 Ø4" High Performance Indexable Face Mill (KAPR 45°), Coolant Thru UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.1770DCB (Connection Bore Diameter):1.2500DCmax (Cutting Diameter Maximum):4.4800DCmin (Cutting Diameter Minimum):4.0000KAPR (Entering Angle):45.0LF (Functional Length):2.0000Zc (Cutting Edge Count):9DCONms (Connection Diameter Machine Side):1.2500ZcEff (Cutting Edge Count Effective):9BMC (Tool Material):SteelCoolant Thru:Yes	$1,041.98 Quantity Spin Up Spin Down Quantity is Required

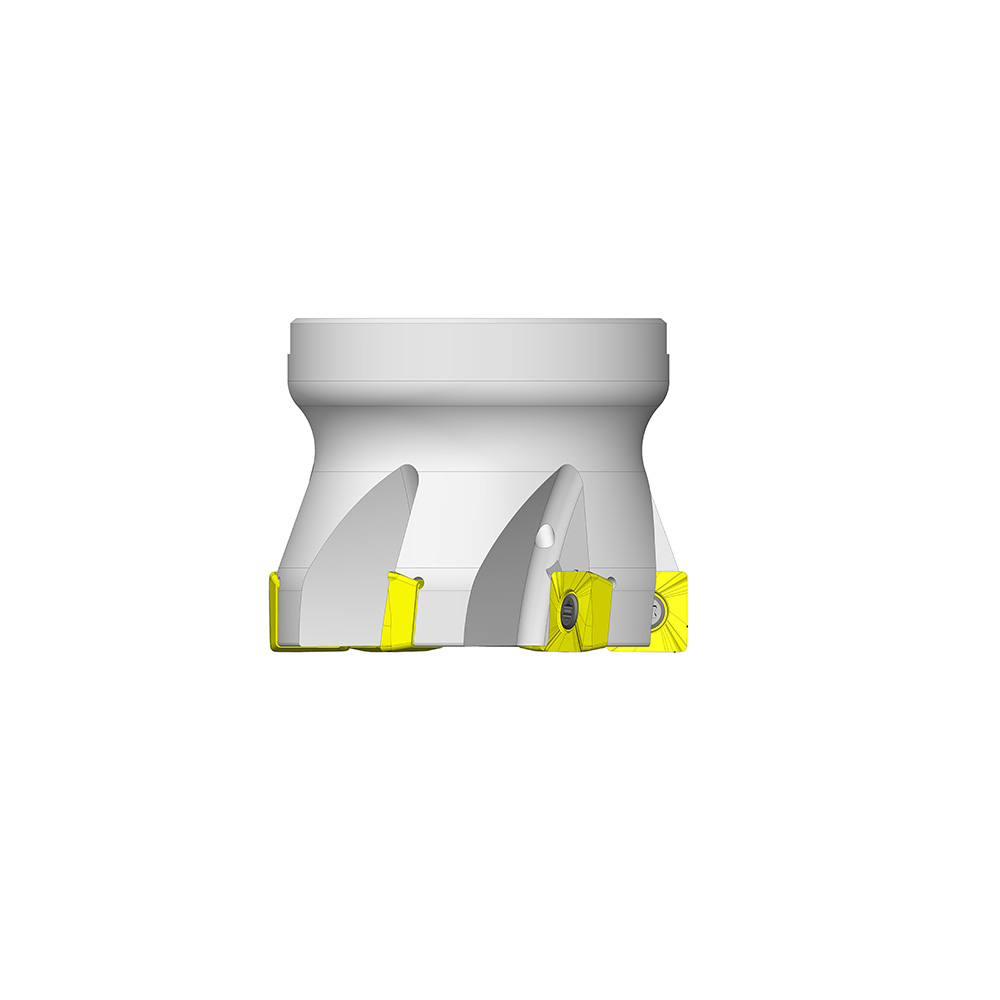

970-000-098 104-PM2-1.25-4-.500-09	PATRIOT HP® 970 (PM2-1.25-4-.500-09), PM2 Ø1-1/4" High Performance Indexable Face / Shoulder Mill (KAPR 90°), Coolant Thru UM (Unit of Measure):ImperialDC (Cut Diameter):1.2500APmx (Max Axial Depth of Cut):0.3140DCB (Connection Bore Diameter):0.5000KAPR (Entering Angle):90.0LF (Functional Length):1.7500RPmx (Max Ramping Angle):2.2000Zc (Cutting Edge Count):4DCONms (Connection Diameter Machine Side):0.5000ZcEff (Cutting Edge Count Effective):4BMC (Tool Material):SteelCoolant Thru:Yes	$456.19 Quantity Spin Up Spin Down Quantity is Required
970-000-099 104-PM2-1.50-4-.500-12	PATRIOT HP® 970 (PM2-1.50-4-.500-12), PM2 Ø1-1/2" High Performance Indexable Face / Shoulder Mill (KAPR 90°), Coolant Thru UM (Unit of Measure):ImperialDC (Cut Diameter):1.5000APmx (Max Axial Depth of Cut):0.3940DCB (Connection Bore Diameter):0.5000KAPR (Entering Angle):90.0LF (Functional Length):1.7500RPmx (Max Ramping Angle):0.7500Zc (Cutting Edge Count):4DCONms (Connection Diameter Machine Side):0.5000ZcEff (Cutting Edge Count Effective):4BMC (Tool Material):SteelCoolant Thru:Yes	$513.42 Quantity Spin Up Spin Down Quantity is Required
970-000-100 104-PM2-1.50-5-.500-09	PATRIOT HP® 970 (PM2-1.50-5-.500-09), PM2 Ø1-1/2" High Performance Indexable Face / Shoulder Mill (KAPR 90°), Coolant Thru UM (Unit of Measure):ImperialDC (Cut Diameter):1.5000APmx (Max Axial Depth of Cut):0.3140DCB (Connection Bore Diameter):0.5000KAPR (Entering Angle):90.0LF (Functional Length):1.7500RPmx (Max Ramping Angle):0.7500Zc (Cutting Edge Count):5DCONms (Connection Diameter Machine Side):0.5000ZcEff (Cutting Edge Count Effective):5BMC (Tool Material):SteelCoolant Thru:Yes	$513.42 Quantity Spin Up Spin Down Quantity is Required
970-000-101 104-PM2-2.00-5-.750-12	PATRIOT HP® 970 (PM2-2.00-5-.750-12), PM2 Ø2" High Performance Indexable Face / Shoulder Mill (KAPR 90°), Coolant Thru UM (Unit of Measure):ImperialDC (Cut Diameter):2.0000APmx (Max Axial Depth of Cut):0.3940DCB (Connection Bore Diameter):0.7500KAPR (Entering Angle):90.0LF (Functional Length):1.7500RPmx (Max Ramping Angle):0.4000Zc (Cutting Edge Count):5DCONms (Connection Diameter Machine Side):0.7500ZcEff (Cutting Edge Count Effective):5BMC (Tool Material):SteelCoolant Thru:Yes	$612.72 Quantity Spin Up Spin Down Quantity is Required
970-000-102 104-PM2-2.00-6-.750-09	PATRIOT HP® 970 (PM2-2.00-6-.750-09), PM2 Ø2" High Performance Indexable Face / Shoulder Mill (KAPR 90°), Coolant Thru UM (Unit of Measure):ImperialDC (Cut Diameter):2.0000APmx (Max Axial Depth of Cut):0.3140DCB (Connection Bore Diameter):0.7500KAPR (Entering Angle):90.0LF (Functional Length):1.7500RPmx (Max Ramping Angle):0.5000Zc (Cutting Edge Count):6DCONms (Connection Diameter Machine Side):0.7500ZcEff (Cutting Edge Count Effective):6BMC (Tool Material):SteelCoolant Thru:Yes	$612.72 Quantity Spin Up Spin Down Quantity is Required
970-000-103 104-PM2-2.50-6-1.00-12	PATRIOT HP® 970 (PM2-2.50-6-1.00-12), PM2 Ø2-1/2" High Performance Indexable Face / Shoulder Mill (KAPR 90°), Coolant Thru UM (Unit of Measure):ImperialDC (Cut Diameter):2.5000APmx (Max Axial Depth of Cut):0.3940DCB (Connection Bore Diameter):1.0000KAPR (Entering Angle):90.0LF (Functional Length):2.0000RPmx (Max Ramping Angle):0.3000Zc (Cutting Edge Count):6DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):6BMC (Tool Material):SteelCoolant Thru:Yes	$696.90 Quantity Spin Up Spin Down Quantity is Required
970-000-104 104-PM2-2.50-7-1.00-09	PATRIOT HP® 970 (PM2-2.50-7-1.00-09), PM2 Ø2-1/2" High Performance Indexable Face / Shoulder Mill (KAPR 90°), Coolant Thru UM (Unit of Measure):ImperialDC (Cut Diameter):2.5000APmx (Max Axial Depth of Cut):0.3140DCB (Connection Bore Diameter):1.0000KAPR (Entering Angle):90.0LF (Functional Length):2.0000RPmx (Max Ramping Angle):0.3500Zc (Cutting Edge Count):7DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):7BMC (Tool Material):SteelCoolant Thru:Yes	$696.90 Quantity Spin Up Spin Down Quantity is Required
970-000-105 104-PM2-3.00-7-1.00-12	PATRIOT HP® 970 (PM2-3.00-7-1.00-12), PM2 Ø3" High Performance Indexable Face / Shoulder Mill (KAPR 90°), Coolant Thru UM (Unit of Measure):ImperialDC (Cut Diameter):3.0000APmx (Max Axial Depth of Cut):0.3940DCB (Connection Bore Diameter):1.0000KAPR (Entering Angle):90.0LF (Functional Length):2.0000RPmx (Max Ramping Angle):0.2500Zc (Cutting Edge Count):7DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):7BMC (Tool Material):SteelCoolant Thru:Yes	$871.98 Quantity Spin Up Spin Down Quantity is Required
970-000-106 104-PM2-3.00-9-1.00-09	PATRIOT HP® 970 (PM2-3.00-9-1.00-09), PM2 Ø3" High Performance Indexable Face / Shoulder Mill (KAPR 90°), Coolant Thru UM (Unit of Measure):ImperialDC (Cut Diameter):3.0000APmx (Max Axial Depth of Cut):0.3140DCB (Connection Bore Diameter):1.0000KAPR (Entering Angle):90.0LF (Functional Length):2.0000RPmx (Max Ramping Angle):0.2500Zc (Cutting Edge Count):9DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):9BMC (Tool Material):SteelCoolant Thru:Yes	$871.98 Quantity Spin Up Spin Down Quantity is Required

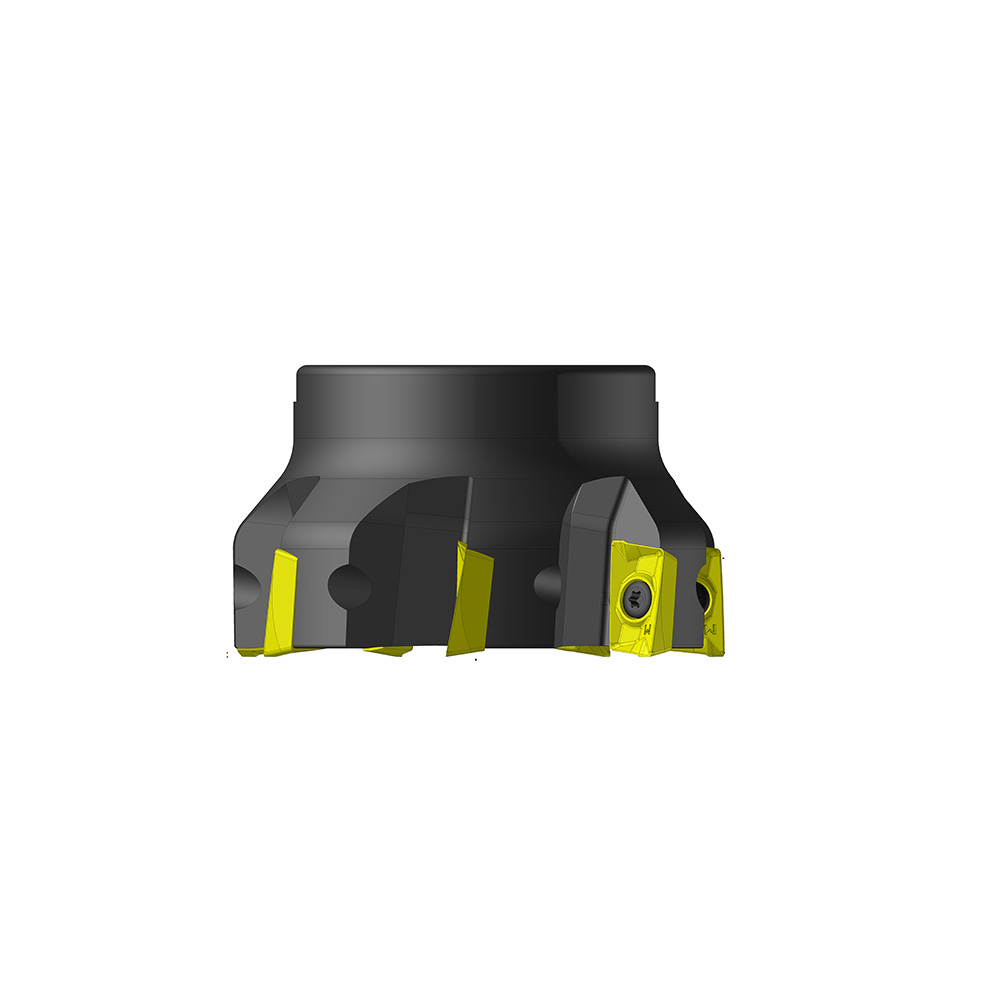

946-000-032 104-F90AP D2.00-5-.750-11	ULTRA-DEX® 946 (F90AP D2.00-5-.750-11), 90° Ø2" Indexable Face / Shoulder Mill, No Coolant UM (Unit of Measure):ImperialDC (Cut Diameter):2.0000APmx (Max Axial Depth of Cut):0.3150DCB (Connection Bore Diameter):0.7500KAPR (Entering Angle):95.0LF (Functional Length):1.5700Zc (Cutting Edge Count):5ZcEff (Cutting Edge Count Effective):5BMC (Tool Material):SteelCoolant Thru:No	$386.95 Quantity Spin Up Spin Down Quantity is Required
946-000-033 104-F90AP D2.00-5-.750-16	ULTRA-DEX® 946 (F90AP D2.00-5-.750-16), 90° Ø2" Indexable Face / Shoulder Mill, No Coolant UM (Unit of Measure):ImperialDC (Cut Diameter):2.0000APmx (Max Axial Depth of Cut):0.4720DCB (Connection Bore Diameter):0.7500KAPR (Entering Angle):95.0LF (Functional Length):1.5700Zc (Cutting Edge Count):5ZcEff (Cutting Edge Count Effective):5BMC (Tool Material):SteelCoolant Thru:No	$376.51 Quantity Spin Up Spin Down Quantity is Required
946-000-034 104-F90AP D2.50-5-1.00-16	ULTRA-DEX® 946 (F90AP D2.50-5-1.00-16), 90° Ø2-1/2" Indexable Face / Shoulder Mill, No Coolant UM (Unit of Measure):ImperialDC (Cut Diameter):2.5000APmx (Max Axial Depth of Cut):0.4720DCB (Connection Bore Diameter):1.0000KAPR (Entering Angle):95.0LF (Functional Length):1.7500Zc (Cutting Edge Count):5ZcEff (Cutting Edge Count Effective):5BMC (Tool Material):SteelCoolant Thru:No	$496.85 Quantity Spin Up Spin Down Quantity is Required
946-000-035 104-F90AP D2.50-7-1.00-11	ULTRA-DEX® 946 (F90AP D2.50-7-1.00-11), 90° Ø2-1/2" Indexable Face / Shoulder Mill, No Coolant UM (Unit of Measure):ImperialDC (Cut Diameter):2.5000APmx (Max Axial Depth of Cut):0.3150DCB (Connection Bore Diameter):1.0000KAPR (Entering Angle):95.0LF (Functional Length):1.7500Zc (Cutting Edge Count):7ZcEff (Cutting Edge Count Effective):7BMC (Tool Material):SteelCoolant Thru:No	$521.25 Quantity Spin Up Spin Down Quantity is Required
946-000-036 104-F90AP D3.00-5-1.00-16	ULTRA-DEX® 946 (F90AP D3.00-5-1.00-16), 90° Ø3" Indexable Face / Shoulder Mill, No Coolant UM (Unit of Measure):ImperialDC (Cut Diameter):3.0000APmx (Max Axial Depth of Cut):0.4720DCB (Connection Bore Diameter):1.0000KAPR (Entering Angle):95.0LF (Functional Length):1.7500Zc (Cutting Edge Count):5ZcEff (Cutting Edge Count Effective):5BMC (Tool Material):SteelCoolant Thru:No	$608.41 Quantity Spin Up Spin Down Quantity is Required
946-000-037 104-F90AP D3.00-7-1.00-16	ULTRA-DEX® 946 (F90AP D3.00-7-1.00-16), 90° Ø3" Indexable Face / Shoulder Mill, No Coolant UM (Unit of Measure):ImperialDC (Cut Diameter):3.0000APmx (Max Axial Depth of Cut):0.4720DCB (Connection Bore Diameter):1.0000KAPR (Entering Angle):95.0LF (Functional Length):1.7500Zc (Cutting Edge Count):7ZcEff (Cutting Edge Count Effective):7BMC (Tool Material):SteelCoolant Thru:No	$648.42 Quantity Spin Up Spin Down Quantity is Required
946-000-038 104-F90AP D3.00-8-1.00-11	ULTRA-DEX® 946 (F90AP D3.00-8-1.00-11), 90° Ø3" Indexable Face / Shoulder Mill, No Coolant UM (Unit of Measure):ImperialDC (Cut Diameter):3.0000APmx (Max Axial Depth of Cut):0.3150DCB (Connection Bore Diameter):1.0000KAPR (Entering Angle):95.0LF (Functional Length):1.7500Zc (Cutting Edge Count):8ZcEff (Cutting Edge Count Effective):8BMC (Tool Material):SteelCoolant Thru:No	$648.42 Quantity Spin Up Spin Down Quantity is Required
946-000-039 104-F90AP D4.00-7-1.25-16	ULTRA-DEX® 946 (F90AP D4.00-7-1.25-16), 90° Ø4" Indexable Face / Shoulder Mill, No Coolant UM (Unit of Measure):ImperialDC (Cut Diameter):4.0000APmx (Max Axial Depth of Cut):0.4720DCB (Connection Bore Diameter):1.2500KAPR (Entering Angle):95.0LF (Functional Length):2.0000Zc (Cutting Edge Count):7ZcEff (Cutting Edge Count Effective):7BMC (Tool Material):SteelCoolant Thru:No	$786.21 Quantity Spin Up Spin Down Quantity is Required

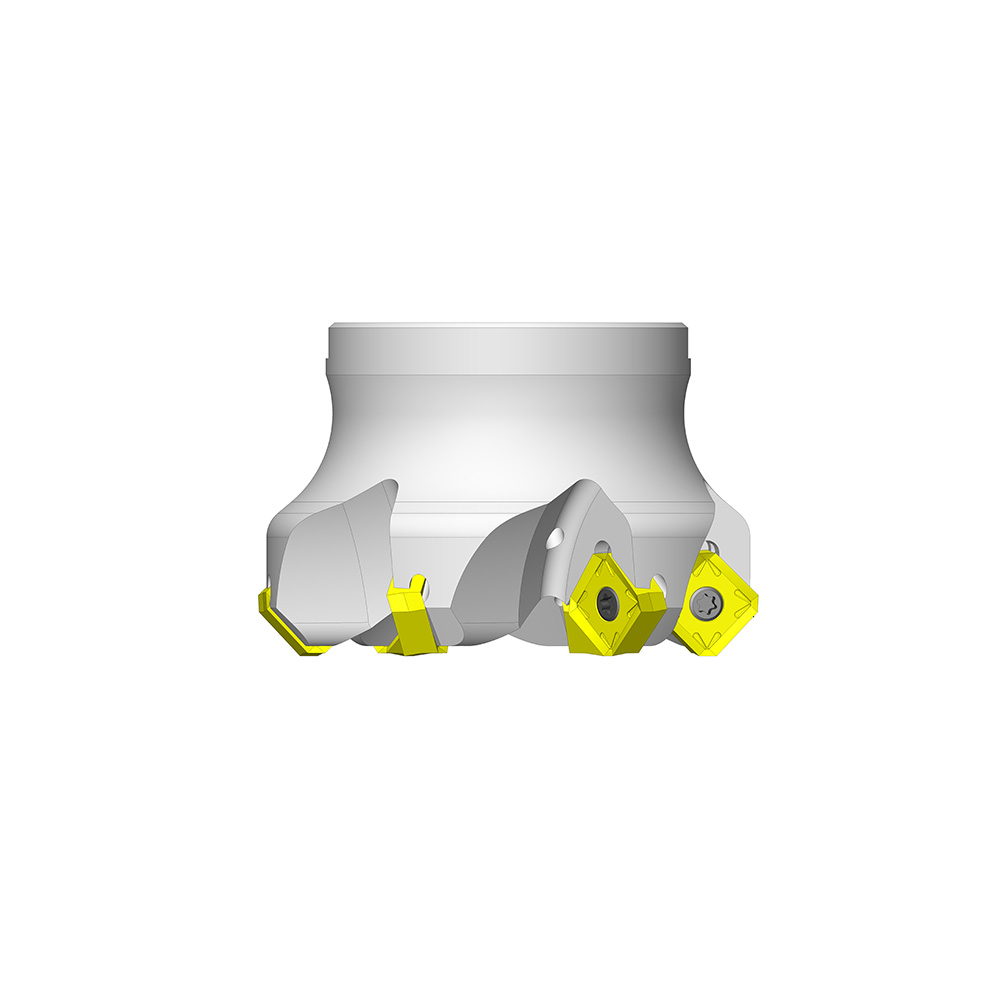

970-000-092 104-PM1-1.25-3-.500-12	PATRIOT HP® 970 (PM1-1.25-3-.500-12), PM1 Ø1-1/4" High Performance Indexable Face Mill (KAPR 45°), Coolant Thru UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.2360DCB (Connection Bore Diameter):0.5000DCmax (Cutting Diameter Maximum):1.7380DCmin (Cutting Diameter Minimum):1.2500KAPR (Entering Angle):45.0LF (Functional Length):1.7500Zc (Cutting Edge Count):3DCONms (Connection Diameter Machine Side):0.5000ZcEff (Cutting Edge Count Effective):3BMC (Tool Material):SteelCoolant Thru:Yes	$444.39 Quantity Spin Up Spin Down Quantity is Required
970-000-093 104-PM1-1.50-4-.500-12	PATRIOT HP® 970 (PM1-1.50-4-.500-12), PM1 Ø1-1/2" High Performance Indexable Face Mill (KAPR 45°), Coolant Thru UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.2360DCB (Connection Bore Diameter):0.5000DCmax (Cutting Diameter Maximum):1.9880DCmin (Cutting Diameter Minimum):1.5000KAPR (Entering Angle):45.0LF (Functional Length):1.7500Zc (Cutting Edge Count):4DCONms (Connection Diameter Machine Side):0.5000ZcEff (Cutting Edge Count Effective):4BMC (Tool Material):SteelCoolant Thru:Yes	$518.47 Quantity Spin Up Spin Down Quantity is Required
970-000-094 104-PM1-2.00-5-.750-12	PATRIOT HP® 970 (PM1-2.00-5-.750-12), PM1 Ø2" High Performance Indexable Face Mill (KAPR 45°), Coolant Thru UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.2360DCB (Connection Bore Diameter):0.7500DCmax (Cutting Diameter Maximum):2.4880DCmin (Cutting Diameter Minimum):2.0000KAPR (Entering Angle):45.0LF (Functional Length):1.7500Zc (Cutting Edge Count):5DCONms (Connection Diameter Machine Side):0.7500ZcEff (Cutting Edge Count Effective):5BMC (Tool Material):SteelCoolant Thru:Yes	$575.70 Quantity Spin Up Spin Down Quantity is Required
970-000-095 104-PM1-2.50-6-1.00-12	PATRIOT HP® 970 (PM1-2.50-6-1.00-12), PM1 Ø2-1/2" High Performance Indexable Face Mill (KAPR 45°), Coolant Thru UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.2360DCB (Connection Bore Diameter):1.0000DCmax (Cutting Diameter Maximum):2.9880DCmin (Cutting Diameter Minimum):2.5000KAPR (Entering Angle):45.0LF (Functional Length):2.0000Zc (Cutting Edge Count):6DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):6BMC (Tool Material):SteelCoolant Thru:Yes	$685.10 Quantity Spin Up Spin Down Quantity is Required
970-000-096 104-PM1-3.00-8-1.00-12	PATRIOT HP® 970 (PM1-3.00-8-1.00-12), PM1 Ø3" High Performance Indexable Face Mill (KAPR 45°), Coolant Thru UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.2360DCB (Connection Bore Diameter):1.0000DCmax (Cutting Diameter Maximum):3.4880DCmin (Cutting Diameter Minimum):3.0000KAPR (Entering Angle):45.0LF (Functional Length):2.0000Zc (Cutting Edge Count):8DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):8BMC (Tool Material):SteelCoolant Thru:Yes	$883.74 Quantity Spin Up Spin Down Quantity is Required
970-000-097 104-PM1-4.00-10-1.25-12	PATRIOT HP® 970 (PM1-4.00-10-1.25-12), PM1 Ø4" High Performance Indexable Face Mill (KAPR 45°), Coolant Thru UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.2360DCB (Connection Bore Diameter):1.2500DCmax (Cutting Diameter Maximum):4.4880DCmin (Cutting Diameter Minimum):4.0000KAPR (Entering Angle):45.0LF (Functional Length):2.0000Zc (Cutting Edge Count):10ZcEff (Cutting Edge Count Effective):10BMC (Tool Material):SteelCoolant Thru:Yes	$1,079.01 Quantity Spin Up Spin Down Quantity is Required
