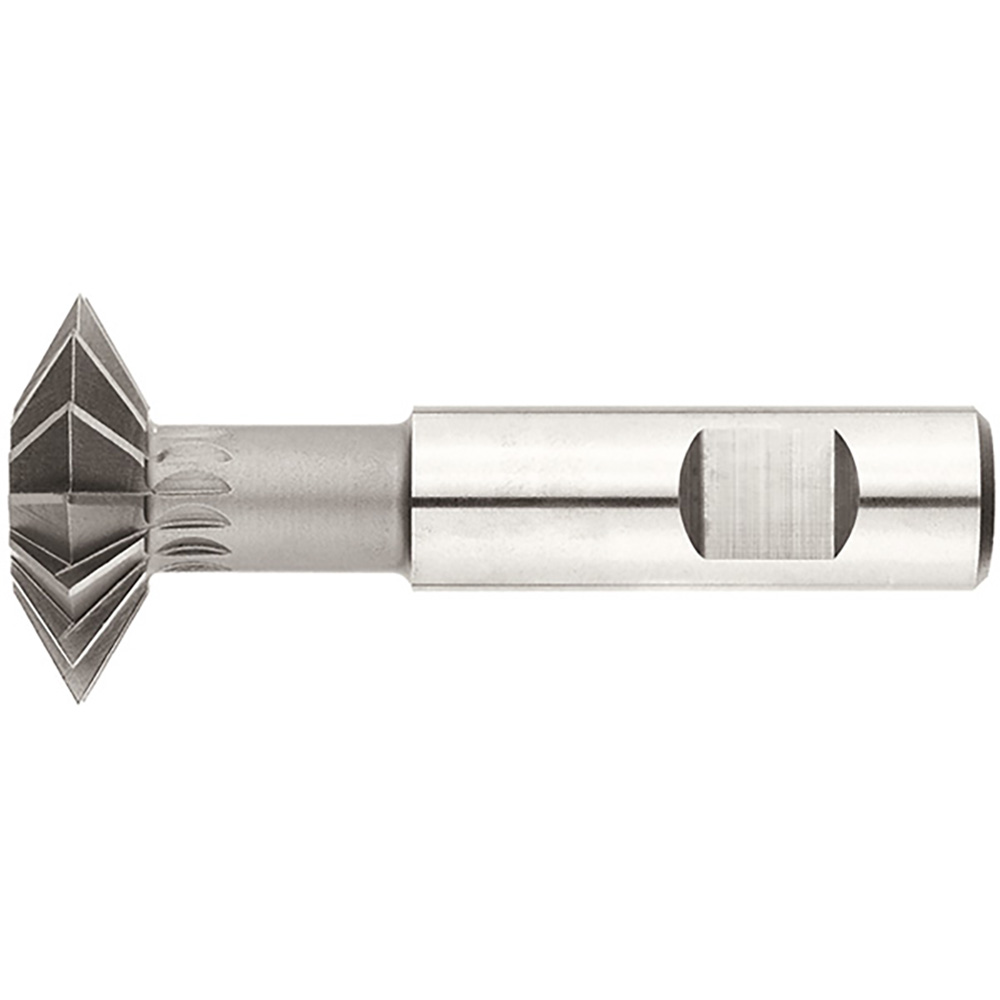

Double Angle, Shank

Filter

Double Angle, Shank. About this grid.
Use spreadsheet functions to search the grid:
  • Click the column title to sort the rows. Sorting may be done on multiple columns in either ascending or descending order.
  • Right-click on the column heading to show a context menu. The menu allows you to sort or clear the sorting for a column.
  • The list may be filtered using the filter function within the context menu. The filter may be cleared by pressing the "Clear Filter" button.
Once you have found the product your interested in:
  • Enter the quantity you would like to purchase and your desired ship date. Press the “Check Price And Availability” graphic. The system will look up your specific pricing for that quantity and a projected ship date based on our inventory and production capacity.
  • Press the “Add This to My Cart” graphic to place the quantity of the item in your shopping cart, along with the requested ship date.
Part Number Purchase

924-000-053
105-12490

KEO® 924 HSS Double Angle Cutter, Ø2 x 90° x 1/2, 3/4 Shank, 16 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.2500A (Angle):90.0CDX (Max Depth of Cut):0.2500CW (Cutting Width):0.5000L (Overall Length):3.1250LF (Functional Length):1.0938LS (Length of Shank):2.0313Zc (Cutting Edge Count):16DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $251.56

Quantity
Spin UpSpin Down
Quantity is Required
924-000-056
105-12491

KEO® 924 HSS Double Angle Cutter, Ø2 x 90° x 1/2, 3/4 Shank, 16 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.2500A (Angle):90.0CDX (Max Depth of Cut):0.2500CW (Cutting Width):0.5000L (Overall Length):3.1250LF (Functional Length):1.0938LS (Length of Shank):2.0313Zc (Cutting Edge Count):16DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $288.01

Quantity
Spin UpSpin Down
Quantity is Required
924-000-025
105-12492

KEO® 924 HSS Double Angle Cutter, Ø2 x 60° x 1/2, 3/4 Shank, 16 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.2500A (Angle):60.0CDX (Max Depth of Cut):0.4330CW (Cutting Width):0.5000L (Overall Length):3.1250LF (Functional Length):1.0938LS (Length of Shank):2.0313Zc (Cutting Edge Count):16DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $251.56

Quantity
Spin UpSpin Down
Quantity is Required
924-000-028
105-12493

KEO® 924 HSS Double Angle Cutter, Ø2 x 60° x 1/2, 3/4 Shank, 16 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.2500A (Angle):60.0CDX (Max Depth of Cut):0.4330CW (Cutting Width):0.5000L (Overall Length):3.1250LF (Functional Length):1.0938LS (Length of Shank):2.0313Zc (Cutting Edge Count):16DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $288.01

Quantity
Spin UpSpin Down
Quantity is Required
924-000-001
105-72800

KEO® 924 HSS Double Angle Cutter, Ø1 x 60° x 3/16, 3/8 Shank, 10 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):0.7500A (Angle):60.0CDX (Max Depth of Cut):0.1624CW (Cutting Width):0.1875L (Overall Length):2.3750LF (Functional Length):0.8125LS (Length of Shank):1.5625Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):0.3750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.3750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $65.30

Quantity
Spin UpSpin Down
Quantity is Required
924-000-005
105-72801

KEO® 924 HSS Double Angle Cutter, Ø1 x 60° x 5/16, 1/2 Shank, 12 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.0000A (Angle):60.0CDX (Max Depth of Cut):0.2706CW (Cutting Width):0.3125L (Overall Length):2.8438LF (Functional Length):1.0625LS (Length of Shank):1.7813Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):0.5000ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.5000 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $104.29

Quantity
Spin UpSpin Down
Quantity is Required
924-000-009
105-72802

KEO® 924 HSS Double Angle Cutter, Ø1 x 60° x 7/16, 5/8 Shank, 14 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.3750A (Angle):60.0CDX (Max Depth of Cut):0.3789CW (Cutting Width):0.4375L (Overall Length):3.2188LF (Functional Length):1.3125LS (Length of Shank):1.9063Zc (Cutting Edge Count):14DCONms (Connection Diameter Machine Side):0.6250ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.6250 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $139.08

Quantity
Spin UpSpin Down
Quantity is Required
924-000-013
105-72803

KEO® 924 HSS Double Angle Cutter, Ø2 x 60° x 1/2, 5/8 Shank, 14 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.5000A (Angle):60.0CDX (Max Depth of Cut):0.4330CW (Cutting Width):0.5000L (Overall Length):3.3750LF (Functional Length):1.3750LS (Length of Shank):2.0000Zc (Cutting Edge Count):14DCONms (Connection Diameter Machine Side):0.6250ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.6250 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $182.53

Quantity
Spin UpSpin Down
Quantity is Required
924-000-017
105-72804

KEO® 924 HSS Double Angle Cutter, Ø2 x 60° x 5/8, 3/4 Shank, 16 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.8750A (Angle):60.0CDX (Max Depth of Cut):0.5413CW (Cutting Width):0.6250L (Overall Length):3.7813LF (Functional Length):1.7500LS (Length of Shank):2.0313Zc (Cutting Edge Count):16DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $211.53

Quantity
Spin UpSpin Down
Quantity is Required
924-000-021
105-72805

KEO® 924 HSS Double Angle Cutter, Ø2 x 60° x 3/4, 7/8 Shank, 18 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.2500A (Angle):60.0CDX (Max Depth of Cut):0.6495CW (Cutting Width):0.7500L (Overall Length):4.1563LF (Functional Length):2.1250LS (Length of Shank):2.0313Zc (Cutting Edge Count):18DCONms (Connection Diameter Machine Side):0.8750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.8750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $309.89

Quantity
Spin UpSpin Down
Quantity is Required
924-000-029
105-72820

KEO® 924 HSS Double Angle Cutter, Ø1 x 90° x 1/4, 3/8 Shank, 10 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):0.7500A (Angle):90.0CDX (Max Depth of Cut):0.1250CW (Cutting Width):0.2500L (Overall Length):2.4375LF (Functional Length):0.8750LS (Length of Shank):1.5625Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):0.3750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.3750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $65.30

Quantity
Spin UpSpin Down
Quantity is Required
924-000-033
105-72821

KEO® 924 HSS Double Angle Cutter, Ø1 x 90° x 3/8, 1/2 Shank, 12 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.0000A (Angle):90.0CDX (Max Depth of Cut):0.1875CW (Cutting Width):0.3750L (Overall Length):2.9063LF (Functional Length):1.1250LS (Length of Shank):1.7813Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):0.5000ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.5000 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $104.29

Quantity
Spin UpSpin Down
Quantity is Required
924-000-037
105-72822

KEO® 924 HSS Double Angle Cutter, Ø1 x 90° x 1/2, 5/8 Shank, 14 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.3750A (Angle):90.0CDX (Max Depth of Cut):0.2500CW (Cutting Width):0.5000L (Overall Length):3.2813LF (Functional Length):1.3750LS (Length of Shank):1.9063Zc (Cutting Edge Count):14DCONms (Connection Diameter Machine Side):0.6250ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.6250 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $139.08

Quantity
Spin UpSpin Down
Quantity is Required
924-000-041
105-72823

KEO® 924 HSS Double Angle Cutter, Ø2 x 90° x 9/16, 5/8 Shank, 14 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.5000A (Angle):90.0CDX (Max Depth of Cut):0.2813CW (Cutting Width):0.5625L (Overall Length):3.4375LF (Functional Length):1.4375LS (Length of Shank):2.0000Zc (Cutting Edge Count):14DCONms (Connection Diameter Machine Side):0.6250ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.6250 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $182.53

Quantity
Spin UpSpin Down
Quantity is Required
924-000-045
105-72824

KEO® 924 HSS Double Angle Cutter, Ø2 x 90° x 5/8, 3/4 Shank, 16 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.8750A (Angle):90.0CDX (Max Depth of Cut):0.3125CW (Cutting Width):0.6250L (Overall Length):3.7813LF (Functional Length):1.7500LS (Length of Shank):2.0313Zc (Cutting Edge Count):16DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $211.53

Quantity
Spin UpSpin Down
Quantity is Required
924-000-049
105-72825

KEO® 924 HSS Double Angle Cutter, Ø2 x 90° x 3/4, 7/8 Shank, 18 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.2500A (Angle):90.0CDX (Max Depth of Cut):0.3750CW (Cutting Width):0.7500L (Overall Length):4.1563LF (Functional Length):2.1250LS (Length of Shank):2.0313Zc (Cutting Edge Count):18DCONms (Connection Diameter Machine Side):0.8750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.8750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $309.89

Quantity
Spin UpSpin Down
Quantity is Required
924-000-004
105-72970

KEO® 924 HSS Double Angle Cutter, Ø1 x 60° x 3/16, 3/8 Shank, 10 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):0.7500A (Angle):60.0CDX (Max Depth of Cut):0.1624CW (Cutting Width):0.1875L (Overall Length):2.3750LF (Functional Length):0.8125LS (Length of Shank):1.5625Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):0.3750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.3750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $74.68

Quantity
Spin UpSpin Down
Quantity is Required
924-000-008
105-72971

KEO® 924 HSS Double Angle Cutter, Ø1 x 60° x 5/16, 1/2 Shank, 12 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.0000A (Angle):60.0CDX (Max Depth of Cut):0.2706CW (Cutting Width):0.3125L (Overall Length):2.8438LF (Functional Length):1.0625LS (Length of Shank):1.7813Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):0.5000ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.5000 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $119.37

Quantity
Spin UpSpin Down
Quantity is Required
924-000-012
105-72972

KEO® 924 HSS Double Angle Cutter, Ø1 x 60° x 7/16, 5/8 Shank, 14 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.3750A (Angle):60.0CDX (Max Depth of Cut):0.3789CW (Cutting Width):0.4375L (Overall Length):3.2188LF (Functional Length):1.3125LS (Length of Shank):1.9063Zc (Cutting Edge Count):14DCONms (Connection Diameter Machine Side):0.6250ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.6250 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $159.13

Quantity
Spin UpSpin Down
Quantity is Required
924-000-016
105-72973

KEO® 924 HSS Double Angle Cutter, Ø2 x 60° x 1/2, 5/8 Shank, 14 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.5000A (Angle):60.0CDX (Max Depth of Cut):0.4330CW (Cutting Width):0.5000L (Overall Length):3.3750LF (Functional Length):1.3750LS (Length of Shank):2.0000Zc (Cutting Edge Count):14DCONms (Connection Diameter Machine Side):0.6250ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.6250 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $208.91

Quantity
Spin UpSpin Down
Quantity is Required
924-000-020
105-72974

KEO® 924 HSS Double Angle Cutter, Ø2 x 60° x 5/8, 3/4 Shank, 16 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.8750A (Angle):60.0CDX (Max Depth of Cut):0.5413CW (Cutting Width):0.6250L (Overall Length):3.7813LF (Functional Length):1.7500LS (Length of Shank):2.0313Zc (Cutting Edge Count):16DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $242.26

Quantity
Spin UpSpin Down
Quantity is Required
924-000-024
105-72975

KEO® 924 HSS Double Angle Cutter, Ø2 x 60° x 3/4, 7/8 Shank, 18 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.2500A (Angle):60.0CDX (Max Depth of Cut):0.6495CW (Cutting Width):0.7500L (Overall Length):4.1563LF (Functional Length):2.1250LS (Length of Shank):2.0313Zc (Cutting Edge Count):18DCONms (Connection Diameter Machine Side):0.8750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.8750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $354.58

Quantity
Spin UpSpin Down
Quantity is Required
924-000-032
105-72980

KEO® 924 HSS Double Angle Cutter, Ø1 x 90° x 1/4, 3/8 Shank, 10 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):0.7500A (Angle):90.0CDX (Max Depth of Cut):0.1250CW (Cutting Width):0.2500L (Overall Length):2.4375LF (Functional Length):0.8750LS (Length of Shank):1.5625Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):0.3750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.3750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $74.68

Quantity
Spin UpSpin Down
Quantity is Required
924-000-036
105-72981

KEO® 924 HSS Double Angle Cutter, Ø1 x 90° x 3/8, 1/2 Shank, 12 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.0000A (Angle):90.0CDX (Max Depth of Cut):0.1875CW (Cutting Width):0.3750L (Overall Length):2.9063LF (Functional Length):1.1250LS (Length of Shank):1.7813Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):0.5000ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.5000 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $119.37

Quantity
Spin UpSpin Down
Quantity is Required
924-000-040
105-72982

KEO® 924 HSS Double Angle Cutter, Ø1 x 90° x 1/2, 5/8 Shank, 14 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.3750A (Angle):90.0CDX (Max Depth of Cut):0.2500CW (Cutting Width):0.5000L (Overall Length):3.2813LF (Functional Length):1.3750LS (Length of Shank):1.9063Zc (Cutting Edge Count):14DCONms (Connection Diameter Machine Side):0.6250ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.6250 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $159.13

Quantity
Spin UpSpin Down
Quantity is Required
924-000-044
105-72983

KEO® 924 HSS Double Angle Cutter, Ø2 x 90° x 9/16, 5/8 Shank, 14 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.5000A (Angle):90.0CDX (Max Depth of Cut):0.2813CW (Cutting Width):0.5625L (Overall Length):3.4375LF (Functional Length):1.4375LS (Length of Shank):2.0000Zc (Cutting Edge Count):14DCONms (Connection Diameter Machine Side):0.6250ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.6250 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $208.91

Quantity
Spin UpSpin Down
Quantity is Required
924-000-048
105-72984

KEO® 924 HSS Double Angle Cutter, Ø2 x 90° x 5/8, 3/4 Shank, 16 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.8750A (Angle):90.0CDX (Max Depth of Cut):0.3125CW (Cutting Width):0.6250L (Overall Length):3.7813LF (Functional Length):1.7500LS (Length of Shank):2.0313Zc (Cutting Edge Count):16DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $242.26

Quantity
Spin UpSpin Down
Quantity is Required
924-000-052
105-72985

KEO® 924 HSS Double Angle Cutter, Ø2 x 90° x 3/4, 7/8 Shank, 18 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.2500A (Angle):90.0CDX (Max Depth of Cut):0.3750CW (Cutting Width):0.7500L (Overall Length):4.1563LF (Functional Length):2.1250LS (Length of Shank):2.0313Zc (Cutting Edge Count):18DCONms (Connection Diameter Machine Side):0.8750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.8750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $354.58

Quantity
Spin UpSpin Down
Quantity is Required
924-000-057
105-77587

KEO® 924 HSS Double Angle Cutter, Ø1 x 60° x 3/16, 3/8 Shank, 10 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):0.7500A (Angle):60.0CDX (Max Depth of Cut):0.1624CW (Cutting Width):0.1875L (Overall Length):2.3750LF (Functional Length):0.8125LS (Length of Shank):1.5625Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):0.3750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.3750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $87.61

Quantity
Spin UpSpin Down
Quantity is Required
924-000-058
105-77588

KEO® 924 HSS Double Angle Cutter, Ø1 x 60° x 5/16, 1/2 Shank, 12 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.0000A (Angle):60.0CDX (Max Depth of Cut):0.2706CW (Cutting Width):0.3125L (Overall Length):2.8438LF (Functional Length):1.0625LS (Length of Shank):1.7813Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):0.5000ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.5000 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $140.07

Quantity
Spin UpSpin Down
Quantity is Required
924-000-059
105-77589

KEO® 924 HSS Double Angle Cutter, Ø1 x 60° x 7/16, 5/8 Shank, 14 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.3750A (Angle):60.0CDX (Max Depth of Cut):0.3789CW (Cutting Width):0.4375L (Overall Length):3.2188LF (Functional Length):1.3125LS (Length of Shank):1.9063Zc (Cutting Edge Count):14DCONms (Connection Diameter Machine Side):0.6250ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.6250 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $186.73

Quantity
Spin UpSpin Down
Quantity is Required
924-000-060
105-77590

KEO® 924 HSS Double Angle Cutter, Ø2 x 60° x 1/2, 5/8 Shank, 14 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.5000A (Angle):60.0CDX (Max Depth of Cut):0.4330CW (Cutting Width):0.5000L (Overall Length):3.3750LF (Functional Length):1.3750LS (Length of Shank):2.0000Zc (Cutting Edge Count):14DCONms (Connection Diameter Machine Side):0.6250ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.6250 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $245.27

Quantity
Spin UpSpin Down
Quantity is Required
924-000-061
105-77591

KEO® 924 HSS Double Angle Cutter, Ø2 x 60° x 5/8, 3/4 Shank, 16 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.8750A (Angle):60.0CDX (Max Depth of Cut):0.5413CW (Cutting Width):0.6250L (Overall Length):3.7813LF (Functional Length):1.7500LS (Length of Shank):2.0313Zc (Cutting Edge Count):16DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $284.05

Quantity
Spin UpSpin Down
Quantity is Required
924-000-062
105-77592

KEO® 924 HSS Double Angle Cutter, Ø2 x 60° x 3/4, 7/8 Shank, 18 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.2500A (Angle):60.0CDX (Max Depth of Cut):0.6495CW (Cutting Width):0.7500L (Overall Length):4.1563LF (Functional Length):2.1250LS (Length of Shank):2.0313Zc (Cutting Edge Count):18DCONms (Connection Diameter Machine Side):0.8750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.8750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $416.23

Quantity
Spin UpSpin Down
Quantity is Required
924-000-063
105-77593

KEO® 924 HSS Double Angle Cutter, Ø2 x 60° x 1/2, 3/4 Shank, 16 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.2500A (Angle):60.0CDX (Max Depth of Cut):0.4330CW (Cutting Width):0.5000L (Overall Length):3.1250LF (Functional Length):1.0938LS (Length of Shank):2.0313Zc (Cutting Edge Count):16DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $337.71

Quantity
Spin UpSpin Down
Quantity is Required
924-000-064
105-77594

KEO® 924 HSS Double Angle Cutter, Ø1 x 90° x 1/4, 3/8 Shank, 10 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):0.7500A (Angle):90.0CDX (Max Depth of Cut):0.1250CW (Cutting Width):0.2500L (Overall Length):2.4375LF (Functional Length):0.8750LS (Length of Shank):1.5625Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):0.3750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.3750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $87.61

Quantity
Spin UpSpin Down
Quantity is Required
924-000-065
105-77595

KEO® 924 HSS Double Angle Cutter, Ø1 x 90° x 3/8, 1/2 Shank, 12 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.0000A (Angle):90.0CDX (Max Depth of Cut):0.1875CW (Cutting Width):0.3750L (Overall Length):2.9063LF (Functional Length):1.1250LS (Length of Shank):1.7813Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):0.5000ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.5000 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $140.07

Quantity
Spin UpSpin Down
Quantity is Required
924-000-066
105-77596

KEO® 924 HSS Double Angle Cutter, Ø1 x 90° x 1/2, 5/8 Shank, 14 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.3750A (Angle):90.0CDX (Max Depth of Cut):0.2500CW (Cutting Width):0.5000L (Overall Length):3.2813LF (Functional Length):1.3750LS (Length of Shank):1.9063Zc (Cutting Edge Count):14DCONms (Connection Diameter Machine Side):0.6250ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.6250 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $186.73

Quantity
Spin UpSpin Down
Quantity is Required
924-000-067
105-77597

KEO® 924 HSS Double Angle Cutter, Ø2 x 90° x 9/16, 5/8 Shank, 14 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.5000A (Angle):90.0CDX (Max Depth of Cut):0.2813CW (Cutting Width):0.5625L (Overall Length):3.4375LF (Functional Length):1.4375LS (Length of Shank):2.0000Zc (Cutting Edge Count):14DCONms (Connection Diameter Machine Side):0.6250ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.6250 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $245.27

Quantity
Spin UpSpin Down
Quantity is Required
924-000-068
105-77598

KEO® 924 HSS Double Angle Cutter, Ø2 x 90° x 5/8, 3/4 Shank, 16 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.8750A (Angle):90.0CDX (Max Depth of Cut):0.3125CW (Cutting Width):0.6250L (Overall Length):3.7813LF (Functional Length):1.7500LS (Length of Shank):2.0313Zc (Cutting Edge Count):16DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $284.05

Quantity
Spin UpSpin Down
Quantity is Required
924-000-069
105-77599

KEO® 924 HSS Double Angle Cutter, Ø2 x 90° x 3/4, 7/8 Shank, 18 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.2500A (Angle):90.0CDX (Max Depth of Cut):0.3750CW (Cutting Width):0.7500L (Overall Length):4.1563LF (Functional Length):2.1250LS (Length of Shank):2.0313Zc (Cutting Edge Count):18DCONms (Connection Diameter Machine Side):0.8750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.8750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $416.23

Quantity
Spin UpSpin Down
Quantity is Required
924-000-070
105-77600

KEO® 924 HSS Double Angle Cutter, Ø2 x 90° x 1/2, 3/4 Shank, 16 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.2500A (Angle):90.0CDX (Max Depth of Cut):0.2500CW (Cutting Width):0.5000L (Overall Length):3.1250LF (Functional Length):1.0938LS (Length of Shank):2.0313Zc (Cutting Edge Count):16DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $337.71

Quantity
Spin UpSpin Down
Quantity is Required
  • No Filter, (blank)
  • Contains, (xxx) or ("xxx")
  • Starts With, (xxx*)
  • Ends With, (*xxx)
  • Equal To, (=xxx)
  • Greater Than Or Equal To, (>=xxx)
  • Less Than Or Equal To, (<=xxx)
  • Between, (xxx yyy)
  • Sort Ascending
  • Sort Descending
  • Clear Sorting
  • Filter
      • No Filter, (blank)
      • Contains, (xxx) or ("xxx")
      • Starts With, (xxx*)
      • Ends With, (*xxx)
      • Equal To, (=xxx)
      • Greater Than Or Equal To, (>=xxx)
      • Less Than Or Equal To, (<=xxx)
      • No Filter, (blank)
      • Contains, (xxx) or ("xxx")
      • Starts With, (xxx*)
      • Ends With, (*xxx)
      • Equal To, (=xxx)
      • Greater Than Or Equal To, (>=xxx)
      • Less Than Or Equal To, (<=xxx)
June 2026
June 2026
31123456
78910111213
14151617181920
21222324252627
2829301234
567891011
Top

Your Complete Tool Making Authority ®

ARCH Cutting Tools Logo
  • (888) 390-2025
  • Standard Tools
  • Special Tools
  • Services
  • My Account
  • Contact Us
  • Find a Distributor
© 2026 ARCH Cutting Tools | All Rights Reserved
  • Privacy Policy
  • CCPA Request
  • Sitemap
  • Machine Readable Files
Loading...
