Endmill, Indexable

Part Number		Purchase
Endmill, Indexable. About this grid. Use spreadsheet functions to search the grid: Click the column title to sort the rows. Sorting may be done on multiple columns in either ascending or descending order. Right-click on the column heading to show a context menu. The menu allows you to sort or clear the sorting for a column. The list may be filtered using the filter function within the context menu. The filter may be cleared by pressing the "Clear Filter" button. Once you have found the product your interested in: Enter the quantity you would like to purchase and your desired ship date. Press the “Check Price And Availability” graphic. The system will look up your specific pricing for that quantity and a projected ship date based on our inventory and production capacity. Press the “Add This to My Cart” graphic to place the quantity of the item in your shopping cart, along with the requested ship date.

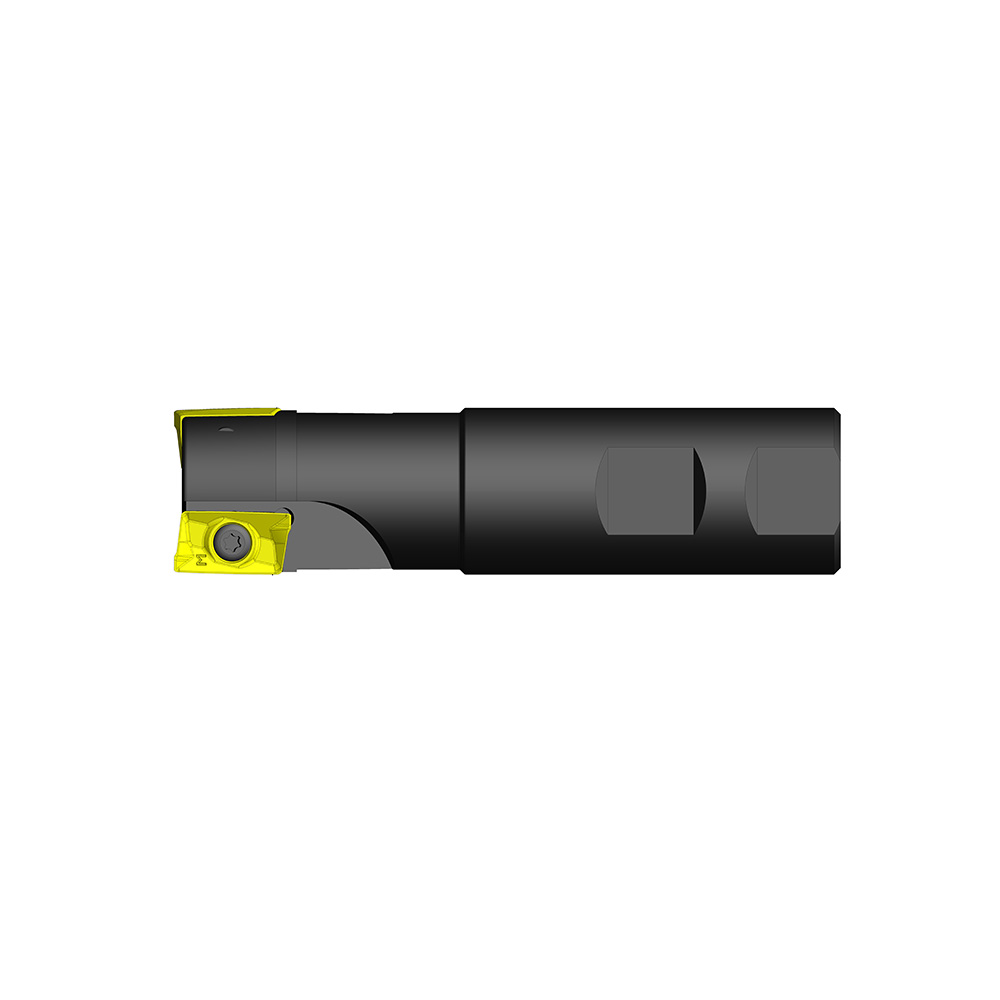

946-000-001 104-E90AP D.500-1-W.500-11	ULTRA-DEX® 946 (E90AP D.500-1-W.500-11), 90° Ø1/2" Indexable End Mill, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.3150BD (Body Diameter):0.4550KAPR (Entering Angle):90.0LF (Functional Length):3.3750LU (Usable Length):0.9750RPmx (Max Ramping Angle):10.0000Zc (Cutting Edge Count):1DCONms (Connection Diameter Machine Side):0.5000ZcEff (Cutting Edge Count Effective):1ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.5000 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$186.59 Quantity Spin Up Spin Down Quantity is Required
946-000-002 104-E90AP D.625-2-W.625-11	ULTRA-DEX® 946 (E90AP D.625-2-W.625-11), 90° Ø5/8" Indexable End Mill, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.3150BD (Body Diameter):0.5800KAPR (Entering Angle):90.0LF (Functional Length):3.3750LU (Usable Length):0.9750RPmx (Max Ramping Angle):10.0000Zc (Cutting Edge Count):2DCONms (Connection Diameter Machine Side):0.6250ZcEff (Cutting Edge Count Effective):2ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.6250 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$186.59 Quantity Spin Up Spin Down Quantity is Required
946-000-003 104-E90AP D.750-2-W.750-11	ULTRA-DEX® 946 (E90AP D.750-2-W.750-11), 90° Ø3/4" Indexable End Mill, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.3150BD (Body Diameter):0.7050KAPR (Entering Angle):90.0LF (Functional Length):3.3750LU (Usable Length):0.9750RPmx (Max Ramping Angle):5.0000Zc (Cutting Edge Count):2DCONms (Connection Diameter Machine Side):0.7500ZcEff (Cutting Edge Count Effective):2ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$207.49 Quantity Spin Up Spin Down Quantity is Required
946-000-004 104-E90AP D.750-2-W.750-11-C	ULTRA-DEX® 946 (E90AP D.750-2-W.750-11-C), 90° Ø3/4" Indexable End Mill, Coolant Thru UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.3150BD (Body Diameter):0.7050KAPR (Entering Angle):90.0LF (Functional Length):3.3750LU (Usable Length):0.9750RPmx (Max Ramping Angle):5.0000Zc (Cutting Edge Count):2DCONms (Connection Diameter Machine Side):0.7500ZcEff (Cutting Edge Count Effective):2ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:Yes	$238.88 Quantity Spin Up Spin Down Quantity is Required
946-000-005 104-E90AP D.750-3-W.750-11	ULTRA-DEX® 946 (E90AP D.750-3-W.750-11), 90° Ø3/4" Indexable End Mill, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.3150BD (Body Diameter):0.7050KAPR (Entering Angle):90.0LF (Functional Length):3.3750LU (Usable Length):0.9750RPmx (Max Ramping Angle):5.0000Zc (Cutting Edge Count):3DCONms (Connection Diameter Machine Side):0.7500ZcEff (Cutting Edge Count Effective):3ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$249.33 Quantity Spin Up Spin Down Quantity is Required
946-000-006 104-E90AP D.750-3-W.750-11-C	ULTRA-DEX® 946 (E90AP D.750-3-W.750-11-C), 90° Ø3/4" Indexable End Mill, Coolant Thru UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.3150BD (Body Diameter):0.7050KAPR (Entering Angle):90.0LF (Functional Length):3.3750LU (Usable Length):0.9750RPmx (Max Ramping Angle):5.0000Zc (Cutting Edge Count):3DCONms (Connection Diameter Machine Side):0.7500ZcEff (Cutting Edge Count Effective):3ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:Yes	$280.72 Quantity Spin Up Spin Down Quantity is Required
946-000-007 104-E90AP D.750-3-W.750-6-11	ULTRA-DEX® 946 (E90AP D.750-3-W.750-6-11), 90° Ø3/4" Indexable End Mill, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.3150BD (Body Diameter):0.7050KAPR (Entering Angle):90.0LF (Functional Length):6.0000LU (Usable Length):3.0000RPmx (Max Ramping Angle):5.0000Zc (Cutting Edge Count):3DCONms (Connection Diameter Machine Side):0.7500ZcEff (Cutting Edge Count Effective):3ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$312.08 Quantity Spin Up Spin Down Quantity is Required
946-000-008 104-E90AP D1.00-2-W1.00-16	ULTRA-DEX® 946 (E90AP D1.00-2-W1.00-16), 90° Ø1" Indexable End Mill, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.4720BD (Body Diameter):0.9400KAPR (Entering Angle):90.0LF (Functional Length):4.0000LU (Usable Length):1.7500RPmx (Max Ramping Angle):6.0000Zc (Cutting Edge Count):2DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):2ADINTms (Connection Type Machine Side):Straight Shank - Imperial 1.0000 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$228.42 Quantity Spin Up Spin Down Quantity is Required
946-000-009 104-E90AP D1.00-2-W1.00-6-16	ULTRA-DEX® 946 (E90AP D1.00-2-W1.00-6-16), 90° Ø1" Indexable End Mill, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.4720BD (Body Diameter):0.9400KAPR (Entering Angle):90.0LF (Functional Length):6.0000LU (Usable Length):4.0000RPmx (Max Ramping Angle):6.0000Zc (Cutting Edge Count):2DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):2ADINTms (Connection Type Machine Side):Straight Shank - Imperial 1.0000 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$291.18 Quantity Spin Up Spin Down Quantity is Required
946-000-010 104-E90AP D1.00-3-W.750-11	ULTRA-DEX® 946 (E90AP D1.00-3-W.750-11), 90° Ø1" Indexable End Mill, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.3150BD (Body Diameter):0.9550KAPR (Entering Angle):90.0LF (Functional Length):4.0000LU (Usable Length):1.5000RPmx (Max Ramping Angle):4.5000Zc (Cutting Edge Count):3DCONms (Connection Diameter Machine Side):0.7500ZcEff (Cutting Edge Count Effective):3ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$249.33 Quantity Spin Up Spin Down Quantity is Required
946-000-011 104-E90AP D1.00-3-W1.00-11	ULTRA-DEX® 946 (E90AP D1.00-3-W1.00-11), 90° Ø1" Indexable End Mill, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.3150BD (Body Diameter):0.9550KAPR (Entering Angle):90.0LF (Functional Length):4.0000LU (Usable Length):1.5000RPmx (Max Ramping Angle):4.5000Zc (Cutting Edge Count):3DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):3ADINTms (Connection Type Machine Side):Straight Shank - Imperial 1.0000 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$270.26 Quantity Spin Up Spin Down Quantity is Required
946-000-012 104-E90AP D1.00-3-W1.00-11-C	ULTRA-DEX® 946 (E90AP D1.00-3-W1.00-11-C), 90° Ø1" Indexable End Mill, Coolant Thru UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.3150BD (Body Diameter):0.9550KAPR (Entering Angle):90.0LF (Functional Length):4.0000LU (Usable Length):1.5000RPmx (Max Ramping Angle):4.5000Zc (Cutting Edge Count):3DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):3ADINTms (Connection Type Machine Side):Straight Shank - Imperial 1.0000 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:Yes	$301.63 Quantity Spin Up Spin Down Quantity is Required
946-000-013 104-E90AP D1.00-3-W1.00-6-11	ULTRA-DEX® 946 (E90AP D1.00-3-W1.00-6-11), 90° Ø1" Indexable End Mill, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.3150BD (Body Diameter):0.9550KAPR (Entering Angle):90.0LF (Functional Length):6.0000LU (Usable Length):3.0000RPmx (Max Ramping Angle):4.5000Zc (Cutting Edge Count):3DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):3ADINTms (Connection Type Machine Side):Straight Shank - Imperial 1.0000 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$333.01 Quantity Spin Up Spin Down Quantity is Required
946-000-014 104-E90AP D1.250-2-W1.00-16	ULTRA-DEX® 946 (E90AP D1.250-2-W1.00-16), 90° Ø1-1/4" Indexable End Mill, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.4720BD (Body Diameter):1.1900KAPR (Entering Angle):90.0LF (Functional Length):4.0000LU (Usable Length):1.5000RPmx (Max Ramping Angle):4.5000Zc (Cutting Edge Count):2DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):2ADINTms (Connection Type Machine Side):Straight Shank - Imperial 1.0000 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$249.33 Quantity Spin Up Spin Down Quantity is Required
946-000-015 104-E90AP D1.250-3-W.750-11	ULTRA-DEX® 946 (E90AP D1.250-3-W.750-11), 90° Ø1-1/4" Indexable End Mill, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.3150BD (Body Diameter):1.2050KAPR (Entering Angle):90.0LF (Functional Length):4.0000LU (Usable Length):1.5000RPmx (Max Ramping Angle):3.0000Zc (Cutting Edge Count):3DCONms (Connection Diameter Machine Side):0.7500ZcEff (Cutting Edge Count Effective):3ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$249.33 Quantity Spin Up Spin Down Quantity is Required
946-000-016 104-E90AP D1.250-3-W1.00-11	ULTRA-DEX® 946 (E90AP D1.250-3-W1.00-11), 90° Ø1-1/4" Indexable End Mill, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.3150BD (Body Diameter):1.2050KAPR (Entering Angle):90.0LF (Functional Length):4.0000LU (Usable Length):1.5000RPmx (Max Ramping Angle):3.0000Zc (Cutting Edge Count):3DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):3ADINTms (Connection Type Machine Side):Straight Shank - Imperial 1.0000 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$270.26 Quantity Spin Up Spin Down Quantity is Required
946-000-017 104-E90AP D1.250-3-W1.00-16	ULTRA-DEX® 946 (E90AP D1.250-3-W1.00-16), 90° Ø1-1/4" Indexable End Mill, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.4720BD (Body Diameter):1.1900KAPR (Entering Angle):90.0LF (Functional Length):4.0000LU (Usable Length):1.5000RPmx (Max Ramping Angle):4.5000Zc (Cutting Edge Count):3DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):3ADINTms (Connection Type Machine Side):Straight Shank - Imperial 1.0000 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$270.26 Quantity Spin Up Spin Down Quantity is Required
946-000-018 104-E90AP D1.250-3-W1.00-16-C	ULTRA-DEX® 946 (E90AP D1.250-3-W1.00-16-C), 90° Ø1-1/4" Indexable End Mill, Coolant Thru UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.4720BD (Body Diameter):1.1900KAPR (Entering Angle):90.0LF (Functional Length):4.0000LU (Usable Length):1.5000RPmx (Max Ramping Angle):4.5000Zc (Cutting Edge Count):3DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):3ADINTms (Connection Type Machine Side):Straight Shank - Imperial 1.0000 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:Yes	$312.08 Quantity Spin Up Spin Down Quantity is Required
946-000-019 104-E90AP D1.500-3-W1.00-16	ULTRA-DEX® 946 (E90AP D1.500-3-W1.00-16), 90° Ø1-1/2" Indexable End Mill, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.4720BD (Body Diameter):1.4250KAPR (Entering Angle):90.0LF (Functional Length):4.0000LU (Usable Length):1.5000RPmx (Max Ramping Angle):2.5000Zc (Cutting Edge Count):3DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):3ADINTms (Connection Type Machine Side):Straight Shank - Imperial 1.0000 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$270.26 Quantity Spin Up Spin Down Quantity is Required
946-000-020 104-E90AP D1.500-3-W1.00-16-C	ULTRA-DEX® 946 (E90AP D1.500-3-W1.00-16-C), 90° Ø1-1/2" Indexable End Mill, Coolant Thru UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.4720BD (Body Diameter):1.4250KAPR (Entering Angle):90.0LF (Functional Length):4.0000LU (Usable Length):1.5000RPmx (Max Ramping Angle):2.5000Zc (Cutting Edge Count):3DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):3ADINTms (Connection Type Machine Side):Straight Shank - Imperial 1.0000 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:Yes	$312.08 Quantity Spin Up Spin Down Quantity is Required
946-000-021 104-E90AP D1.500-5-W1.00-11	ULTRA-DEX® 946 (E90AP D1.500-5-W1.00-11), 90° Ø1-1/2" Indexable End Mill, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.3150BD (Body Diameter):1.4750KAPR (Entering Angle):90.0LF (Functional Length):4.0000LU (Usable Length):1.5000RPmx (Max Ramping Angle):2.0000Zc (Cutting Edge Count):5DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):5ADINTms (Connection Type Machine Side):Straight Shank - Imperial 1.0000 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$291.18 Quantity Spin Up Spin Down Quantity is Required
