Grooving

Part Number		Purchase
Grooving. About this grid. Use spreadsheet functions to search the grid: Click the column title to sort the rows. Sorting may be done on multiple columns in either ascending or descending order. Right-click on the column heading to show a context menu. The menu allows you to sort or clear the sorting for a column. The list may be filtered using the filter function within the context menu. The filter may be cleared by pressing the "Clear Filter" button. Once you have found the product your interested in: Enter the quantity you would like to purchase and your desired ship date. Press the “Check Price And Availability” graphic. The system will look up your specific pricing for that quantity and a projected ship date based on our inventory and production capacity. Press the “Add This to My Cart” graphic to place the quantity of the item in your shopping cart, along with the requested ship date.

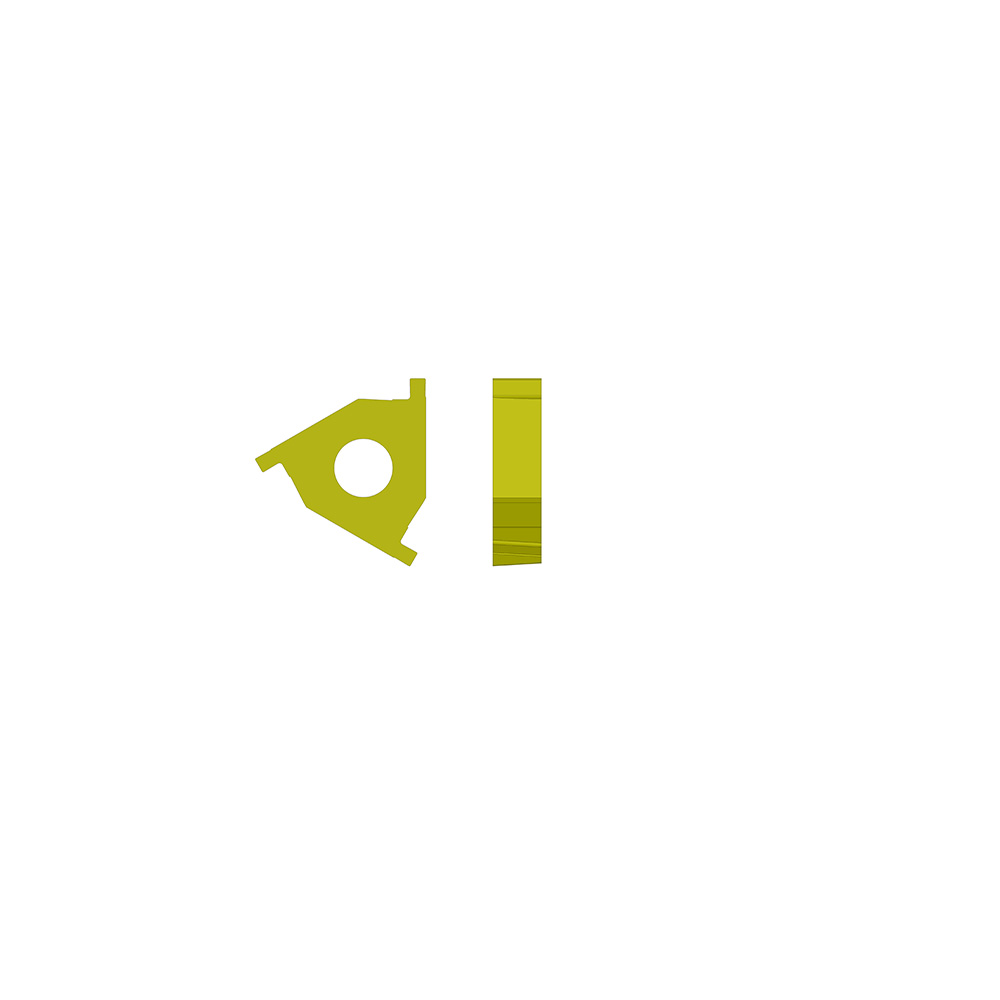

913-000-013 104-3IR NG W.031	ULTRA-DEX® 913 (3IR NG W.031), Laydown Grooving Insert UM (Unit of Measure):ImperialCDX (Max Depth of Cut):0.0500CW (Cutting Width):0.0310IC (Inscribed Circle Dia.):0.3750S (Insert Thickness):0.1560Zc (Cutting Edge Count):3BMC (Tool Material):Carbide	$28.67 Quantity Spin Up Spin Down Quantity is Required
913-000-014 104-3IR NG W.047	ULTRA-DEX® 913 (3IR NG W.047), Laydown Grooving Insert UM (Unit of Measure):ImperialCDX (Max Depth of Cut):0.0700CW (Cutting Width):0.0470IC (Inscribed Circle Dia.):0.3750S (Insert Thickness):0.1560Zc (Cutting Edge Count):3BMC (Tool Material):Carbide	$28.67 Quantity Spin Up Spin Down Quantity is Required
913-000-015 104-3IR NG W.062	ULTRA-DEX® 913 (3IR NG W.062), Laydown Grooving Insert UM (Unit of Measure):ImperialCDX (Max Depth of Cut):0.0800CW (Cutting Width):0.0620IC (Inscribed Circle Dia.):0.3750S (Insert Thickness):0.1560Zc (Cutting Edge Count):3BMC (Tool Material):Carbide	$28.67 Quantity Spin Up Spin Down Quantity is Required
913-000-016 104-3IR NG W.093	ULTRA-DEX® 913 (3IR NG W.093), Laydown Grooving Insert UM (Unit of Measure):ImperialCDX (Max Depth of Cut):0.0700CW (Cutting Width):0.0930IC (Inscribed Circle Dia.):0.3750S (Insert Thickness):0.1560Zc (Cutting Edge Count):3BMC (Tool Material):Carbide	$28.67 Quantity Spin Up Spin Down Quantity is Required

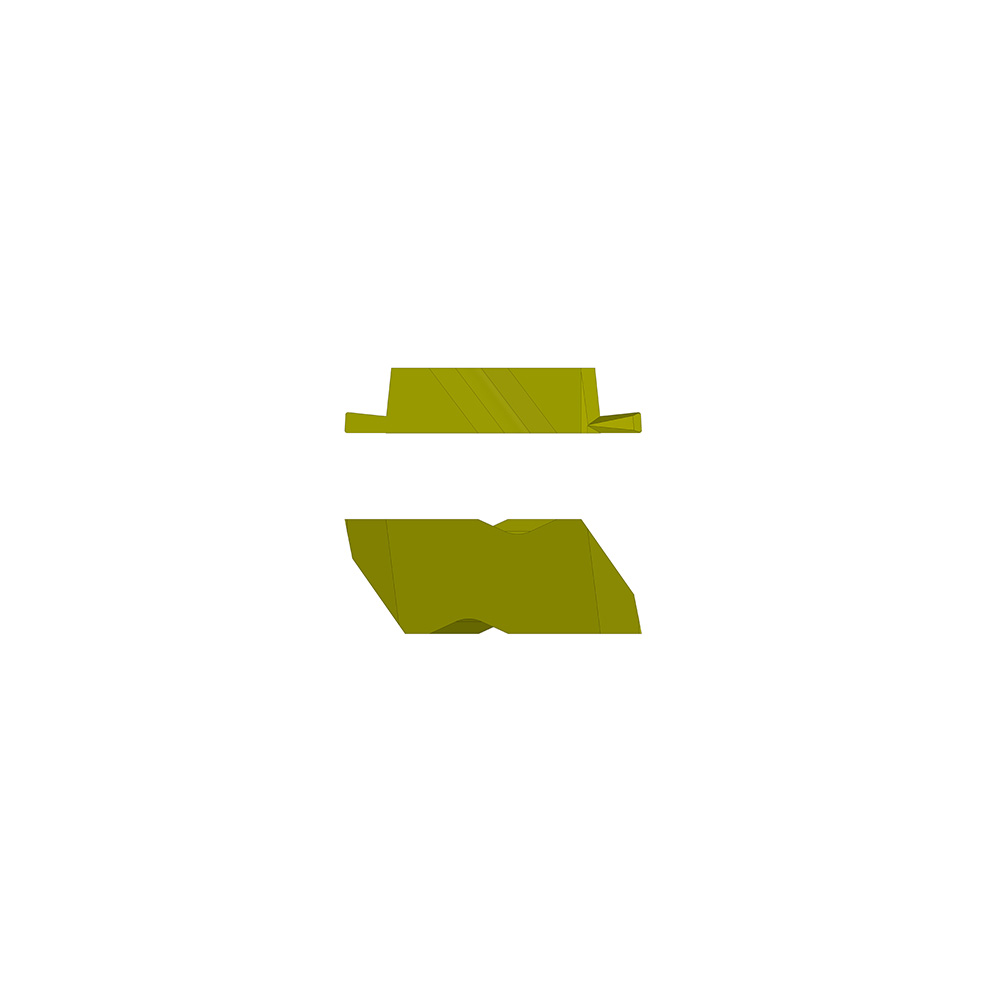

913-000-309 104-NG-2L W.031	ULTRA-DEX® 913 (NG-2L W.031), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.2700CDX (Max Depth of Cut):0.0500CW (Cutting Width):0.0310Re (Cutting Edge Corner Radius):0.0035S (Insert Thickness):0.2190W1 (Insert Width):0.1500Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$44.75 Quantity Spin Up Spin Down Quantity is Required
913-000-310 104-NG-2L W.062	ULTRA-DEX® 913 (NG-2L W.062), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.2700CDX (Max Depth of Cut):0.1100CW (Cutting Width):0.0620Re (Cutting Edge Corner Radius):0.0075S (Insert Thickness):0.2190W1 (Insert Width):0.1500Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$44.75 Quantity Spin Up Spin Down Quantity is Required
913-000-311 104-NG-2L W.094	ULTRA-DEX® 913 (NG-2L W.094), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.2700CDX (Max Depth of Cut):0.1100CW (Cutting Width):0.0940Re (Cutting Edge Corner Radius):0.0075S (Insert Thickness):0.2190W1 (Insert Width):0.1500Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$44.75 Quantity Spin Up Spin Down Quantity is Required
913-000-312 104-NG-2R W.031	ULTRA-DEX® 913 (NG-2R W.031), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.2700CDX (Max Depth of Cut):0.0500CW (Cutting Width):0.0310Re (Cutting Edge Corner Radius):0.0035S (Insert Thickness):0.2190W1 (Insert Width):0.1500Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$44.75 Quantity Spin Up Spin Down Quantity is Required
913-000-313 104-NG-2R W.062	ULTRA-DEX® 913 (NG-2R W.062), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.2700CDX (Max Depth of Cut):0.1100CW (Cutting Width):0.0620Re (Cutting Edge Corner Radius):0.0075S (Insert Thickness):0.2190W1 (Insert Width):0.1500Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$44.75 Quantity Spin Up Spin Down Quantity is Required
913-000-314 104-NG-2R W.094	ULTRA-DEX® 913 (NG-2R W.094), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.2700CDX (Max Depth of Cut):0.1100CW (Cutting Width):0.0940Re (Cutting Edge Corner Radius):0.0075S (Insert Thickness):0.2190W1 (Insert Width):0.1500Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$44.75 Quantity Spin Up Spin Down Quantity is Required
913-000-315 104-NG-3L W.062	ULTRA-DEX® 913 (NG-3L W.062), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.4050CDX (Max Depth of Cut):0.1200CW (Cutting Width):0.0620Re (Cutting Edge Corner Radius):0.0075S (Insert Thickness):0.3440W1 (Insert Width):0.1950Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$44.75 Quantity Spin Up Spin Down Quantity is Required
913-000-316 104-NG-3L W.094	ULTRA-DEX® 913 (NG-3L W.094), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.4050CDX (Max Depth of Cut):0.1800CW (Cutting Width):0.0940Re (Cutting Edge Corner Radius):0.0075S (Insert Thickness):0.3440W1 (Insert Width):0.1950Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$44.75 Quantity Spin Up Spin Down Quantity is Required
913-000-317 104-NG-3L W.125	ULTRA-DEX® 913 (NG-3L W.125), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.4050CDX (Max Depth of Cut):0.1800CW (Cutting Width):0.1250Re (Cutting Edge Corner Radius):0.0075S (Insert Thickness):0.3440W1 (Insert Width):0.1950Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$44.75 Quantity Spin Up Spin Down Quantity is Required
913-000-318 104-NG-3R W.062	ULTRA-DEX® 913 (NG-3R W.062), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.4050CDX (Max Depth of Cut):0.1200CW (Cutting Width):0.0620Re (Cutting Edge Corner Radius):0.0075S (Insert Thickness):0.3440W1 (Insert Width):0.1950Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$44.75 Quantity Spin Up Spin Down Quantity is Required
913-000-319 104-NG-3R W.094	ULTRA-DEX® 913 (NG-3R W.094), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.4050CDX (Max Depth of Cut):0.1800CW (Cutting Width):0.0940Re (Cutting Edge Corner Radius):0.0075S (Insert Thickness):0.3440W1 (Insert Width):0.1950Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$44.75 Quantity Spin Up Spin Down Quantity is Required
913-000-320 104-NG-3R W.125	ULTRA-DEX® 913 (NG-3R W.125), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.4050CDX (Max Depth of Cut):0.1800CW (Cutting Width):0.1250Re (Cutting Edge Corner Radius):0.0075S (Insert Thickness):0.3440W1 (Insert Width):0.1950Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$44.75 Quantity Spin Up Spin Down Quantity is Required
913-000-321 104-NG-4L W.125	ULTRA-DEX® 913 (NG-4L W.125), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.6360CDX (Max Depth of Cut):0.2500CW (Cutting Width):0.1250Re (Cutting Edge Corner Radius):0.0075S (Insert Thickness):0.4530W1 (Insert Width):0.2550Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$54.60 Quantity Spin Up Spin Down Quantity is Required
913-000-322 104-NG-4L W.189	ULTRA-DEX® 913 (NG-4L W.189), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.6360CDX (Max Depth of Cut):0.2500CW (Cutting Width):0.1890Re (Cutting Edge Corner Radius):0.0225S (Insert Thickness):0.4530W1 (Insert Width):0.2550Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$54.60 Quantity Spin Up Spin Down Quantity is Required
913-000-323 104-NG-4L W.250	ULTRA-DEX® 913 (NG-4L W.250), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.6360CDX (Max Depth of Cut):0.2500CW (Cutting Width):0.2500Re (Cutting Edge Corner Radius):0.0225S (Insert Thickness):0.4530W1 (Insert Width):0.2550Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$54.60 Quantity Spin Up Spin Down Quantity is Required
913-000-324 104-NG-4R W.125	ULTRA-DEX® 913 (NG-4R W.125), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.6360CDX (Max Depth of Cut):0.2500CW (Cutting Width):0.1250Re (Cutting Edge Corner Radius):0.0225S (Insert Thickness):0.4530W1 (Insert Width):0.2550Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$54.60 Quantity Spin Up Spin Down Quantity is Required
913-000-325 104-NG-4R W.189	ULTRA-DEX® 913 (NG-4R W.189), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.6360CDX (Max Depth of Cut):0.2500CW (Cutting Width):0.1890Re (Cutting Edge Corner Radius):0.0225S (Insert Thickness):0.4530W1 (Insert Width):0.2550Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$54.60 Quantity Spin Up Spin Down Quantity is Required
913-000-326 104-NG-4R W.250	ULTRA-DEX® 913 (NG-4R W.250), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.6360CDX (Max Depth of Cut):0.2500CW (Cutting Width):0.2500Re (Cutting Edge Corner Radius):0.0225S (Insert Thickness):0.4530W1 (Insert Width):0.2550Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$54.60 Quantity Spin Up Spin Down Quantity is Required
913-000-327 104-NG-6L W.281	ULTRA-DEX® 913 (NG-6L W.281), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.6360CDX (Max Depth of Cut):0.2500CW (Cutting Width):0.2810Re (Cutting Edge Corner Radius):0.0325S (Insert Thickness):0.4530W1 (Insert Width):0.3830Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$59.16 Quantity Spin Up Spin Down Quantity is Required
913-000-328 104-NG-6L W.375	ULTRA-DEX® 913 (NG-6L W.375), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.6360CDX (Max Depth of Cut):0.2500CW (Cutting Width):0.3750Re (Cutting Edge Corner Radius):0.0325S (Insert Thickness):0.4530W1 (Insert Width):0.3830Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$59.16 Quantity Spin Up Spin Down Quantity is Required
913-000-329 104-NG-6R W.281	ULTRA-DEX® 913 (NG-6R W.281), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.6360CDX (Max Depth of Cut):0.2500CW (Cutting Width):0.2810Re (Cutting Edge Corner Radius):0.0325S (Insert Thickness):0.4530W1 (Insert Width):0.3830Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$59.16 Quantity Spin Up Spin Down Quantity is Required
913-000-330 104-NG-6R W.375	ULTRA-DEX® 913 (NG-6R W.375), Grooving Insert, Notch Style UM (Unit of Measure):ImperialB (Shank Width):0.6360CDX (Max Depth of Cut):0.2500CW (Cutting Width):0.3750Re (Cutting Edge Corner Radius):0.0325S (Insert Thickness):0.4530W1 (Insert Width):0.3830Zc (Cutting Edge Count):2BMC (Tool Material):Carbide	$59.16 Quantity Spin Up Spin Down Quantity is Required
