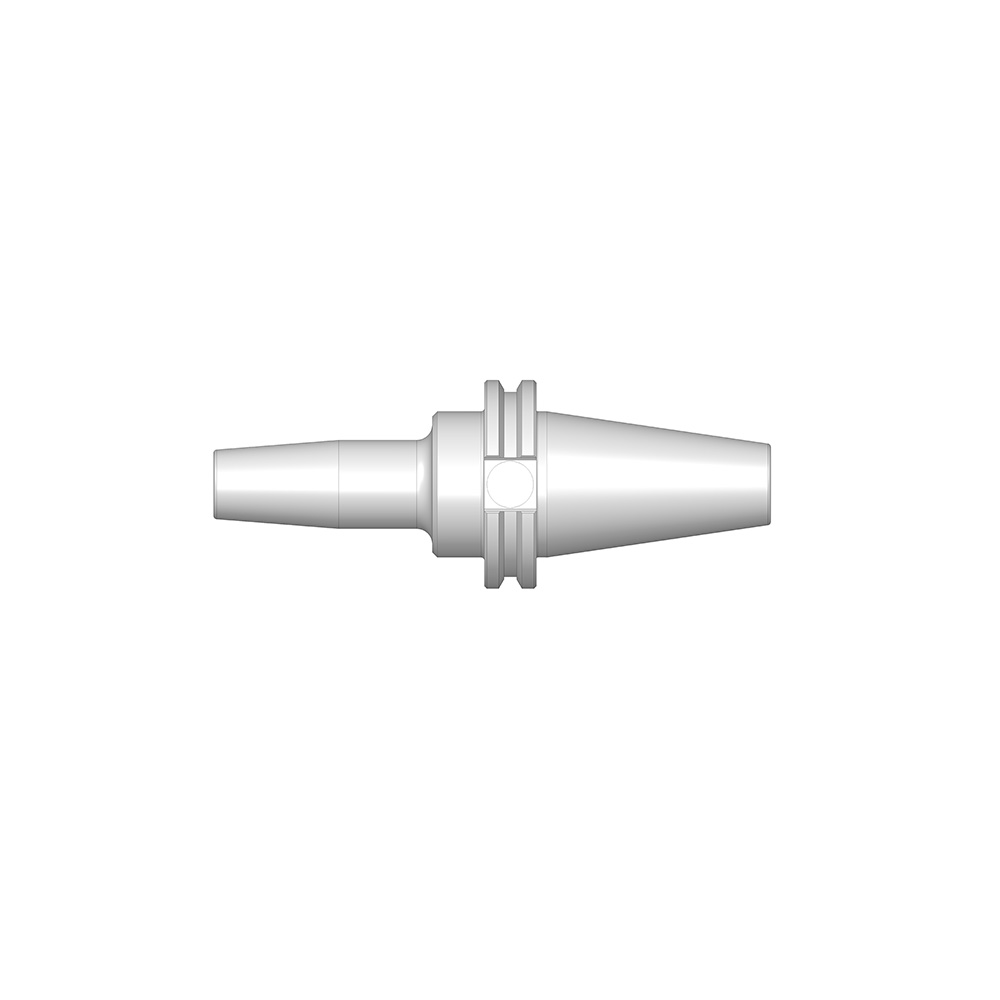

966 High Performance CAT50 Shrink Fit Tool Holder

Part Number		Purchase
966 High Performance CAT50 Shrink Fit Tool Holder. About this grid. Use spreadsheet functions to search the grid: Click the column title to sort the rows. Sorting may be done on multiple columns in either ascending or descending order. Right-click on the column heading to show a context menu. The menu allows you to sort or clear the sorting for a column. The list may be filtered using the filter function within the context menu. The filter may be cleared by pressing the "Clear Filter" button. Once you have found the product your interested in: Enter the quantity you would like to purchase and your desired ship date. Press the “Check Price And Availability” graphic. The system will look up your specific pricing for that quantity and a projected ship date based on our inventory and production capacity. Press the “Add This to My Cart” graphic to place the quantity of the item in your shopping cart, along with the requested ship date.

966-000-265 104-CT50-SF012-400-G2	PATRIOT HP® 966 (CT50-SF012-400-G2), CAT50 Shrink Fit Tooling System, Imperial, Standard Length, G2.5 (20,000 RPM), Coolant Thru UM (Unit of Measure):ImperialBD (Body Diameter):0.7870BD1 (Body Dia. 1):2.7500ADINTws (Connection Type Work Side):Shrink Fit Straight Hole - Imperial 0.1250LB (Body Length):2.6200LB1 (Body Length 1):3.2500LF (Functional Length):4.0000LU (Usable Length):0.3750DCONws (Connection Dia. Work Side):0.1250ADINTms (Connection Type Machine Side):CAT50BMC (Tool Material):SteelCoolant Thru:YesCRKS (Connection Rentention Knob Thread Size):1-8	$515.13 Quantity Spin Up Spin Down Quantity is Required
966-000-266 104-CT50-SF100-400-G2	PATRIOT HP® 966 (CT50-SF100-400-G2), CAT50 Shrink Fit Tooling System, Imperial, Standard Length, G2.5 (20,000 RPM), Coolant Thru UM (Unit of Measure):ImperialBD (Body Diameter):2.0900BD1 (Body Dia. 1):2.7500ADINTws (Connection Type Work Side):Shrink Fit Straight Hole - Imperial 1.0000LB (Body Length):2.6200LB1 (Body Length 1):3.2500LF (Functional Length):4.0000LU (Usable Length):2.2800DCONws (Connection Dia. Work Side):1.0000ADINTms (Connection Type Machine Side):CAT50BMC (Tool Material):SteelCoolant Thru:YesCRKS (Connection Rentention Knob Thread Size):1-8	$537.95 Quantity Spin Up Spin Down Quantity is Required
966-000-267 104-CT50-SF125-400-G2	PATRIOT HP® 966 (CT50-SF125-400-G2), CAT50 Shrink Fit Tooling System, Imperial, Standard Length, G2.5 (20,000 RPM), Coolant Thru UM (Unit of Measure):ImperialBD (Body Diameter):2.0900BD1 (Body Dia. 1):2.7500ADINTws (Connection Type Work Side):Shrink Fit Straight Hole - Imperial 1.2500LB (Body Length):2.6200LB1 (Body Length 1):3.2500LF (Functional Length):4.0000LU (Usable Length):2.2800DCONws (Connection Dia. Work Side):1.2500ADINTms (Connection Type Machine Side):CAT50BMC (Tool Material):SteelCoolant Thru:YesCRKS (Connection Rentention Knob Thread Size):1-8	$537.95 Quantity Spin Up Spin Down Quantity is Required
966-000-268 104-CT50-SF188-400-G2	PATRIOT HP® 966 (CT50-SF188-400-G2), CAT50 Shrink Fit Tooling System, Imperial, Standard Length, G2.5 (20,000 RPM), Coolant Thru UM (Unit of Measure):ImperialBD (Body Diameter):0.7500BD1 (Body Dia. 1):2.7500ADINTws (Connection Type Work Side):Shrink Fit Straight Hole - Imperial 0.1875LB (Body Length):2.6200LB1 (Body Length 1):3.2500LF (Functional Length):4.0000LU (Usable Length):0.5630DCONws (Connection Dia. Work Side):0.1875ADINTms (Connection Type Machine Side):CAT50BMC (Tool Material):SteelCoolant Thru:YesCRKS (Connection Rentention Knob Thread Size):1-8	$490.42 Quantity Spin Up Spin Down Quantity is Required
966-000-269 104-CT50-SF250-400-G2	PATRIOT HP® 966 (CT50-SF250-400-G2), CAT50 Shrink Fit Tooling System, Imperial, Standard Length, G2.5 (20,000 RPM), Coolant Thru UM (Unit of Measure):ImperialBD (Body Diameter):0.7500BD1 (Body Dia. 1):2.7500ADINTws (Connection Type Work Side):Shrink Fit Straight Hole - Imperial 0.2500LB (Body Length):2.6200LB1 (Body Length 1):3.2500LF (Functional Length):4.0000LU (Usable Length):1.4200DCONws (Connection Dia. Work Side):0.2500ADINTms (Connection Type Machine Side):CAT50BMC (Tool Material):SteelCoolant Thru:YesCRKS (Connection Rentention Knob Thread Size):1-8	$490.42 Quantity Spin Up Spin Down Quantity is Required
966-000-270 104-CT50-SF250-600-G2	PATRIOT HP® 966 (CT50-SF250-600-G2), CAT50 Shrink Fit Tooling System, Imperial, Extended Length, G2.5 (20,000 RPM), Coolant Thru UM (Unit of Measure):ImperialBD (Body Diameter):0.7500BD1 (Body Dia. 1):2.7500ADINTws (Connection Type Work Side):Shrink Fit Straight Hole - Imperial 0.2500LB (Body Length):4.6200LB1 (Body Length 1):5.2500LF (Functional Length):6.0000LU (Usable Length):1.4200DCONws (Connection Dia. Work Side):0.2500ADINTms (Connection Type Machine Side):CAT50BMC (Tool Material):SteelCoolant Thru:YesCRKS (Connection Rentention Knob Thread Size):1-8	$585.45 Quantity Spin Up Spin Down Quantity is Required
966-000-271 104-CT50-SF250-800-G2	PATRIOT HP® 966 (CT50-SF250-800-G2), CAT50 Shrink Fit Tooling System, Imperial, Extended Length, G2.5 (20,000 RPM), Coolant Thru UM (Unit of Measure):ImperialBD (Body Diameter):1.0000BD1 (Body Dia. 1):2.7500ADINTws (Connection Type Work Side):Shrink Fit Straight Hole - Imperial 0.2500LB (Body Length):6.6200LB1 (Body Length 1):7.2500LF (Functional Length):8.0000LU (Usable Length):1.4200DCONws (Connection Dia. Work Side):0.2500ADINTms (Connection Type Machine Side):CAT50BMC (Tool Material):SteelCoolant Thru:YesCRKS (Connection Rentention Knob Thread Size):1-8	$655.81 Quantity Spin Up Spin Down Quantity is Required
966-000-272 104-CT50-SF375-400-G2	PATRIOT HP® 966 (CT50-SF375-400-G2), CAT50 Shrink Fit Tooling System, Imperial, Standard Length, G2.5 (20,000 RPM), Coolant Thru UM (Unit of Measure):ImperialBD (Body Diameter):0.7500BD1 (Body Dia. 1):2.7500ADINTws (Connection Type Work Side):Shrink Fit Straight Hole - Imperial 0.3750LB (Body Length):2.6200LB1 (Body Length 1):3.2500LF (Functional Length):4.0000LU (Usable Length):1.5300DCONws (Connection Dia. Work Side):0.3750ADINTms (Connection Type Machine Side):CAT50BMC (Tool Material):SteelCoolant Thru:YesCRKS (Connection Rentention Knob Thread Size):1-8	$490.42 Quantity Spin Up Spin Down Quantity is Required
966-000-273 104-CT50-SF375-600-G2	PATRIOT HP® 966 (CT50-SF375-600-G2), CAT50 Shrink Fit Tooling System, Imperial, Extended Length, G2.5 (20,000 RPM), Coolant Thru UM (Unit of Measure):ImperialBD (Body Diameter):1.0000BD1 (Body Dia. 1):2.7500ADINTws (Connection Type Work Side):Shrink Fit Straight Hole - Imperial 0.3750LB (Body Length):4.6200LB1 (Body Length 1):5.2500LF (Functional Length):6.0000LU (Usable Length):1.5300DCONws (Connection Dia. Work Side):0.3750ADINTms (Connection Type Machine Side):CAT50BMC (Tool Material):SteelCoolant Thru:YesCRKS (Connection Rentention Knob Thread Size):1-8	$585.45 Quantity Spin Up Spin Down Quantity is Required
966-000-274 104-CT50-SF375-800-G2	PATRIOT HP® 966 (CT50-SF375-800-G2), CAT50 Shrink Fit Tooling System, Imperial, Extended Length, G2.5 (20,000 RPM), Coolant Thru UM (Unit of Measure):ImperialBD (Body Diameter):1.2500BD1 (Body Dia. 1):2.7500ADINTws (Connection Type Work Side):Shrink Fit Straight Hole - Imperial 0.3750LB (Body Length):6.6200LB1 (Body Length 1):7.2500LF (Functional Length):8.0000LU (Usable Length):1.5300DCONws (Connection Dia. Work Side):0.3750ADINTms (Connection Type Machine Side):CAT50BMC (Tool Material):SteelCoolant Thru:YesCRKS (Connection Rentention Knob Thread Size):1-8	$678.62 Quantity Spin Up Spin Down Quantity is Required
966-000-275 104-CT50-SF500-400-G2	PATRIOT HP® 966 (CT50-SF500-400-G2), CAT50 Shrink Fit Tooling System, Imperial, Standard Length, G2.5 (20,000 RPM), Coolant Thru UM (Unit of Measure):ImperialBD (Body Diameter):1.0000BD1 (Body Dia. 1):2.7500ADINTws (Connection Type Work Side):Shrink Fit Straight Hole - Imperial 0.5000LB (Body Length):2.6200LB1 (Body Length 1):3.2500LF (Functional Length):4.0000LU (Usable Length):1.8500DCONws (Connection Dia. Work Side):0.5000ADINTms (Connection Type Machine Side):CAT50BMC (Tool Material):SteelCoolant Thru:YesCRKS (Connection Rentention Knob Thread Size):1-8	$515.13 Quantity Spin Up Spin Down Quantity is Required
966-000-276 104-CT50-SF500-600-G2	PATRIOT HP® 966 (CT50-SF500-600-G2), CAT50 Shrink Fit Tooling System, Imperial, Extended Length, G2.5 (20,000 RPM), Coolant Thru UM (Unit of Measure):ImperialBD (Body Diameter):1.0000BD1 (Body Dia. 1):2.7500ADINTws (Connection Type Work Side):Shrink Fit Straight Hole - Imperial 0.5000LB (Body Length):4.6200LB1 (Body Length 1):5.2500LF (Functional Length):6.0000LU (Usable Length):1.8500DCONws (Connection Dia. Work Side):0.5000ADINTms (Connection Type Machine Side):CAT50BMC (Tool Material):SteelCoolant Thru:YesCRKS (Connection Rentention Knob Thread Size):1-8	$585.45 Quantity Spin Up Spin Down Quantity is Required
966-000-277 104-CT50-SF500-800-G2	PATRIOT HP® 966 (CT50-SF500-800-G2), CAT50 Shrink Fit Tooling System, Imperial, Extended Length, G2.5 (20,000 RPM), Coolant Thru UM (Unit of Measure):ImperialBD (Body Diameter):1.2500BD1 (Body Dia. 1):2.7500ADINTws (Connection Type Work Side):Shrink Fit Straight Hole - Imperial 0.5000LB (Body Length):6.6200LB1 (Body Length 1):7.2500LF (Functional Length):8.0000LU (Usable Length):1.8500DCONws (Connection Dia. Work Side):0.5000ADINTms (Connection Type Machine Side):CAT50BMC (Tool Material):SteelCoolant Thru:YesCRKS (Connection Rentention Knob Thread Size):1-8	$678.62 Quantity Spin Up Spin Down Quantity is Required
966-000-278 104-CT50-SF625-400-G2	PATRIOT HP® 966 (CT50-SF625-400-G2), CAT50 Shrink Fit Tooling System, Imperial, Standard Length, G2.5 (20,000 RPM), Coolant Thru UM (Unit of Measure):ImperialBD (Body Diameter):1.0000BD1 (Body Dia. 1):2.7500ADINTws (Connection Type Work Side):Shrink Fit Straight Hole - Imperial 0.6250LB (Body Length):2.6200LB1 (Body Length 1):3.2500LF (Functional Length):4.0000LU (Usable Length):1.9700DCONws (Connection Dia. Work Side):0.6250ADINTms (Connection Type Machine Side):CAT50BMC (Tool Material):SteelCoolant Thru:YesCRKS (Connection Rentention Knob Thread Size):1-8	$515.13 Quantity Spin Up Spin Down Quantity is Required
966-000-279 104-CT50-SF625-600-G2	PATRIOT HP® 966 (CT50-SF625-600-G2), CAT50 Shrink Fit Tooling System, Imperial, Extended Length, G2.5 (20,000 RPM), Coolant Thru UM (Unit of Measure):ImperialBD (Body Diameter):1.2500BD1 (Body Dia. 1):2.7500ADINTws (Connection Type Work Side):Shrink Fit Straight Hole - Imperial 0.6250LB (Body Length):4.6200LB1 (Body Length 1):5.2500LF (Functional Length):6.0000LU (Usable Length):1.9700DCONws (Connection Dia. Work Side):0.6250ADINTms (Connection Type Machine Side):CAT50BMC (Tool Material):SteelCoolant Thru:YesCRKS (Connection Rentention Knob Thread Size):1-8	$608.27 Quantity Spin Up Spin Down Quantity is Required
966-000-280 104-CT50-SF750-400-G2	PATRIOT HP® 966 (CT50-SF750-400-G2), CAT50 Shrink Fit Tooling System, Imperial, Standard Length, G2.5 (20,000 RPM), Coolant Thru UM (Unit of Measure):ImperialBD (Body Diameter):1.2500BD1 (Body Dia. 1):2.7500ADINTws (Connection Type Work Side):Shrink Fit Straight Hole - Imperial 0.7500LB (Body Length):2.6200LB1 (Body Length 1):3.2500LF (Functional Length):4.0000LU (Usable Length):2.0400DCONws (Connection Dia. Work Side):0.7500ADINTms (Connection Type Machine Side):CAT50BMC (Tool Material):SteelCoolant Thru:YesCRKS (Connection Rentention Knob Thread Size):1-8	$515.13 Quantity Spin Up Spin Down Quantity is Required
966-000-281 104-CT50-SF750-600-G2	PATRIOT HP® 966 (CT50-SF750-600-G2), CAT50 Shrink Fit Tooling System, Imperial, Extended Length, G2.5 (20,000 RPM), Coolant Thru UM (Unit of Measure):ImperialBD (Body Diameter):1.2500BD1 (Body Dia. 1):2.7500ADINTws (Connection Type Work Side):Shrink Fit Straight Hole - Imperial 0.7500LB (Body Length):4.6200LB1 (Body Length 1):5.2500LF (Functional Length):6.0000LU (Usable Length):2.0400DCONws (Connection Dia. Work Side):0.7500ADINTms (Connection Type Machine Side):CAT50BMC (Tool Material):SteelCoolant Thru:YesCRKS (Connection Rentention Knob Thread Size):1-8	$608.27 Quantity Spin Up Spin Down Quantity is Required
