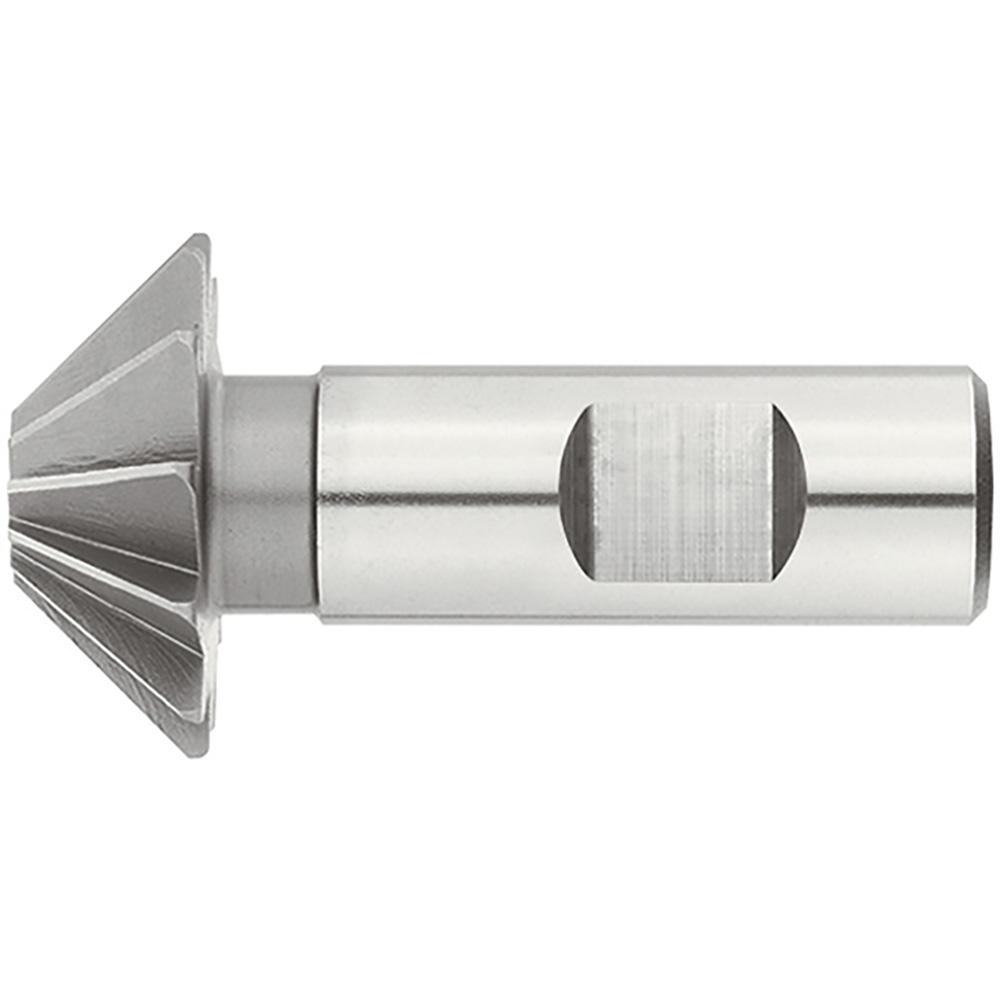

Single Angle, Shank

Filter

Single Angle, Shank. About this grid.
Use spreadsheet functions to search the grid:
  • Click the column title to sort the rows. Sorting may be done on multiple columns in either ascending or descending order.
  • Right-click on the column heading to show a context menu. The menu allows you to sort or clear the sorting for a column.
  • The list may be filtered using the filter function within the context menu. The filter may be cleared by pressing the "Clear Filter" button.
Once you have found the product your interested in:
  • Enter the quantity you would like to purchase and your desired ship date. Press the “Check Price And Availability” graphic. The system will look up your specific pricing for that quantity and a projected ship date based on our inventory and production capacity.
  • Press the “Add This to My Cart” graphic to place the quantity of the item in your shopping cart, along with the requested ship date.
Part Number Purchase

909-000-001
105-12640

KEO® 909 HSS Single Angle Chamfering Cutter, Ø1/2 x 45° x 1/8, 3/8 Shank, 8 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):0.5000A (Angle):45.0A1 (Angle 1):90.0CW (Cutting Width):0.1250L (Overall Length):2.1250LF (Functional Length):0.4375LS (Length of Shank):1.6875Zc (Cutting Edge Count):8DCONms (Connection Diameter Machine Side):0.3750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.3750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $89.25

Quantity
Spin UpSpin Down
Quantity is Required
909-000-004
105-12641

KEO® 909 HSS Single Angle Chamfering Cutter, Ø1/2 x 45° x 1/8, 3/8 Shank, 8 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):0.5000A (Angle):45.0A1 (Angle 1):90.0CW (Cutting Width):0.1250L (Overall Length):2.1250LF (Functional Length):0.4375LS (Length of Shank):1.6875Zc (Cutting Edge Count):8DCONms (Connection Diameter Machine Side):0.3750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.3750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $102.07

Quantity
Spin UpSpin Down
Quantity is Required
909-000-009
105-12642

KEO® 909 HSS Single Angle Chamfering Cutter, Ø3/4 x 45° x 3/16, 3/8 Shank, 8 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):0.7500A (Angle):45.0A1 (Angle 1):90.0CW (Cutting Width):0.1875L (Overall Length):2.1250LF (Functional Length):0.5000LS (Length of Shank):1.6250Zc (Cutting Edge Count):8DCONms (Connection Diameter Machine Side):0.3750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.3750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $104.98

Quantity
Spin UpSpin Down
Quantity is Required
909-000-012
105-12643

KEO® 909 HSS Single Angle Chamfering Cutter, Ø3/4 x 45° x 3/16, 3/8 Shank, 8 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):0.7500A (Angle):45.0A1 (Angle 1):90.0CW (Cutting Width):0.1875L (Overall Length):2.1250LF (Functional Length):0.5000LS (Length of Shank):1.6250Zc (Cutting Edge Count):8DCONms (Connection Diameter Machine Side):0.3750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.3750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $120.05

Quantity
Spin UpSpin Down
Quantity is Required
909-000-017
105-12644

KEO® 909 HSS Single Angle Chamfering Cutter, Ø1 x 45° x 5/16, 1/2 Shank, 10 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.0000A (Angle):45.0A1 (Angle 1):90.0CW (Cutting Width):0.3125L (Overall Length):2.5000LF (Functional Length):0.6875LS (Length of Shank):1.8125Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):0.5000ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.5000 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $130.56

Quantity
Spin UpSpin Down
Quantity is Required
909-000-020
105-12645

KEO® 909 HSS Single Angle Chamfering Cutter, Ø1 x 45° x 5/16, 1/2 Shank, 10 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.0000A (Angle):45.0A1 (Angle 1):90.0CW (Cutting Width):0.3125L (Overall Length):2.5000LF (Functional Length):0.6875LS (Length of Shank):1.8125Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):0.5000ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.5000 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $149.25

Quantity
Spin UpSpin Down
Quantity is Required
909-000-025
105-12646

KEO® 909 HSS Single Angle Chamfering Cutter, Ø1-1/2 x 45° x 1/2, 3/4 Shank, 12 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.5000A (Angle):45.0A1 (Angle 1):90.0CW (Cutting Width):0.5000L (Overall Length):2.7500LF (Functional Length):0.8750LS (Length of Shank):1.8750Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $168.46

Quantity
Spin UpSpin Down
Quantity is Required
909-000-028
105-12647

KEO® 909 HSS Single Angle Chamfering Cutter, Ø1-1/2 x 45° x 1/2, 3/4 Shank, 12 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.5000A (Angle):45.0A1 (Angle 1):90.0CW (Cutting Width):0.5000L (Overall Length):2.7500LF (Functional Length):0.8750LS (Length of Shank):1.8750Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $192.87

Quantity
Spin UpSpin Down
Quantity is Required
909-000-005
105-12650

KEO® 909 HSS Single Angle Chamfering Cutter, Ø1/2 x 60° x 7/32, 3/8 Shank, 8 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):0.5000A (Angle):60.0A1 (Angle 1):60.0CW (Cutting Width):0.2188L (Overall Length):2.1250LF (Functional Length):0.5313LS (Length of Shank):1.5938Zc (Cutting Edge Count):8DCONms (Connection Diameter Machine Side):0.3750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.3750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $89.25

Quantity
Spin UpSpin Down
Quantity is Required
909-000-008
105-12651

KEO® 909 HSS Single Angle Chamfering Cutter, Ø1/2 x 60° x 7/32, 3/8 Shank, 8 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):0.5000A (Angle):60.0A1 (Angle 1):60.0CW (Cutting Width):0.2188L (Overall Length):2.1250LF (Functional Length):0.5313LS (Length of Shank):1.5938Zc (Cutting Edge Count):8DCONms (Connection Diameter Machine Side):0.3750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.3750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $102.07

Quantity
Spin UpSpin Down
Quantity is Required
909-000-013
105-12652

KEO® 909 HSS Single Angle Chamfering Cutter, Ø3/4 x 60° x 5/16, 3/8 Shank, 8 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):0.7500A (Angle):60.0A1 (Angle 1):60.0CW (Cutting Width):0.3125L (Overall Length):2.1250LF (Functional Length):0.5625LS (Length of Shank):1.5625Zc (Cutting Edge Count):8DCONms (Connection Diameter Machine Side):0.3750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.3750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $104.98

Quantity
Spin UpSpin Down
Quantity is Required
909-000-016
105-12653

KEO® 909 HSS Single Angle Chamfering Cutter, Ø3/4 x 60° x 5/16, 3/8 Shank, 8 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):0.7500A (Angle):60.0A1 (Angle 1):60.0CW (Cutting Width):0.3125L (Overall Length):2.1250LF (Functional Length):0.5625LS (Length of Shank):1.5625Zc (Cutting Edge Count):8DCONms (Connection Diameter Machine Side):0.3750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.3750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $120.05

Quantity
Spin UpSpin Down
Quantity is Required
909-000-021
105-12654

KEO® 909 HSS Single Angle Chamfering Cutter, Ø1 x 60° x 7/16, 1/2 Shank, 10 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.0000A (Angle):60.0A1 (Angle 1):60.0CW (Cutting Width):0.4375L (Overall Length):2.5000LF (Functional Length):0.7500LS (Length of Shank):1.7500Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):0.5000ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.5000 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $130.56

Quantity
Spin UpSpin Down
Quantity is Required
909-000-024
105-12655

KEO® 909 HSS Single Angle Chamfering Cutter, Ø1 x 60° x 7/16, 1/2 Shank, 10 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.0000A (Angle):60.0A1 (Angle 1):60.0CW (Cutting Width):0.4375L (Overall Length):2.5000LF (Functional Length):0.7500LS (Length of Shank):1.7500Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):0.5000ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.5000 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $149.25

Quantity
Spin UpSpin Down
Quantity is Required
909-000-029
105-12656

KEO® 909 HSS Single Angle Chamfering Cutter, Ø1-1/2 x 60° x 5/8, 3/4 Shank, 12 Straight Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.5000A (Angle):60.0A1 (Angle 1):60.0CW (Cutting Width):0.6250L (Overall Length):2.7500LF (Functional Length):1.0000LS (Length of Shank):1.7500Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $168.46

Quantity
Spin UpSpin Down
Quantity is Required
909-000-032
105-12657

KEO® 909 HSS Single Angle Chamfering Cutter, Ø1-1/2 x 60° x 5/8, 3/4 Shank, 12 Straight Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.5000A (Angle):60.0A1 (Angle 1):60.0CW (Cutting Width):0.6250L (Overall Length):2.7500LF (Functional Length):1.0000LS (Length of Shank):1.7500Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $192.87

Quantity
Spin UpSpin Down
Quantity is Required
909-000-619
105-77489

KEO® 909 HSS Single Angle Chamfering Cutter, Ø1/2 x 45° x 1/8, 3/8 Shank, 8 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):0.5000A (Angle):45.0A1 (Angle 1):90.0CW (Cutting Width):0.1250L (Overall Length):2.1250LF (Functional Length):0.4375LS (Length of Shank):1.6875Zc (Cutting Edge Count):8DCONms (Connection Diameter Machine Side):0.3750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.3750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $119.97

Quantity
Spin UpSpin Down
Quantity is Required
909-000-620
105-77490

KEO® 909 HSS Single Angle Chamfering Cutter, Ø3/4 x 45° x 3/16, 3/8 Shank, 8 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):0.7500A (Angle):45.0A1 (Angle 1):90.0CW (Cutting Width):0.1875L (Overall Length):2.1250LF (Functional Length):0.5000LS (Length of Shank):1.6250Zc (Cutting Edge Count):8DCONms (Connection Diameter Machine Side):0.3750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.3750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $141.11

Quantity
Spin UpSpin Down
Quantity is Required
909-000-621
105-77491

KEO® 909 HSS Single Angle Chamfering Cutter, Ø1 x 45° x 5/16, 1/2 Shank, 10 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.0000A (Angle):45.0A1 (Angle 1):90.0CW (Cutting Width):0.3125L (Overall Length):2.5000LF (Functional Length):0.6875LS (Length of Shank):1.8125Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):0.5000ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.5000 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $175.40

Quantity
Spin UpSpin Down
Quantity is Required
909-000-622
105-77492

KEO® 909 HSS Single Angle Chamfering Cutter, Ø1-1/2 x 45° x 1/2, 3/4 Shank, 12 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.5000A (Angle):45.0A1 (Angle 1):90.0CW (Cutting Width):0.5000L (Overall Length):2.7500LF (Functional Length):0.8750LS (Length of Shank):1.8750Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $226.11

Quantity
Spin UpSpin Down
Quantity is Required
909-000-623
105-77493

KEO® 909 HSS Single Angle Chamfering Cutter, Ø1/2 x 60° x 7/32, 3/8 Shank, 8 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):0.5000A (Angle):60.0A1 (Angle 1):60.0CW (Cutting Width):0.2188L (Overall Length):2.1250LF (Functional Length):0.5313LS (Length of Shank):1.5938Zc (Cutting Edge Count):8DCONms (Connection Diameter Machine Side):0.3750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.3750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $119.97

Quantity
Spin UpSpin Down
Quantity is Required
909-000-624
105-77494

KEO® 909 HSS Single Angle Chamfering Cutter, Ø3/4 x 60° x 5/16, 3/8 Shank, 8 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):0.7500A (Angle):60.0A1 (Angle 1):60.0CW (Cutting Width):0.3125L (Overall Length):2.1250LF (Functional Length):0.5625LS (Length of Shank):1.5625Zc (Cutting Edge Count):8DCONms (Connection Diameter Machine Side):0.3750ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.3750 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $141.11

Quantity
Spin UpSpin Down
Quantity is Required
909-000-625
105-77495

KEO® 909 HSS Single Angle Chamfering Cutter, Ø1 x 60° x 7/16, 1/2 Shank, 10 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.0000A (Angle):60.0A1 (Angle 1):60.0CW (Cutting Width):0.4375L (Overall Length):2.5000LF (Functional Length):0.7500LS (Length of Shank):1.7500Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):0.5000ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.5000 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $175.40

Quantity
Spin UpSpin Down
Quantity is Required
909-000-626
105-77496

KEO® 909 HSS Single Angle Chamfering Cutter, Ø1-1/2 x 60° x 5/8, 3/4 Shank, 12 Straight Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):1.5000A (Angle):60.0A1 (Angle 1):60.0CW (Cutting Width):0.6250L (Overall Length):2.7500LF (Functional Length):1.0000LS (Length of Shank):1.7500Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatCONTYPE (Connection Type):ShankCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):R
 $226.11

Quantity
Spin UpSpin Down
Quantity is Required
  • No Filter, (blank)
  • Contains, (xxx) or ("xxx")
  • Starts With, (xxx*)
  • Ends With, (*xxx)
  • Equal To, (=xxx)
  • Greater Than Or Equal To, (>=xxx)
  • Less Than Or Equal To, (<=xxx)
  • Between, (xxx yyy)
  • Sort Ascending
  • Sort Descending
  • Clear Sorting
  • Filter
      • No Filter, (blank)
      • Contains, (xxx) or ("xxx")
      • Starts With, (xxx*)
      • Ends With, (*xxx)
      • Equal To, (=xxx)
      • Greater Than Or Equal To, (>=xxx)
      • Less Than Or Equal To, (<=xxx)
      • No Filter, (blank)
      • Contains, (xxx) or ("xxx")
      • Starts With, (xxx*)
      • Ends With, (*xxx)
      • Equal To, (=xxx)
      • Greater Than Or Equal To, (>=xxx)
      • Less Than Or Equal To, (<=xxx)
June 2026
June 2026
31123456
78910111213
14151617181920
21222324252627
2829301234
567891011
Top

Your Complete Tool Making Authority ®

ARCH Cutting Tools Logo
  • (888) 390-2025
  • Standard Tools
  • Special Tools
  • Services
  • My Account
  • Contact Us
  • Find a Distributor
© 2026 ARCH Cutting Tools | All Rights Reserved
  • Privacy Policy
  • CCPA Request
  • Sitemap
  • Machine Readable Files
Loading...
