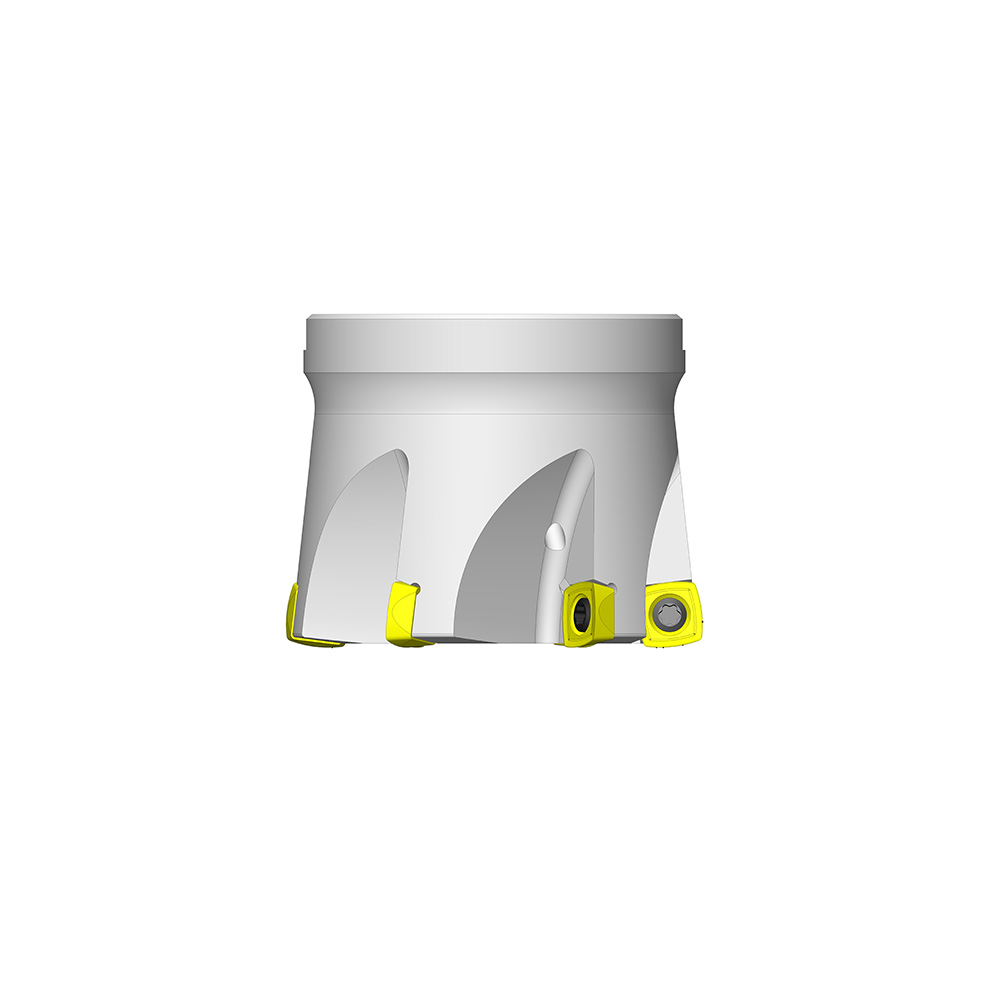

High Feed Mill, Indexable

Part Number		Purchase
High Feed Mill, Indexable. About this grid. Use spreadsheet functions to search the grid: Click the column title to sort the rows. Sorting may be done on multiple columns in either ascending or descending order. Right-click on the column heading to show a context menu. The menu allows you to sort or clear the sorting for a column. The list may be filtered using the filter function within the context menu. The filter may be cleared by pressing the "Clear Filter" button. Once you have found the product your interested in: Enter the quantity you would like to purchase and your desired ship date. Press the “Check Price And Availability” graphic. The system will look up your specific pricing for that quantity and a projected ship date based on our inventory and production capacity. Press the “Add This to My Cart” graphic to place the quantity of the item in your shopping cart, along with the requested ship date.

970-000-107 104-PM3-1.50-4-.500-10	PATRIOT HP® 970 (PM3-1.50-4-.500-10), PM3 Ø1-1/2" High Performance High Feed Indexable Face Mill (KAPR 10°), Coolant Thru UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.0390DCB (Connection Bore Diameter):0.5000DCmax (Cutting Diameter Maximum):1.5000DCmin (Cutting Diameter Minimum):1.0350KAPR (Entering Angle):10.0LF (Functional Length):1.7500RPmx (Max Ramping Angle):1.2000Zc (Cutting Edge Count):4DCONms (Connection Diameter Machine Side):0.5000ZcEff (Cutting Edge Count Effective):4BMC (Tool Material):SteelCoolant Thru:Yes	$513.42 Quantity Spin Up Spin Down Quantity is Required
970-000-107 104-PM3-1.50-4-.500-10	PATRIOT HP® 970 (PM3-1.50-4-.500-10), PM3 Ø1-1/2" High Performance High Feed Indexable Face Mill (KAPR 10°), Coolant Thru UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.0390DCB (Connection Bore Diameter):0.5000DCmax (Cutting Diameter Maximum):1.5000DCmin (Cutting Diameter Minimum):1.0350KAPR (Entering Angle):10.0LF (Functional Length):1.7500RPmx (Max Ramping Angle):1.2000Zc (Cutting Edge Count):4DCONms (Connection Diameter Machine Side):0.5000ZcEff (Cutting Edge Count Effective):4BMC (Tool Material):SteelCoolant Thru:Yes	$513.42 Quantity Spin Up Spin Down Quantity is Required
970-000-108 104-PM3-2.00-5-.750-10	PATRIOT HP® 970 (PM3-2.00-5-.750-10), PM3 Ø2" High Performance High Feed Indexable Face Mill (KAPR 10°), Coolant Thru UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.0390DCB (Connection Bore Diameter):0.7500DCmax (Cutting Diameter Maximum):2.0000DCmin (Cutting Diameter Minimum):1.5350KAPR (Entering Angle):10.0LF (Functional Length):1.7500RPmx (Max Ramping Angle):0.9000Zc (Cutting Edge Count):5DCONms (Connection Diameter Machine Side):0.7500ZcEff (Cutting Edge Count Effective):5BMC (Tool Material):SteelCoolant Thru:Yes	$612.72 Quantity Spin Up Spin Down Quantity is Required
970-000-109 104-PM3-2.50-6-1.00-10	PATRIOT HP® 970 (PM3-2.50-6-1.00-10), PM3 Ø2-1/2" High Performance High Feed Indexable Face Mill (KAPR 10°), Coolant Thru UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.0390DCB (Connection Bore Diameter):1.0000DCmax (Cutting Diameter Maximum):2.5000DCmin (Cutting Diameter Minimum):2.0350KAPR (Entering Angle):10.0LF (Functional Length):2.0000RPmx (Max Ramping Angle):0.8000Zc (Cutting Edge Count):6DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):6BMC (Tool Material):SteelCoolant Thru:Yes	$664.91 Quantity Spin Up Spin Down Quantity is Required
