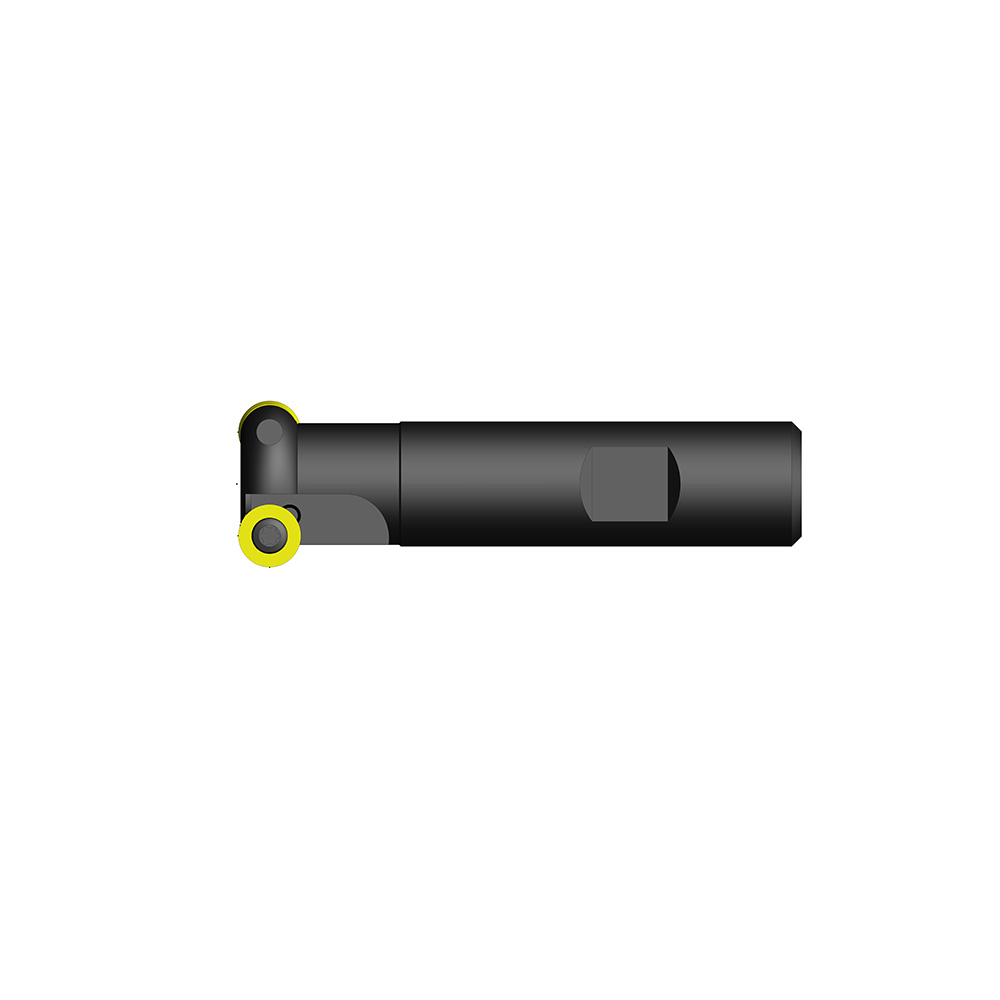

946 ER Indexable Profile / Button Mill

Part Number		Purchase
946 ER Indexable Profile / Button Mill. About this grid. Use spreadsheet functions to search the grid: Click the column title to sort the rows. Sorting may be done on multiple columns in either ascending or descending order. Right-click on the column heading to show a context menu. The menu allows you to sort or clear the sorting for a column. The list may be filtered using the filter function within the context menu. The filter may be cleared by pressing the "Clear Filter" button. Once you have found the product your interested in: Enter the quantity you would like to purchase and your desired ship date. Press the “Check Price And Availability” graphic. The system will look up your specific pricing for that quantity and a projected ship date based on our inventory and production capacity. Press the “Add This to My Cart” graphic to place the quantity of the item in your shopping cart, along with the requested ship date.

946-000-022 104-ER-D.750-2-.750-08	ULTRA-DEX® 946 (ER-D.750-2-.750-08), ER Ø3/4" Indexable Profile / Button Mill, Weldon Shank, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.1575BD (Body Diameter):0.7200DCmax (Cutting Diameter Maximum):0.7500DCmin (Cutting Diameter Minimum):0.4360LF (Functional Length):3.3800Re (Cutting Edge Corner Radius):0.1575Zc (Cutting Edge Count):2DCONms (Connection Diameter Machine Side):0.7500ZcEff (Cutting Edge Count Effective):2ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$249.33 Quantity Spin Up Spin Down Quantity is Required
946-000-023 104-ER-D.750-2-.750-2	ULTRA-DEX® 946 (ER-D.750-2-.750-2), ER Ø3/4" Indexable Profile / Button Mill, Weldon Shank, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.1250BD (Body Diameter):0.7200DCmax (Cutting Diameter Maximum):0.7500DCmin (Cutting Diameter Minimum):0.5000LF (Functional Length):3.3800Re (Cutting Edge Corner Radius):0.1250Zc (Cutting Edge Count):2DCONms (Connection Diameter Machine Side):0.7500ZcEff (Cutting Edge Count Effective):2ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$249.33 Quantity Spin Up Spin Down Quantity is Required
946-000-024 104-ER-D1.00-2-.750-08	ULTRA-DEX® 946 (ER-D1.00-2-.750-08), ER Ø1" Indexable Profile / Button Mill, Weldon Shank, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.1575BD (Body Diameter):0.7300DCmax (Cutting Diameter Maximum):1.0000DCmin (Cutting Diameter Minimum):0.6860LF (Functional Length):3.3800Re (Cutting Edge Corner Radius):0.1575Zc (Cutting Edge Count):2DCONms (Connection Diameter Machine Side):0.7500ZcEff (Cutting Edge Count Effective):2ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$270.26 Quantity Spin Up Spin Down Quantity is Required
946-000-025 104-ER-D1.00-2-.750-10	ULTRA-DEX® 946 (ER-D1.00-2-.750-10), ER Ø1" Indexable Profile / Button Mill, Weldon Shank, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.1969BD (Body Diameter):0.7300DCmax (Cutting Diameter Maximum):1.0000DCmin (Cutting Diameter Minimum):0.6060LF (Functional Length):3.3800Re (Cutting Edge Corner Radius):0.1969Zc (Cutting Edge Count):2DCONms (Connection Diameter Machine Side):0.7500ZcEff (Cutting Edge Count Effective):2ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$270.26 Quantity Spin Up Spin Down Quantity is Required
946-000-026 104-ER-D1.00-2-.750-2	ULTRA-DEX® 946 (ER-D1.00-2-.750-2), ER Ø1" Indexable Profile / Button Mill, Weldon Shank, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.1250BD (Body Diameter):0.7300DCmax (Cutting Diameter Maximum):1.0000DCmin (Cutting Diameter Minimum):0.7500LF (Functional Length):3.3800Re (Cutting Edge Corner Radius):0.1250Zc (Cutting Edge Count):2DCONms (Connection Diameter Machine Side):0.7500ZcEff (Cutting Edge Count Effective):2ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$270.26 Quantity Spin Up Spin Down Quantity is Required
946-000-027 104-ER-D1.00-2-.750-3	ULTRA-DEX® 946 (ER-D1.00-2-.750-3), ER Ø1" Indexable Profile / Button Mill, Weldon Shank, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.1875BD (Body Diameter):0.7300DCmax (Cutting Diameter Maximum):1.0000DCmin (Cutting Diameter Minimum):0.6250LF (Functional Length):3.3800Re (Cutting Edge Corner Radius):0.1875Zc (Cutting Edge Count):2DCONms (Connection Diameter Machine Side):0.7500ZcEff (Cutting Edge Count Effective):2ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.7500 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$270.26 Quantity Spin Up Spin Down Quantity is Required
946-000-028 104-ER-D1.25-2-1.00-3	ULTRA-DEX® 946 (ER-D1.25-2-1.00-3), ER Ø1-1/4" Indexable Profile / Button Mill, Weldon Shank, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.1875BD (Body Diameter):0.9800DCmax (Cutting Diameter Maximum):1.2500DCmin (Cutting Diameter Minimum):0.8750LF (Functional Length):4.0000Re (Cutting Edge Corner Radius):0.1875Zc (Cutting Edge Count):2DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):2ADINTms (Connection Type Machine Side):Straight Shank - Imperial 1.0000 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$291.18 Quantity Spin Up Spin Down Quantity is Required
946-000-029 104-ER-D1.25-3-1.00-10	ULTRA-DEX® 946 (ER-D1.25-3-1.00-10), ER Ø1-1/4" Indexable Profile / Button Mill, Weldon Shank, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.1969BD (Body Diameter):0.9800DCmax (Cutting Diameter Maximum):1.2500DCmin (Cutting Diameter Minimum):0.8560LF (Functional Length):4.0000Re (Cutting Edge Corner Radius):0.1969Zc (Cutting Edge Count):3DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):3ADINTms (Connection Type Machine Side):Straight Shank - Imperial 1.0000 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$291.18 Quantity Spin Up Spin Down Quantity is Required
946-000-030 104-ER-D1.50-3-1.00-12	ULTRA-DEX® 946 (ER-D1.50-3-1.00-12), ER Ø1-1/2" Indexable Profile / Button Mill, Weldon Shank, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.2362BD (Body Diameter):0.9800DCmax (Cutting Diameter Maximum):1.5000DCmin (Cutting Diameter Minimum):1.0280LF (Functional Length):4.0000Re (Cutting Edge Corner Radius):0.2362Zc (Cutting Edge Count):3DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):3ADINTms (Connection Type Machine Side):Straight Shank - Imperial 1.0000 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$333.01 Quantity Spin Up Spin Down Quantity is Required
946-000-031 104-ER-D1.50-3-1.00-4	ULTRA-DEX® 946 (ER-D1.50-3-1.00-4), ER Ø1-1/2" Indexable Profile / Button Mill, Weldon Shank, No Coolant UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.2500BD (Body Diameter):0.9800DCmax (Cutting Diameter Maximum):1.5000DCmin (Cutting Diameter Minimum):1.0000LF (Functional Length):4.0000Re (Cutting Edge Corner Radius):0.2500Zc (Cutting Edge Count):3DCONms (Connection Diameter Machine Side):1.0000ZcEff (Cutting Edge Count Effective):3ADINTms (Connection Type Machine Side):Straight Shank - Imperial 1.0000 - with Weldon FlatBMC (Tool Material):SteelCoolant Thru:No	$333.01 Quantity Spin Up Spin Down Quantity is Required
