Square Shank

Filter

0.7500

1.0000

0.7500

1.0000

4.5000

6.0000

0.9350

1.0500

1.3000

Part Number		Purchase
Square Shank. About this grid. Use spreadsheet functions to search the grid: Click the column title to sort the rows. Sorting may be done on multiple columns in either ascending or descending order. Right-click on the column heading to show a context menu. The menu allows you to sort or clear the sorting for a column. The list may be filtered using the filter function within the context menu. The filter may be cleared by pressing the "Clear Filter" button. Once you have found the product your interested in: Enter the quantity you would like to purchase and your desired ship date. Press the “Check Price And Availability” graphic. The system will look up your specific pricing for that quantity and a projected ship date based on our inventory and production capacity. Press the “Add This to My Cart” graphic to place the quantity of the item in your shopping cart, along with the requested ship date.

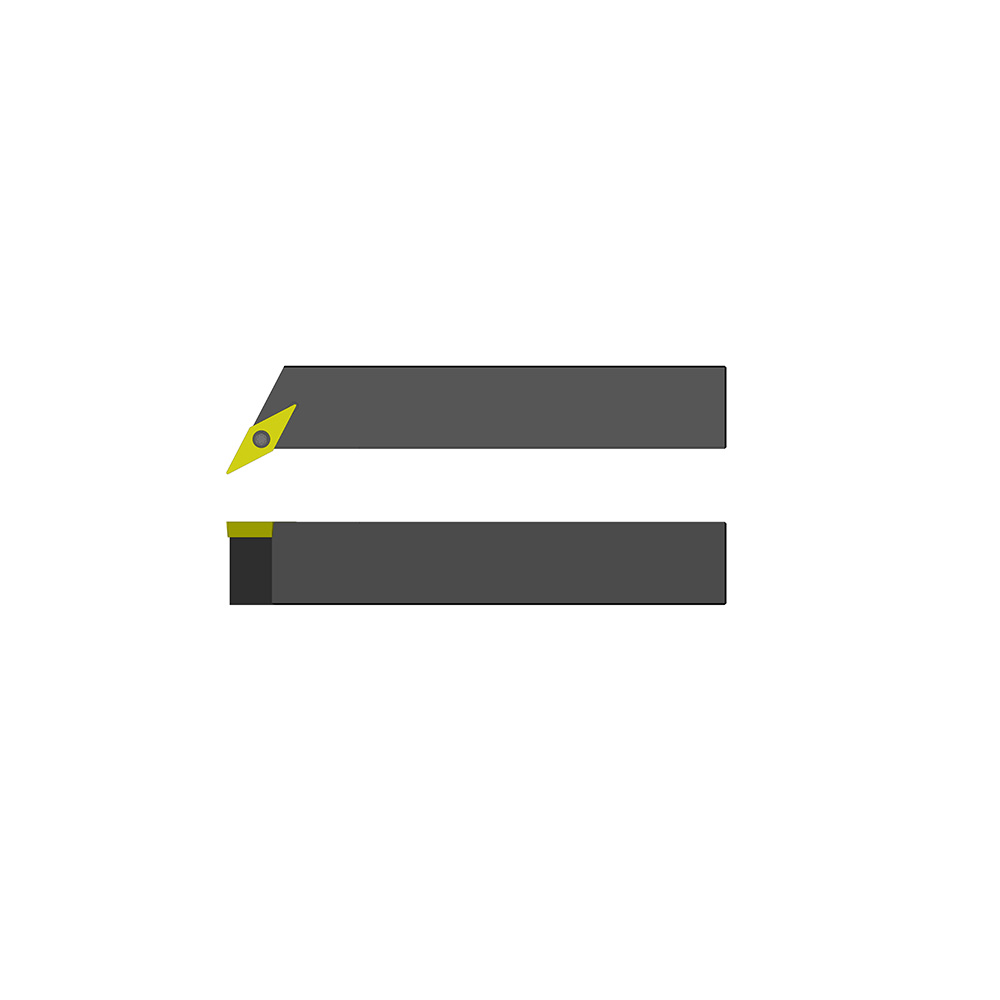

974-000-314 104-SVTBL 12-2B	ULTRA-DEX® 974 (SVTBL 12-2B), 3/4" Square Shank Indexable OD Turning Tool Holder,Negative 35° Diamond (KAPR 118°), Left Hand, No Coolant UM (Unit of Measure):ImperialB (Shank Width):0.7500H (Shank Height):0.7500HF:0.7500KAPR (Entering Angle):117.5LF (Functional Length):4.5000WF (Functional Width):0.9350ADINTms (Connection Type Machine Side):Square Shank - Imperial: 0.7500 x 0.7500BMC (Tool Material):SteelCoolant Thru:No	$105.77 Quantity Spin Up Spin Down Quantity is Required
974-000-315 104-SVTBL 12-3B	ULTRA-DEX® 974 (SVTBL 12-3B), 3/4" Square Shank Indexable OD Turning Tool Holder,Negative 35° Diamond (KAPR 118°), Left Hand, No Coolant UM (Unit of Measure):ImperialB (Shank Width):0.7500H (Shank Height):0.7500HF:0.7500KAPR (Entering Angle):117.5LF (Functional Length):4.5000WF (Functional Width):1.0500ADINTms (Connection Type Machine Side):Square Shank - Imperial: 0.7500 x 0.7500BMC (Tool Material):SteelCoolant Thru:No	$105.77 Quantity Spin Up Spin Down Quantity is Required
974-000-316 104-SVTBL 16-3D	ULTRA-DEX® 974 (SVTBL 16-3D), 1" Square Shank Indexable OD Turning Tool Holder,Negative 35° Diamond (KAPR 118°), Left Hand, No Coolant UM (Unit of Measure):ImperialB (Shank Width):1.0000H (Shank Height):1.0000HF:1.0000KAPR (Entering Angle):117.5LF (Functional Length):6.0000WF (Functional Width):1.3000ADINTms (Connection Type Machine Side):Square Shank - Imperial: 1.0000 x 1.0000BMC (Tool Material):SteelCoolant Thru:No	$116.36 Quantity Spin Up Spin Down Quantity is Required
974-000-317 104-SVTBR 12-2B	ULTRA-DEX® 974 (SVTBR 12-2B), 3/4" Square Shank Indexable OD Turning Tool Holder,Negative 35° Diamond (KAPR 118°), Right Hand, No Coolant UM (Unit of Measure):ImperialB (Shank Width):0.7500H (Shank Height):0.7500HF:0.7500KAPR (Entering Angle):117.5LF (Functional Length):4.5000WF (Functional Width):0.9350ADINTms (Connection Type Machine Side):Square Shank - Imperial: 0.7500 x 0.7500BMC (Tool Material):SteelCoolant Thru:No	$105.77 Quantity Spin Up Spin Down Quantity is Required
974-000-318 104-SVTBR 12-3B	ULTRA-DEX® 974 (SVTBR 12-3B), 3/4" Square Shank Indexable OD Turning Tool Holder,Negative 35° Diamond (KAPR 118°), Right Hand, No Coolant UM (Unit of Measure):ImperialB (Shank Width):0.7500H (Shank Height):0.7500HF:0.7500KAPR (Entering Angle):117.5LF (Functional Length):4.5000WF (Functional Width):1.0500ADINTms (Connection Type Machine Side):Square Shank - Imperial: 0.7500 x 0.7500BMC (Tool Material):SteelCoolant Thru:No	$105.77 Quantity Spin Up Spin Down Quantity is Required
974-000-319 104-SVTBR 16-3D	ULTRA-DEX® 974 (SVTBR 16-3D), 1" Square Shank Indexable OD Turning Tool Holder,Negative 35° Diamond (KAPR 118°), Right Hand, No Coolant UM (Unit of Measure):ImperialB (Shank Width):1.0000H (Shank Height):1.0000HF:1.0000KAPR (Entering Angle):117.5LF (Functional Length):6.0000WF (Functional Width):1.3000ADINTms (Connection Type Machine Side):Square Shank - Imperial: 1.0000 x 1.0000BMC (Tool Material):SteelCoolant Thru:No	$116.36 Quantity Spin Up Spin Down Quantity is Required
