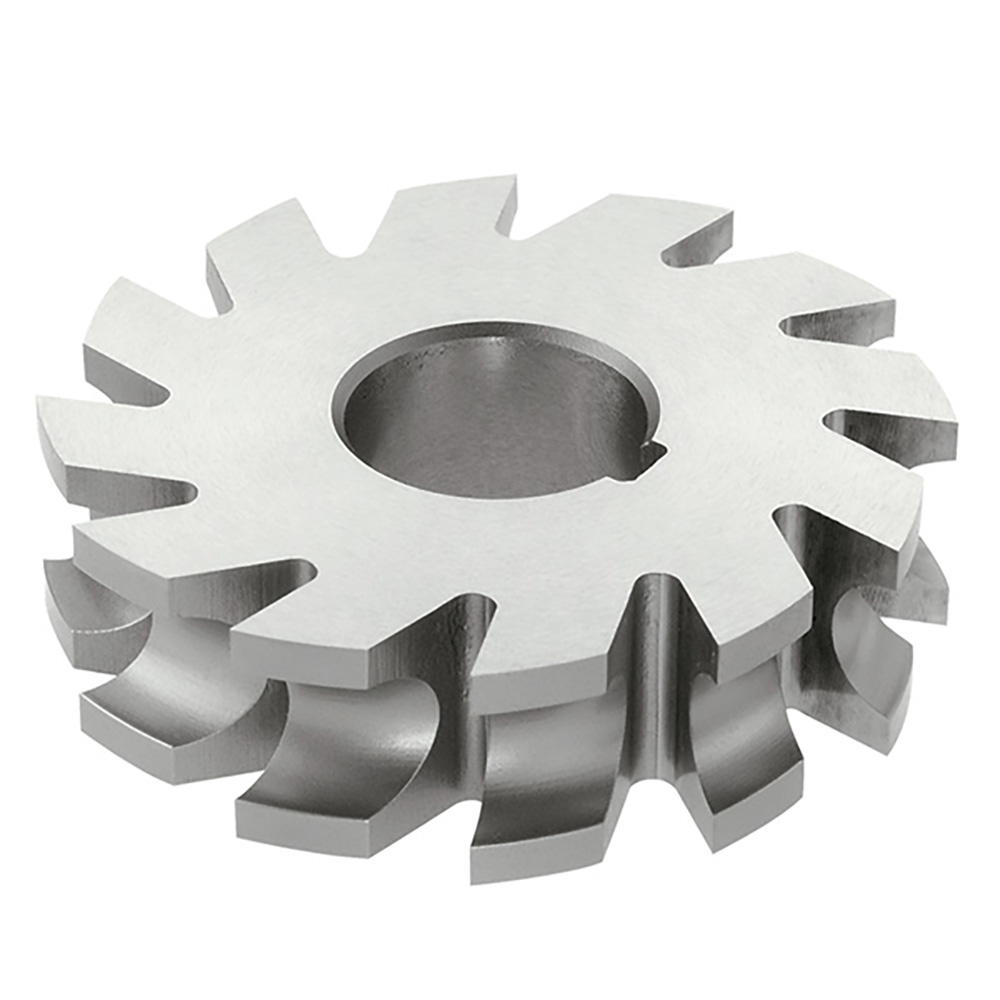

Concave, Arbor

Filter

Concave, Arbor. About this grid.
Use spreadsheet functions to search the grid:
  • Click the column title to sort the rows. Sorting may be done on multiple columns in either ascending or descending order.
  • Right-click on the column heading to show a context menu. The menu allows you to sort or clear the sorting for a column.
  • The list may be filtered using the filter function within the context menu. The filter may be cleared by pressing the "Clear Filter" button.
Once you have found the product your interested in:
  • Enter the quantity you would like to purchase and your desired ship date. Press the “Check Price And Availability” graphic. The system will look up your specific pricing for that quantity and a projected ship date based on our inventory and production capacity.
  • Press the “Add This to My Cart” graphic to place the quantity of the item in your shopping cart, along with the requested ship date.
Part Number Purchase

904-000-005
105-13900

KEO® 904 HSS Concave Cutter, R1/16, Ø2-1/4 x 1/4 x Ø1, 16 Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.2500CW (Cutting Width):0.2500R (Radius):0.0625THUB (Width of Hub):0.2500Zc (Cutting Edge Count):16DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $163.35

Quantity
Spin UpSpin Down
Quantity is Required
904-000-012
105-13901

KEO® 904 HSS Concave Cutter, R1/16, Ø2-1/4 x 1/4 x Ø1, 16 Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.2500CW (Cutting Width):0.2500R (Radius):0.0625THUB (Width of Hub):0.2500Zc (Cutting Edge Count):16DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $187.09

Quantity
Spin UpSpin Down
Quantity is Required
904-000-029
105-13910

KEO® 904 HSS Concave Cutter, R3/32, Ø2-1/4 x 3/8 x Ø1, 16 Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.2500CW (Cutting Width):0.3750R (Radius):0.0938THUB (Width of Hub):0.3750Zc (Cutting Edge Count):16DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $179.68

Quantity
Spin UpSpin Down
Quantity is Required
904-000-032
105-13911

KEO® 904 HSS Concave Cutter, R3/32, Ø2-1/4 x 3/8 x Ø1, 16 Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.2500CW (Cutting Width):0.3750R (Radius):0.0938THUB (Width of Hub):0.3750Zc (Cutting Edge Count):16DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $205.76

Quantity
Spin UpSpin Down
Quantity is Required
904-000-033
105-13920

KEO® 904 HSS Concave Cutter, R1/8, Ø2-1/2 x 7/16 x Ø1, 14 Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.5000CW (Cutting Width):0.4375R (Radius):0.1250THUB (Width of Hub):0.4375Zc (Cutting Edge Count):14DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $200.84

Quantity
Spin UpSpin Down
Quantity is Required
904-000-036
105-13921

KEO® 904 HSS Concave Cutter, R1/8, Ø2-1/2 x 7/16 x Ø1, 14 Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.5000CW (Cutting Width):0.4375R (Radius):0.1250THUB (Width of Hub):0.4375Zc (Cutting Edge Count):14DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $229.98

Quantity
Spin UpSpin Down
Quantity is Required
904-000-037
105-13930

KEO® 904 HSS Concave Cutter, R5/32, Ø2-3/4 x 9/16 x Ø1, 14 Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.7500CW (Cutting Width):0.5625R (Radius):0.1563THUB (Width of Hub):0.5625Zc (Cutting Edge Count):14DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $247.39

Quantity
Spin UpSpin Down
Quantity is Required
904-000-040
105-13931

KEO® 904 HSS Concave Cutter, R5/32, Ø2-3/4 x 9/16 x Ø1, 14 Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.7500CW (Cutting Width):0.5625R (Radius):0.1563THUB (Width of Hub):0.5625Zc (Cutting Edge Count):14DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $283.06

Quantity
Spin UpSpin Down
Quantity is Required
904-000-041
105-13940

KEO® 904 HSS Concave Cutter, R3/16, Ø2-3/4 x 5/8 x Ø1, 12 Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.7500CW (Cutting Width):0.6250R (Radius):0.1875THUB (Width of Hub):0.6250Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $247.39

Quantity
Spin UpSpin Down
Quantity is Required
904-000-044
105-13941

KEO® 904 HSS Concave Cutter, R3/16, Ø2-3/4 x 5/8 x Ø1, 12 Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.7500CW (Cutting Width):0.6250R (Radius):0.1875THUB (Width of Hub):0.6250Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $283.06

Quantity
Spin UpSpin Down
Quantity is Required
904-000-045
105-13950

KEO® 904 HSS Concave Cutter, R7/32, Ø3 x 3/4 x Ø1, 12 Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):3.0000CW (Cutting Width):0.7500R (Radius):0.2188THUB (Width of Hub):0.7500Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $307.64

Quantity
Spin UpSpin Down
Quantity is Required
904-000-048
105-13951

KEO® 904 HSS Concave Cutter, R7/32, Ø3 x 3/4 x Ø1, 12 Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):3.0000CW (Cutting Width):0.7500R (Radius):0.2188THUB (Width of Hub):0.7500Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $351.95

Quantity
Spin UpSpin Down
Quantity is Required
904-000-049
105-13960

KEO® 904 HSS Concave Cutter, R1/4, Ø3 x 13/16 x Ø1, 12 Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):3.0000CW (Cutting Width):0.8125R (Radius):0.2500THUB (Width of Hub):0.8125Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $317.53

Quantity
Spin UpSpin Down
Quantity is Required
904-000-052
105-13961

KEO® 904 HSS Concave Cutter, R1/4, Ø3 x 13/16 x Ø1, 12 Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):3.0000CW (Cutting Width):0.8125R (Radius):0.2500THUB (Width of Hub):0.8125Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $363.34

Quantity
Spin UpSpin Down
Quantity is Required
904-000-053
105-13970

KEO® 904 HSS Concave Cutter, R5/16, Ø3-1/2 x 1 x Ø1-1/4, 12 Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):3.5000CW (Cutting Width):1.0000R (Radius):0.3125THUB (Width of Hub):1.0000Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $418.47

Quantity
Spin UpSpin Down
Quantity is Required
904-000-056
105-13971

KEO® 904 HSS Concave Cutter, R5/16, Ø3-1/2 x 1 x Ø1-1/4, 12 Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):3.5000CW (Cutting Width):1.0000R (Radius):0.3125THUB (Width of Hub):1.0000Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $478.87

Quantity
Spin UpSpin Down
Quantity is Required
904-000-057
105-13980

KEO® 904 HSS Concave Cutter, R3/8, Ø3-3/4 x 1-3/16 x Ø1-1/4, 12 Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):3.7500CW (Cutting Width):1.1875R (Radius):0.3750THUB (Width of Hub):1.1875Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $526.40

Quantity
Spin UpSpin Down
Quantity is Required
904-000-060
105-13981

KEO® 904 HSS Concave Cutter, R3/8, Ø3-3/4 x 1-3/16 x Ø1-1/4, 12 Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):3.7500CW (Cutting Width):1.1875R (Radius):0.3750THUB (Width of Hub):1.1875Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $591.18

Quantity
Spin UpSpin Down
Quantity is Required
904-000-001
105-13990

KEO® 904 HSS Concave Cutter, R7/16, Ø4 x 1-3/8 x Ø1-1/4, 12 Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):4.0000CW (Cutting Width):1.3750R (Radius):0.4375THUB (Width of Hub):1.3750Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $630.65

Quantity
Spin UpSpin Down
Quantity is Required
904-000-004
105-13991

KEO® 904 HSS Concave Cutter, R7/16, Ø4 x 1-3/8 x Ø1-1/4, 12 Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):4.0000CW (Cutting Width):1.3750R (Radius):0.4375THUB (Width of Hub):1.3750Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $721.81

Quantity
Spin UpSpin Down
Quantity is Required
904-000-006
105-14000

KEO® 904 HSS Concave Cutter, R1/2, Ø4-1/4 x 1-9/16 x Ø1-1/4, 10 Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):4.2500CW (Cutting Width):1.5625R (Radius):0.5000THUB (Width of Hub):1.5625Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $753.66

Quantity
Spin UpSpin Down
Quantity is Required
904-000-009
105-14001

KEO® 904 HSS Concave Cutter, R1/2, Ø4-1/4 x 1-9/16 x Ø1-1/4, 10 Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):4.2500CW (Cutting Width):1.5625R (Radius):0.5000THUB (Width of Hub):1.5625Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $862.44

Quantity
Spin UpSpin Down
Quantity is Required
904-000-013
105-14010

KEO® 904 HSS Concave Cutter, R9/16, Ø4-1/4 x 1-11/16 x Ø1-1/4, 10 Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):4.2500CW (Cutting Width):1.6875R (Radius):0.5625THUB (Width of Hub):1.6875Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $1,019.57

Quantity
Spin UpSpin Down
Quantity is Required
904-000-016
105-14011

KEO® 904 HSS Concave Cutter, R9/16, Ø4-1/4 x 1-11/16 x Ø1-1/4, 10 Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):4.2500CW (Cutting Width):1.6875R (Radius):0.5625THUB (Width of Hub):1.6875Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $1,166.88

Quantity
Spin UpSpin Down
Quantity is Required
904-000-017
105-14020

KEO® 904 HSS Concave Cutter, R5/8, Ø4-1/2 x 1-7/8 x Ø1-1/4, 10 Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):4.5000CW (Cutting Width):1.8750R (Radius):0.6250THUB (Width of Hub):1.8750Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $1,086.85

Quantity
Spin UpSpin Down
Quantity is Required
904-000-020
105-14021

KEO® 904 HSS Concave Cutter, R5/8, Ø4-1/2 x 1-7/8 x Ø1-1/4, 10 Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):4.5000CW (Cutting Width):1.8750R (Radius):0.6250THUB (Width of Hub):1.8750Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $1,243.99

Quantity
Spin UpSpin Down
Quantity is Required
904-000-021
105-14030

KEO® 904 HSS Concave Cutter, R11/16, Ø4-3/4 x 2-1/16 x Ø1-1/4, 10 Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):4.7500CW (Cutting Width):2.0625R (Radius):0.6875THUB (Width of Hub):2.0625Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $1,225.61

Quantity
Spin UpSpin Down
Quantity is Required
904-000-024
105-14031

KEO® 904 HSS Concave Cutter, R11/16, Ø4-3/4 x 2-1/16 x Ø1-1/4, 10 Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):4.7500CW (Cutting Width):2.0625R (Radius):0.6875THUB (Width of Hub):2.0625Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $1,402.64

Quantity
Spin UpSpin Down
Quantity is Required
904-000-025
105-14040

KEO® 904 HSS Concave Cutter, R3/4, Ø5 x 2-1/4 x Ø1-1/4, 10 Teeth, Uncoated

UM (Unit of Measure):ImperialDC (Cut Diameter):5.0000CW (Cutting Width):2.2500R (Radius):0.7500THUB (Width of Hub):2.2500Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:UncoatedBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $1,312.32

Quantity
Spin UpSpin Down
Quantity is Required
904-000-028
105-14041

KEO® 904 HSS Concave Cutter, R3/4, Ø5 x 2-1/4 x Ø1-1/4, 10 Teeth, TiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):5.0000CW (Cutting Width):2.2500R (Radius):0.7500THUB (Width of Hub):2.2500Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:TiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $1,502.07

Quantity
Spin UpSpin Down
Quantity is Required
904-000-061
105-91420

KEO® 904 HSS Concave Cutter, R1/16, Ø2-1/4 x 1/4 x Ø1, 16 Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.2500CW (Cutting Width):0.2500R (Radius):0.0625THUB (Width of Hub):0.2500Zc (Cutting Edge Count):16DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $219.31

Quantity
Spin UpSpin Down
Quantity is Required
904-000-062
105-91421

KEO® 904 HSS Concave Cutter, R3/32, Ø2-1/4 x 3/8 x Ø1, 16 Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.2500CW (Cutting Width):0.3750R (Radius):0.0938THUB (Width of Hub):0.3750Zc (Cutting Edge Count):16DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $241.22

Quantity
Spin UpSpin Down
Quantity is Required
904-000-063
105-91422

KEO® 904 HSS Concave Cutter, R1/8, Ø2-1/2 x 7/16 x Ø1, 14 Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.5000CW (Cutting Width):0.4375R (Radius):0.1250THUB (Width of Hub):0.4375Zc (Cutting Edge Count):14DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $269.64

Quantity
Spin UpSpin Down
Quantity is Required
904-000-064
105-91423

KEO® 904 HSS Concave Cutter, R5/32, Ø2-3/4 x 9/16 x Ø1, 14 Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.7500CW (Cutting Width):0.5625R (Radius):0.1563THUB (Width of Hub):0.5625Zc (Cutting Edge Count):14DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $332.05

Quantity
Spin UpSpin Down
Quantity is Required
904-000-065
105-91424

KEO® 904 HSS Concave Cutter, R3/16, Ø2-3/4 x 5/8 x Ø1, 12 Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):2.7500CW (Cutting Width):0.6250R (Radius):0.1875THUB (Width of Hub):0.6250Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $332.05

Quantity
Spin UpSpin Down
Quantity is Required
904-000-066
105-91425

KEO® 904 HSS Concave Cutter, R7/32, Ø3 x 3/4 x Ø1, 12 Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):3.0000CW (Cutting Width):0.7500R (Radius):0.2188THUB (Width of Hub):0.7500Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $413.20

Quantity
Spin UpSpin Down
Quantity is Required
904-000-067
105-91426

KEO® 904 HSS Concave Cutter, R1/4, Ø3 x 13/16 x Ø1, 12 Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):3.0000CW (Cutting Width):0.8125R (Radius):0.2500THUB (Width of Hub):0.8125Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $426.52

Quantity
Spin UpSpin Down
Quantity is Required
904-000-068
105-91427

KEO® 904 HSS Concave Cutter, R5/16, Ø3-1/2 x 1 x Ø1-1/4, 12 Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):3.5000CW (Cutting Width):1.0000R (Radius):0.3125THUB (Width of Hub):1.0000Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $561.89

Quantity
Spin UpSpin Down
Quantity is Required
904-000-069
105-91428

KEO® 904 HSS Concave Cutter, R3/8, Ø3-3/4 x 1-3/16 x Ø1-1/4, 12 Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):3.7500CW (Cutting Width):1.1875R (Radius):0.3750THUB (Width of Hub):1.1875Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $693.91

Quantity
Spin UpSpin Down
Quantity is Required
904-000-070
105-91429

KEO® 904 HSS Concave Cutter, R7/16, Ø4 x 1-3/8 x Ø1-1/4, 12 Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):4.0000CW (Cutting Width):1.3750R (Radius):0.4375THUB (Width of Hub):1.3750Zc (Cutting Edge Count):12DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $846.91

Quantity
Spin UpSpin Down
Quantity is Required
904-000-071
105-91430

KEO® 904 HSS Concave Cutter, R1/2, Ø4-1/4 x 1-9/16 x Ø1-1/4, 10 Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):4.2500CW (Cutting Width):1.5625R (Radius):0.5000THUB (Width of Hub):1.5625Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $1,012.13

Quantity
Spin UpSpin Down
Quantity is Required
904-000-072
105-91431

KEO® 904 HSS Concave Cutter, R9/16, Ø4-1/4 x 1-11/16 x Ø1-1/4, 10 Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):4.2500CW (Cutting Width):1.6875R (Radius):0.5625THUB (Width of Hub):1.6875Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $1,369.20

Quantity
Spin UpSpin Down
Quantity is Required
904-000-073
105-91432

KEO® 904 HSS Concave Cutter, R5/8, Ø4-1/2 x 1-7/8 x Ø1-1/4, 10 Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):4.5000CW (Cutting Width):1.8750R (Radius):0.6250THUB (Width of Hub):1.8750Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $1,459.64

Quantity
Spin UpSpin Down
Quantity is Required
904-000-074
105-91433

KEO® 904 HSS Concave Cutter, R11/16, Ø4-3/4 x 2-1/16 x Ø1-1/4, 10 Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):4.7500CW (Cutting Width):2.0625R (Radius):0.6875THUB (Width of Hub):2.0625Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $1,645.72

Quantity
Spin UpSpin Down
Quantity is Required
904-000-075
105-91434

KEO® 904 HSS Concave Cutter, R3/4, Ø5 x 2-1/4 x Ø1-1/4, 10 Teeth, AlTiN Coated

UM (Unit of Measure):ImperialDC (Cut Diameter):5.0000CW (Cutting Width):2.2500R (Radius):0.7500THUB (Width of Hub):2.2500Zc (Cutting Edge Count):10DCONms (Connection Diameter Machine Side):1.2500ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.2500CONTYPE (Connection Type):ArborCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N
 $1,762.19

Quantity
Spin UpSpin Down
Quantity is Required
  • No Filter, (blank)
  • Contains, (xxx) or ("xxx")
  • Starts With, (xxx*)
  • Ends With, (*xxx)
  • Equal To, (=xxx)
  • Greater Than Or Equal To, (>=xxx)
  • Less Than Or Equal To, (<=xxx)
  • Between, (xxx yyy)
  • Sort Ascending
  • Sort Descending
  • Clear Sorting
  • Filter
      • No Filter, (blank)
      • Contains, (xxx) or ("xxx")
      • Starts With, (xxx*)
      • Ends With, (*xxx)
      • Equal To, (=xxx)
      • Greater Than Or Equal To, (>=xxx)
      • Less Than Or Equal To, (<=xxx)
      • No Filter, (blank)
      • Contains, (xxx) or ("xxx")
      • Starts With, (xxx*)
      • Ends With, (*xxx)
      • Equal To, (=xxx)
      • Greater Than Or Equal To, (>=xxx)
      • Less Than Or Equal To, (<=xxx)
June 2026
June 2026
31123456
78910111213
14151617181920
21222324252627
2829301234
567891011
Top

Your Complete Tool Making Authority ®

ARCH Cutting Tools Logo
  • (888) 390-2025
  • Standard Tools
  • Special Tools
  • Services
  • My Account
  • Contact Us
  • Find a Distributor
© 2026 ARCH Cutting Tools | All Rights Reserved
  • Privacy Policy
  • CCPA Request
  • Sitemap
  • Machine Readable Files
Loading...
