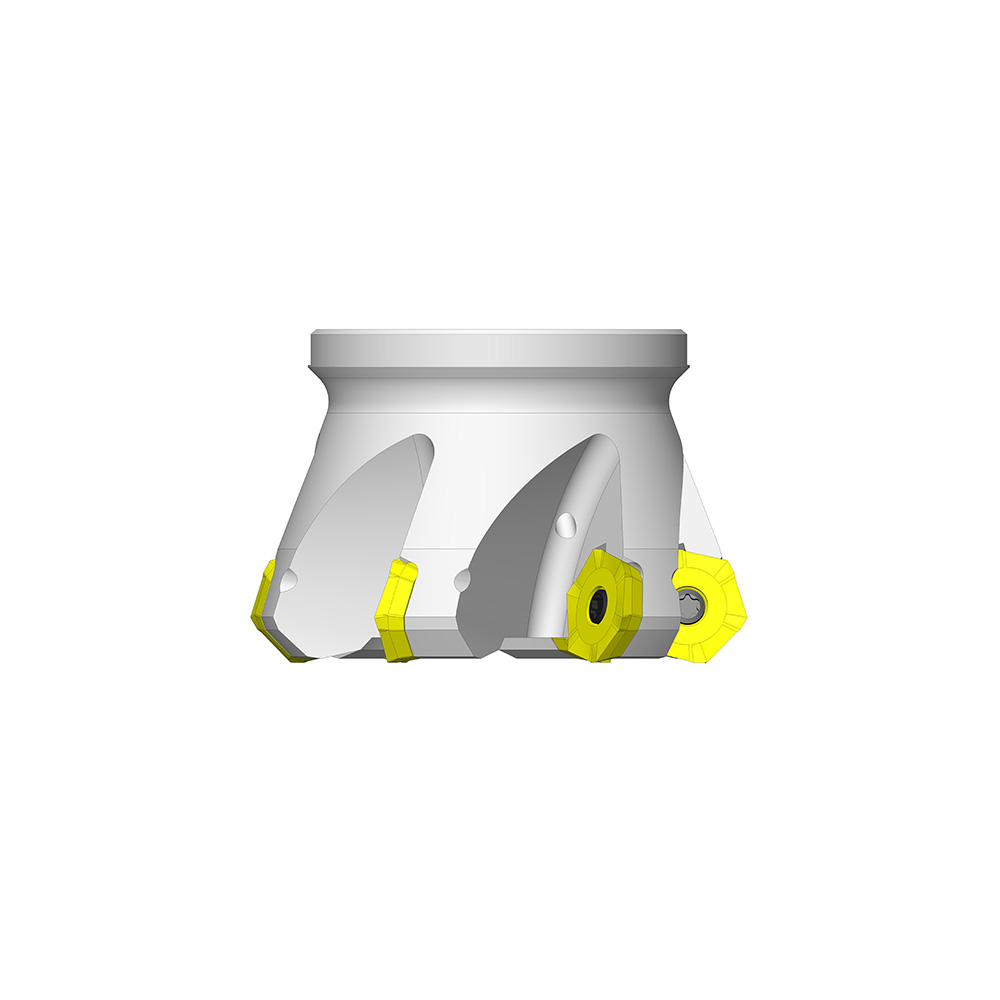

PATRIOT HP® 970 (PM4-1.50-4-.500-06), PM4 Ø1-1/2" High Performance Indexable Face Mill (KAPR 45°), Coolant Thru

Product Number: 970-000-110

PATRIOT HP® 970 (PM4-1.50-4-.500-06), PM4 Ø1-1/2" High Performance Indexable Face Mill (KAPR 45°), Coolant Thru

104-PM4-1.50-4-.500-06

Ready to Buy?

List Price: $518.47

Your Price: $518.47

Spin Up Spin Down

Overview

PATRIOT HP® 970 (PM4-1.50-4-.500-06), PM4 Ø1-1/2" High Performance Indexable Face Mill (KAPR 45°), Coolant Thru

Product Specs

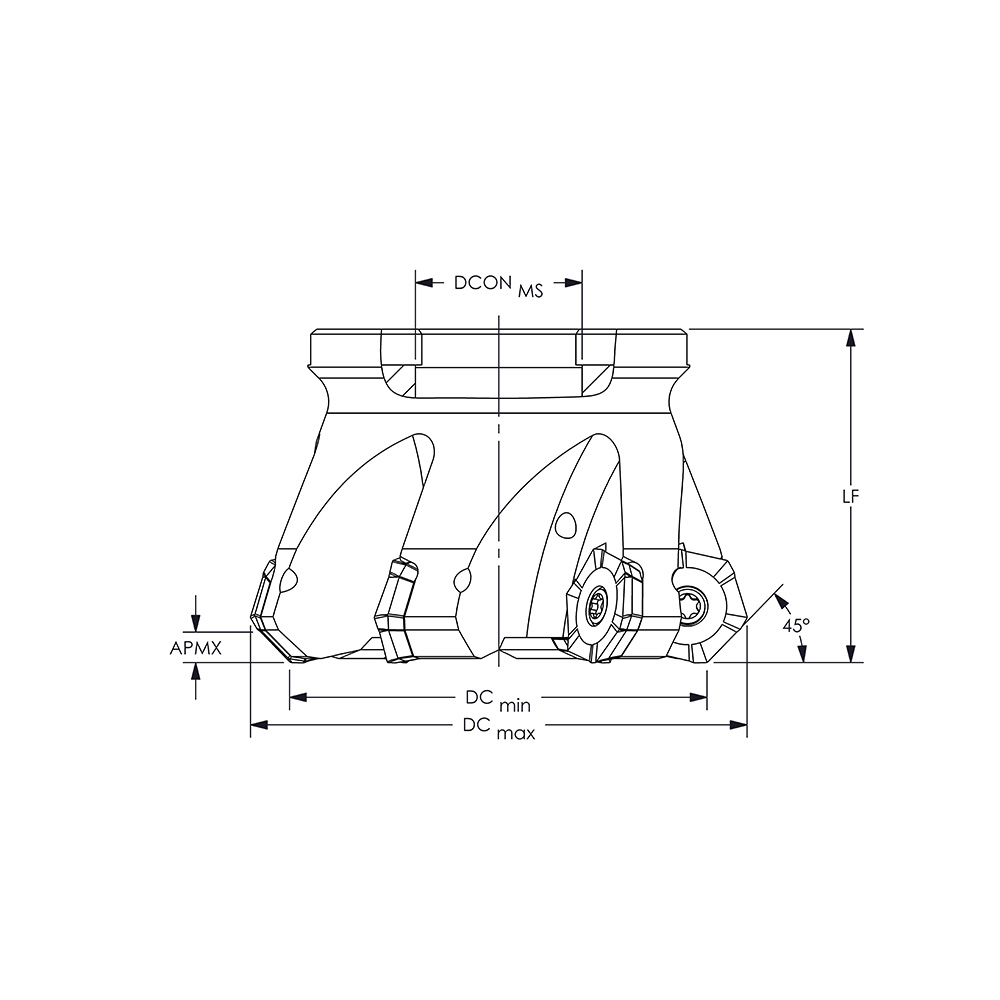

UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.1770DCB (Connection Bore Diameter):0.5000DCmax (Cutting Diameter Maximum):1.9800DCmin (Cutting Diameter Minimum):1.5000KAPR (Entering Angle):45.0LF (Functional Length):1.7500Zc (Cutting Edge Count):4DCONms (Connection Diameter Machine Side):0.5000ZcEff (Cutting Edge Count Effective):4BMC (Tool Material):SteelCoolant Thru:Yes

Ready to Buy?

Product Specs
