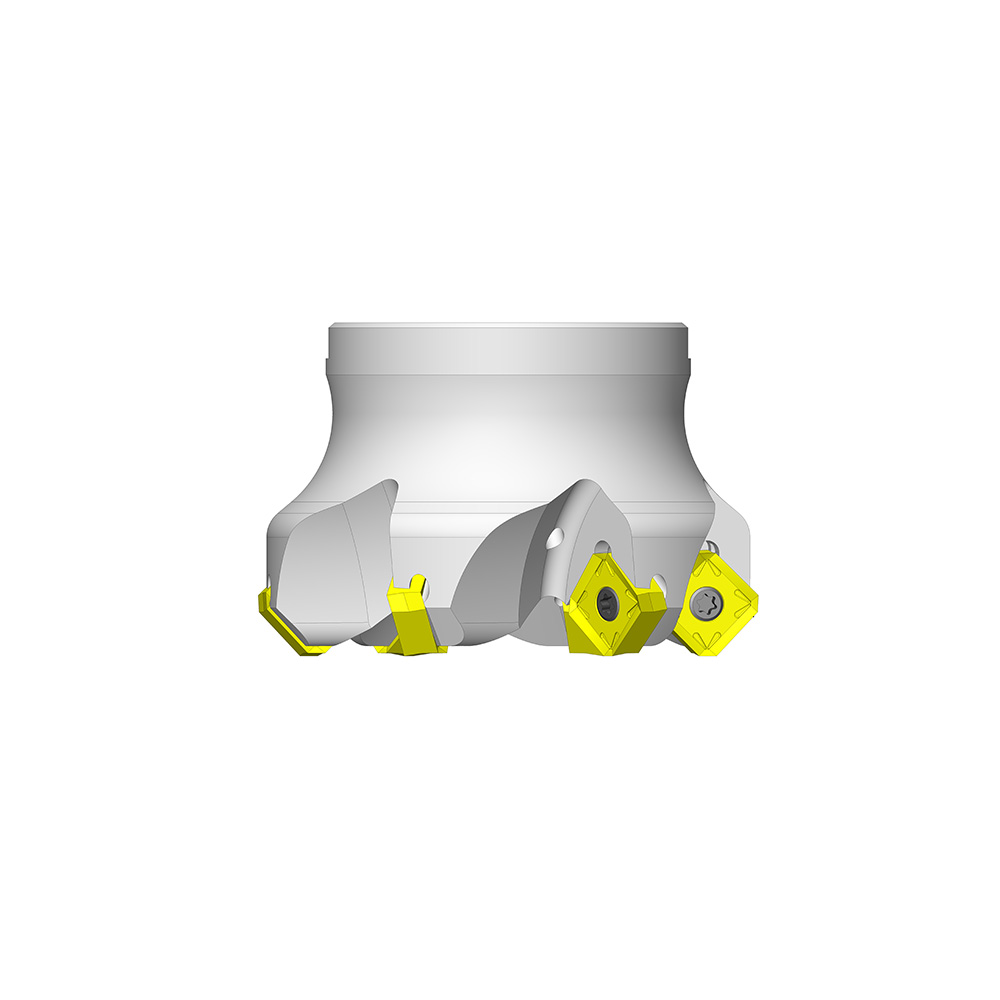

PATRIOT HP® 970 (PM1-1.25-3-.500-12), PM1 Ø1-1/4" High Performance Indexable Face Mill (KAPR 45°), Coolant Thru

Product Number: 970-000-092

PATRIOT HP® 970 (PM1-1.25-3-.500-12), PM1 Ø1-1/4" High Performance Indexable Face Mill (KAPR 45°), Coolant Thru

SKU: PM1-1.25-3-.500-12
104-PM1-1.25-3-.500-12

Ready to Buy?

List Price: $444.39

Your Price: $444.39

Spin Up Spin Down

Overview

PATRIOT HP® 970 (PM1-1.25-3-.500-12), PM1 Ø1-1/4" High Performance Indexable Face Mill (KAPR 45°), Coolant Thru

Product Specs

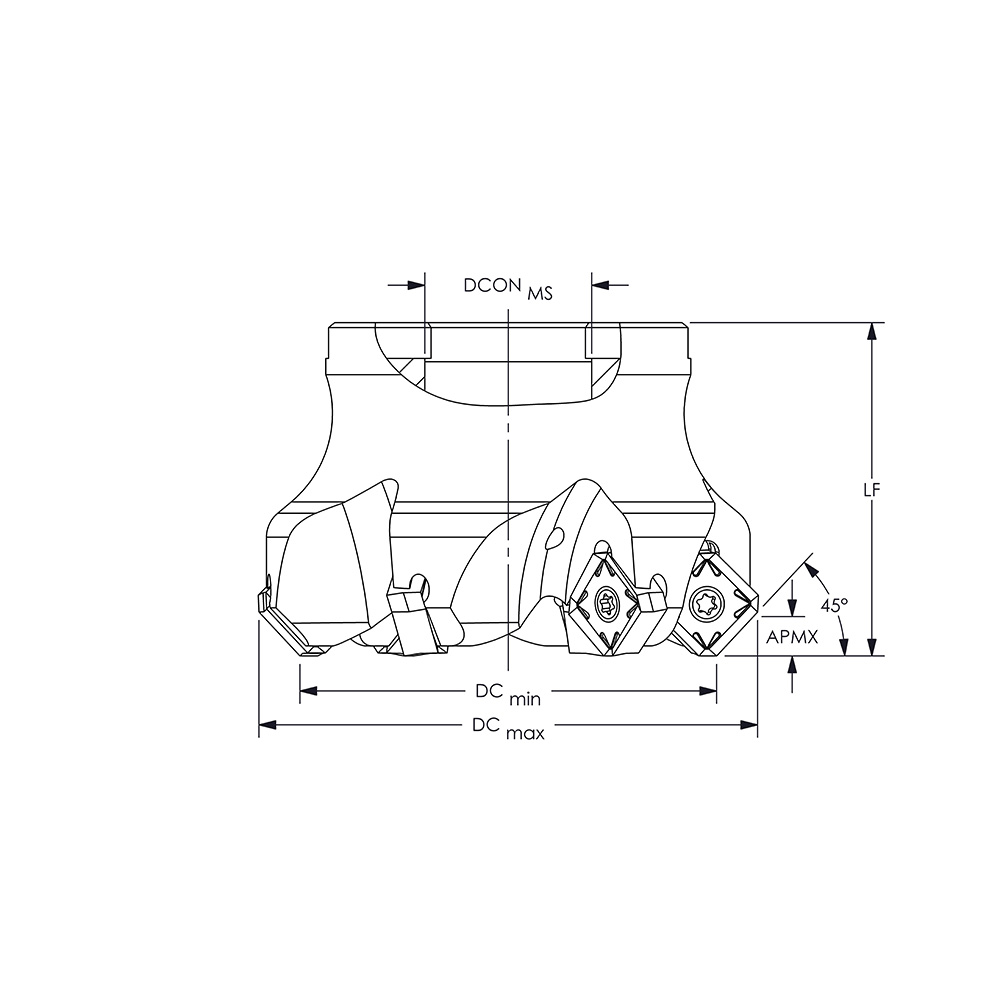

UM (Unit of Measure):ImperialAPmx (Max Axial Depth of Cut):0.2360DCB (Connection Bore Diameter):0.5000DCmax (Cutting Diameter Maximum):1.7380DCmin (Cutting Diameter Minimum):1.2500KAPR (Entering Angle):45.0LF (Functional Length):1.7500Zc (Cutting Edge Count):3DCONms (Connection Diameter Machine Side):0.5000ZcEff (Cutting Edge Count Effective):3BMC (Tool Material):SteelCoolant Thru:Yes
