ULTRA-DEX® 945 (MH12 SWLCL3), Ø3/4" Modular Head, Positive Trigon (KAPR 95°), Left Hand, Coolant Thru

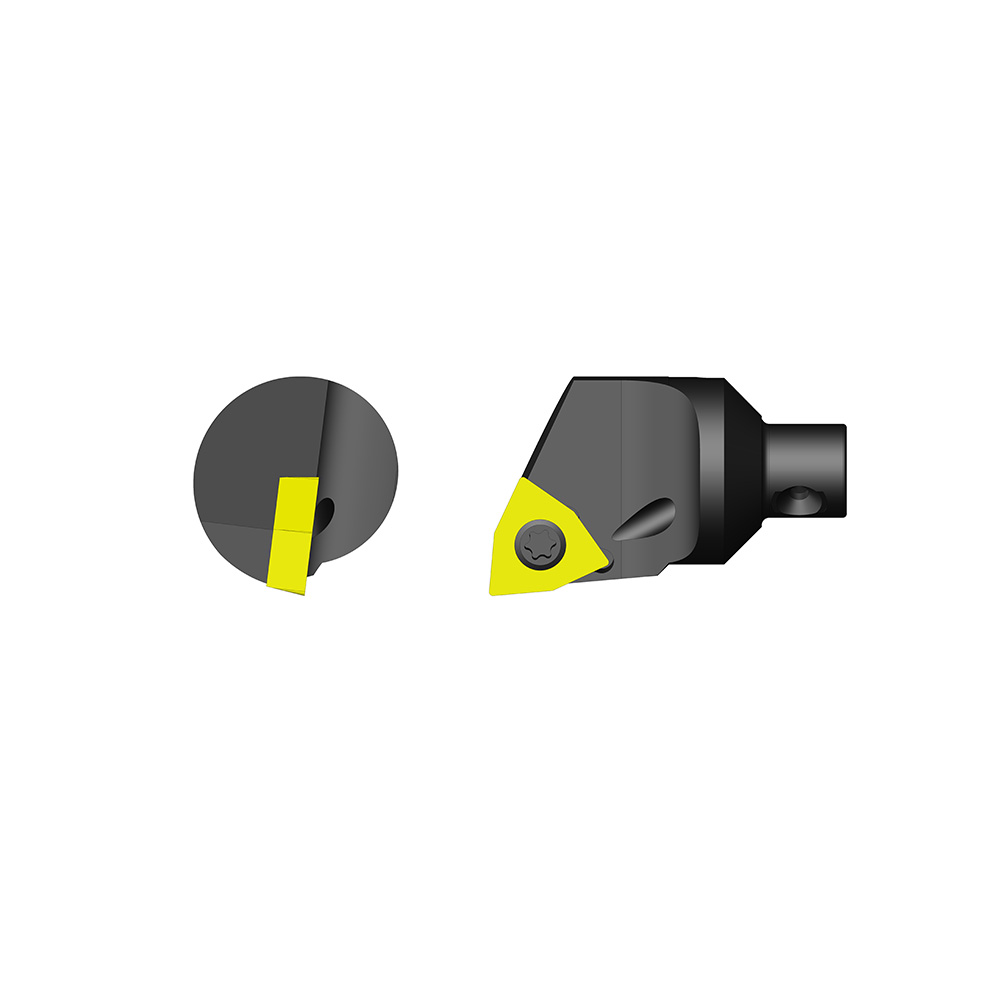

Photo of 945-000-037

Product Number: 945-000-037

ULTRA-DEX® 945 (MH12 SWLCL3), Ø3/4" Modular Head, Positive Trigon (KAPR 95°), Left Hand, Coolant Thru


104-MH12 SWLCL3

Ready to Buy?

Log in to obtain the best pricing and availability.
List Price: $136.74
Your Price: $136.74
Spin UpSpin Down
Quantity is Required Quantity must be a positive round number greater than Quantity must be in correct increments based on minimum value and increment steps. Min Value
  • Overview
ULTRA-DEX® 945 (MH12 SWLCL3), Ø3/4" Modular Head, Positive Trigon (KAPR 95°), Left Hand, Coolant Thru

Product Specs

UM (Unit of Measure):ImperialDmin (Min. Bore Dia.):0.9200KAPR (Entering Angle):95.0LF (Functional Length):0.9400WF (Functional Width):0.5000DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):UD Style - Imperial 0.7500BMC (Tool Material):SteelCoolant Thru:Yes

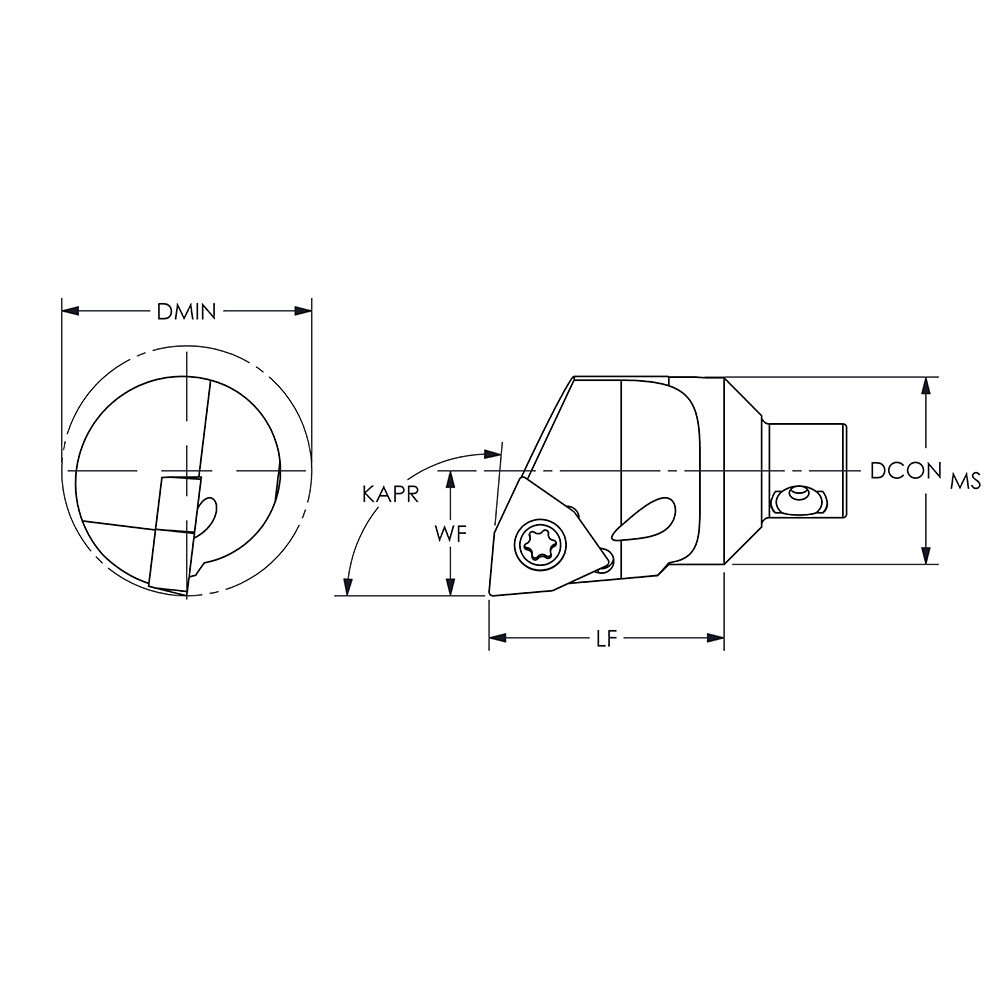

Diagram of 945-000-037

Related Products


968-000-094

INSERT SCREW

968-000-151

TORX L-KEY

968-000-152

TORX SCREWDRIVER

914-000-188

WCMT 32.51-CX1 HM250 POSITIVE INSERT

914-000-189

WCMT 32.51-CX1 HP250 POSITIVE INSERT

913-000-585

WCMT 32.51-LX6 UD2 POSITIVE INSERT

913-000-586

WCMT 32.51-LX6 UD21 POSITIVE INSERT

913-000-587

WCMT 32.51-LX6 UD51 POSITIVE INSERT

913-000-588

WCMT 32.51-LX6 UD52 POSITIVE INSERT

914-000-190

WCMT 32.52-CX1 HM250 POSITIVE INSERT

914-000-191

WCMT 32.52-CX1 HP250 POSITIVE INSERT

913-000-589

WCMT 32.52-LX6 UD2 POSITIVE INSERT

913-000-590

WCMT 32.52-LX6 UD21 POSITIVE INSERT

913-000-591

WCMT 32.52-LX6 UD51 POSITIVE INSERT

913-000-592

WCMT 32.52-LX6 UD52 POSITIVE INSERT
