ULTRA-DEX® 945 (MH12 SSKCR3), Ø3/4" Modular Head, Positive Square (KAPR 75°), Right Hand, Coolant Thru

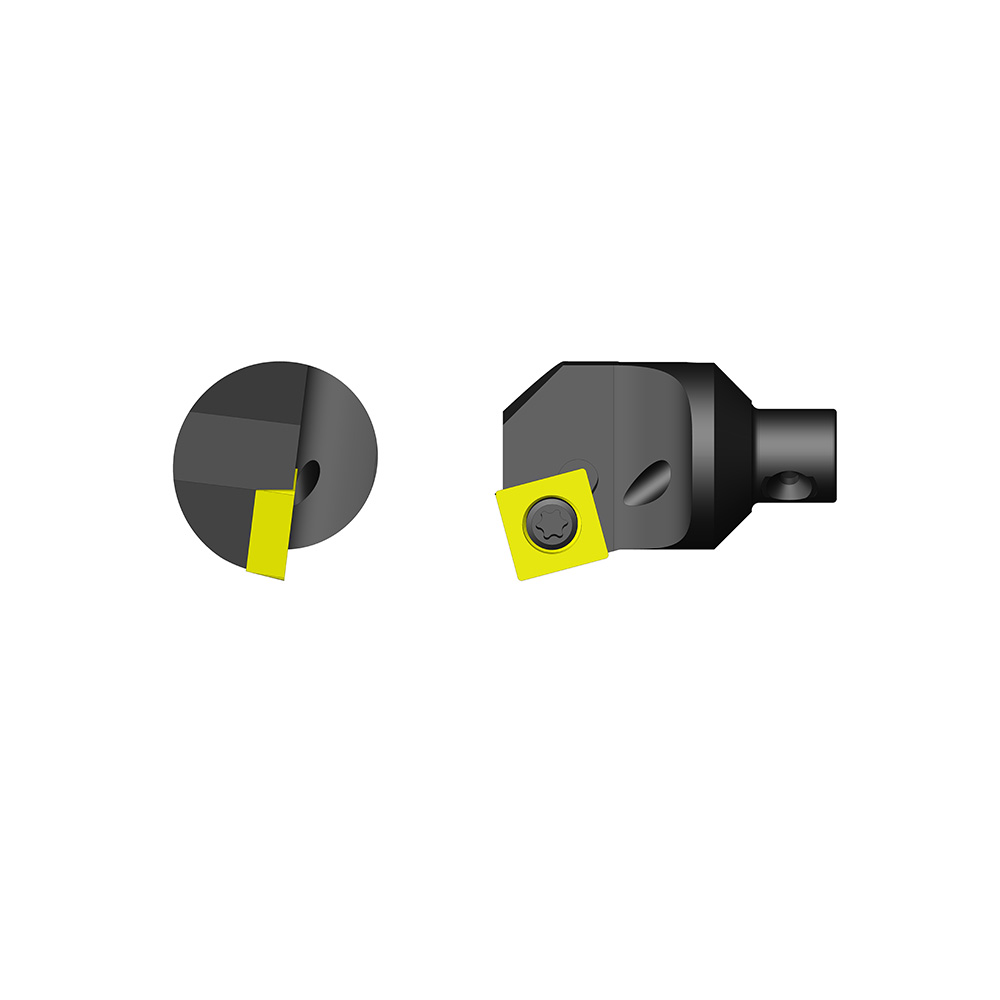

Photo of 945-000-028

Product Number: 945-000-028

ULTRA-DEX® 945 (MH12 SSKCR3), Ø3/4" Modular Head, Positive Square (KAPR 75°), Right Hand, Coolant Thru


104-MH12 SSKCR3

Ready to Buy?

Log in to obtain the best pricing and availability.
List Price: $136.74
Your Price: $136.74
Spin UpSpin Down
Quantity is Required Quantity must be a positive round number greater than Quantity must be in correct increments based on minimum value and increment steps. Min Value
  • Overview
ULTRA-DEX® 945 (MH12 SSKCR3), Ø3/4" Modular Head, Positive Square (KAPR 75°), Right Hand, Coolant Thru

Product Specs

UM (Unit of Measure):ImperialDmin (Min. Bore Dia.):0.9200KAPR (Entering Angle):75.0LF (Functional Length):0.8750WF (Functional Width):0.5000DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):UD Style - Imperial 0.7500BMC (Tool Material):SteelCoolant Thru:Yes

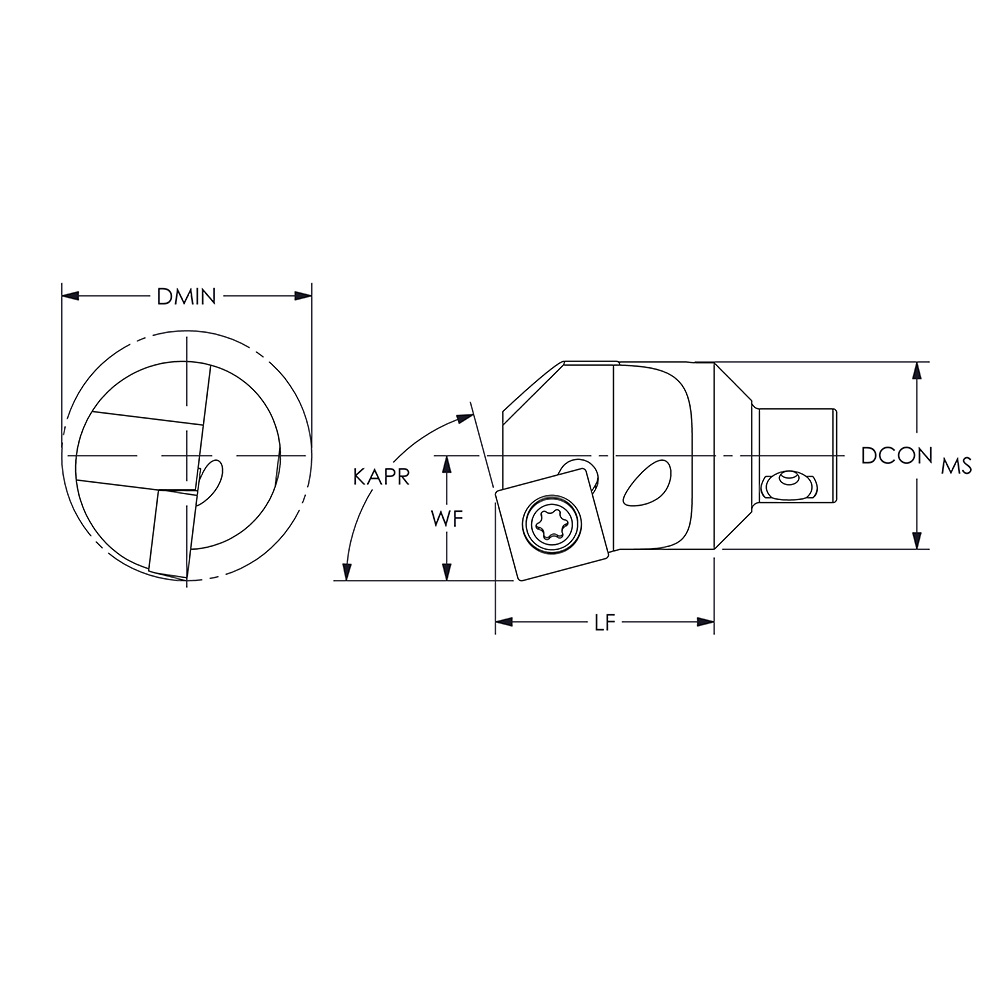

Diagram of 945-000-028

Related Products


968-000-094

INSERT SCREW

914-000-131

SCMT 32.51-CX1 HK036 POSITIVE INSERT

914-000-132

SCMT 32.51-CX1 HM250 POSITIVE INSERT

914-000-133

SCMT 32.51-CX1 HP250 POSITIVE INSERT

913-000-381

SCMT 32.51-LX6 UD22 POSITIVE INSERT

913-000-382

SCMT 32.51-ZM1 UD32 POSITIVE INSERT

913-000-383

SCMT 32.51-ZX3 UD51 POSITIVE INSERT

913-000-384

SCMT 32.51-ZX3 UD52 POSITIVE INSERT

914-000-134

SCMT 32.52-CX1 HK036 POSITIVE INSERT

914-000-135

SCMT 32.52-CX1 HM250 POSITIVE INSERT

914-000-136

SCMT 32.52-CX1 HP250 POSITIVE INSERT

913-000-385

SCMT 32.52-LX6 UD22 POSITIVE INSERT

913-000-386

SCMT 32.52-ZM1 UD32 POSITIVE INSERT

913-000-387

SCMT 32.52-ZX3 UD51 POSITIVE INSERT

913-000-388

SCMT 32.52-ZX3 UD52 POSITIVE INSERT

968-000-151

TORX L-KEY

968-000-152

TORX SCREWDRIVER
