ULTRA-DEX® 945 (MH12 MDUNL3), Ø3/4" Modular Head, Negative 55° Diamond (KAPR 93°), Profiling, Left Hand, Coolant Thru

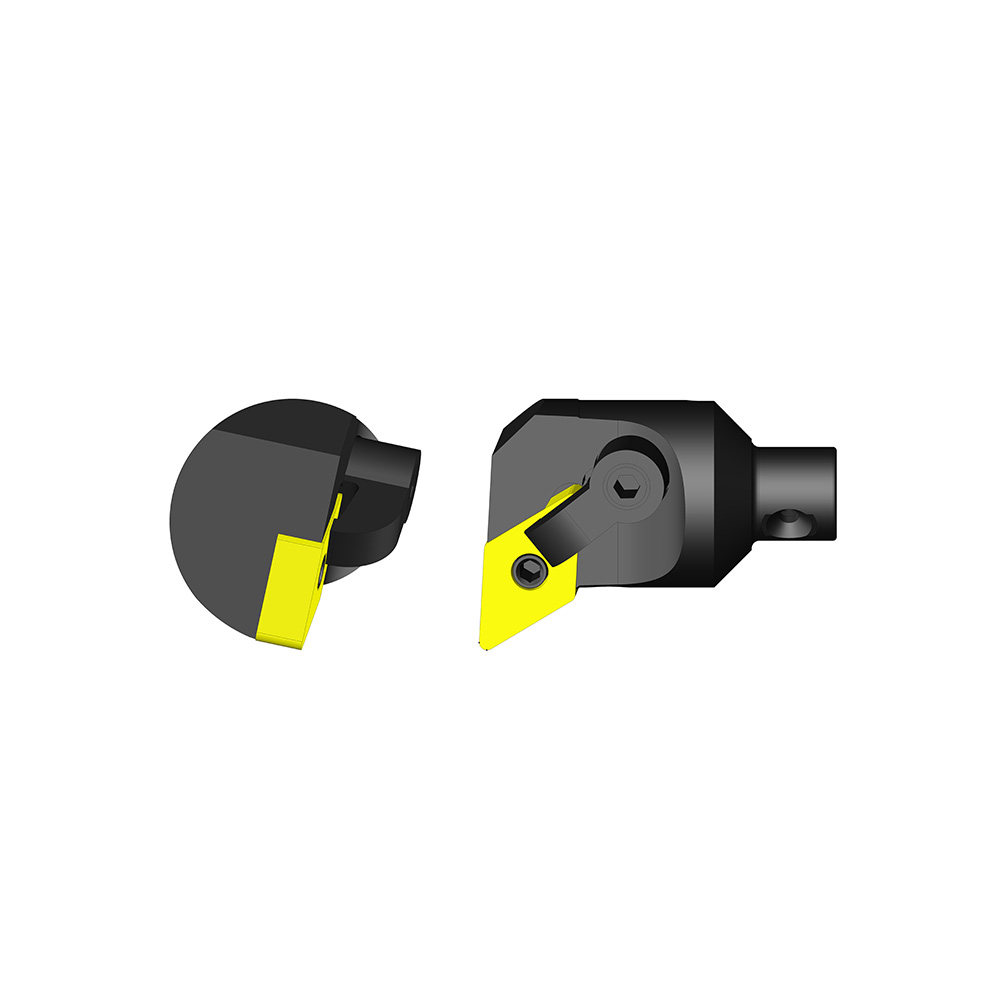

Photo of 945-000-007

Product Number: 945-000-007

ULTRA-DEX® 945 (MH12 MDUNL3), Ø3/4" Modular Head, Negative 55° Diamond (KAPR 93°), Profiling, Left Hand, Coolant Thru


104-MH12 MDUNL3

Ready to Buy?

Log in to obtain the best pricing and availability.
List Price: $196.78
Your Price: $196.78
Spin UpSpin Down
Quantity is Required Quantity must be a positive round number greater than Quantity must be in correct increments based on minimum value and increment steps. Min Value
  • Overview
ULTRA-DEX® 945 (MH12 MDUNL3), Ø3/4" Modular Head, Negative 55° Diamond (KAPR 93°), Profiling, Left Hand, Coolant Thru

Product Specs

UM (Unit of Measure):ImperialDmin (Min. Bore Dia.):1.0500KAPR (Entering Angle):93.0LF (Functional Length):0.9400WF (Functional Width):0.6250DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):UD Style - Imperial 0.7500BMC (Tool Material):SteelCoolant Thru:Yes

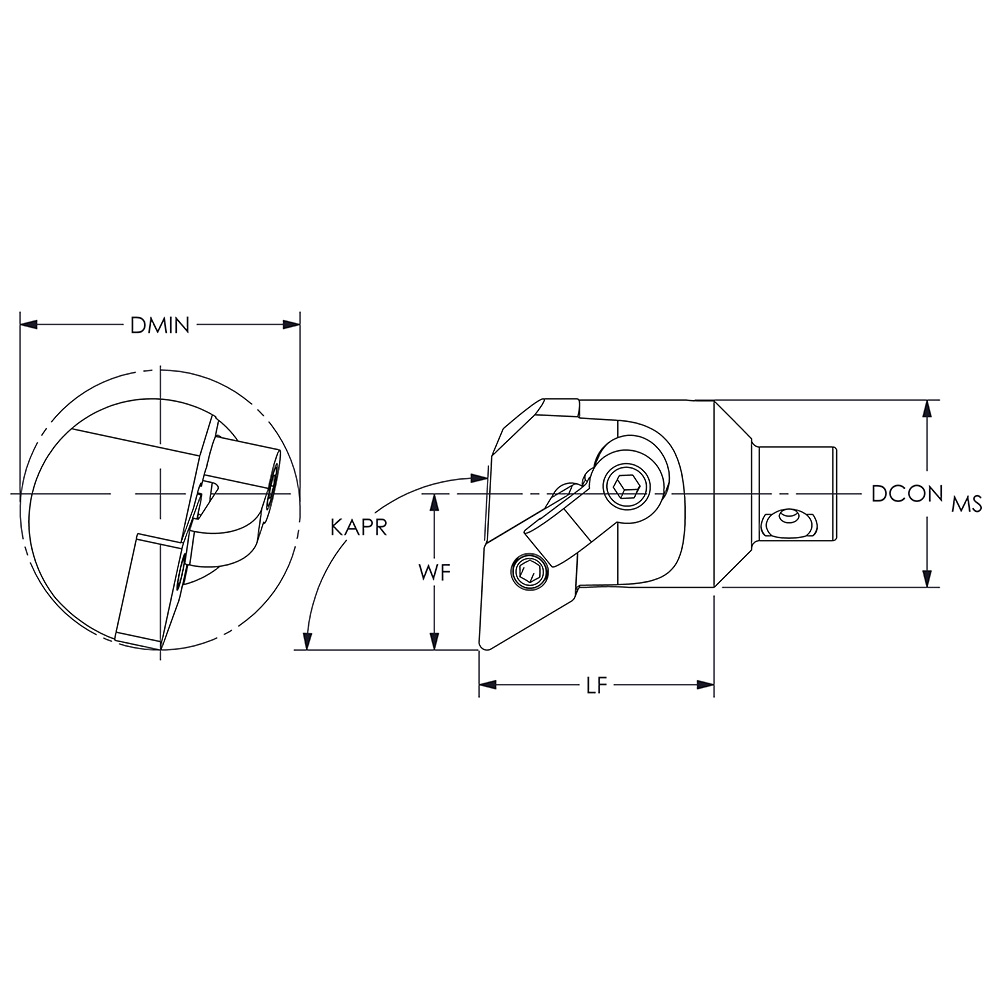

Diagram of 945-000-007

Related Products


968-000-017

CLAMP

914-000-075

DNMG 331-CM2 HM250 NEGATIVE INSERT

914-000-076

DNMG 331-CX1 HP250 NEGATIVE INSERT

913-000-277

DNMG 331-ZM1 UD32 NEGATIVE INSERT

913-000-278

DNMG 331-ZP1 UD51 NEGATIVE INSERT

913-000-279

DNMG 331-ZP1 UD52 NEGATIVE INSERT

913-000-280

DNMG 331-ZX2 UD21 NEGATIVE INSERT

914-000-077

DNMG 332-CM2 HM250 NEGATIVE INSERT

914-000-078

DNMG 332-CX1 HP250 NEGATIVE INSERT

913-000-281

DNMG 332-ZM1 UD32 NEGATIVE INSERT

913-000-282

DNMG 332-ZP1 UD51 NEGATIVE INSERT

913-000-283

DNMG 332-ZP1 UD52 NEGATIVE INSERT

913-000-284

DNMG 332-ZX2 UD21 NEGATIVE INSERT

968-000-098

LOCK PIN

968-000-176

CLAMP SCREW
