ULTRA-DEX® 945 (MH12 MCKNL3), Ø3/4" Modular Head, Negative 80° Diamond (KAPR 75°), Left Hand, Coolant Thru

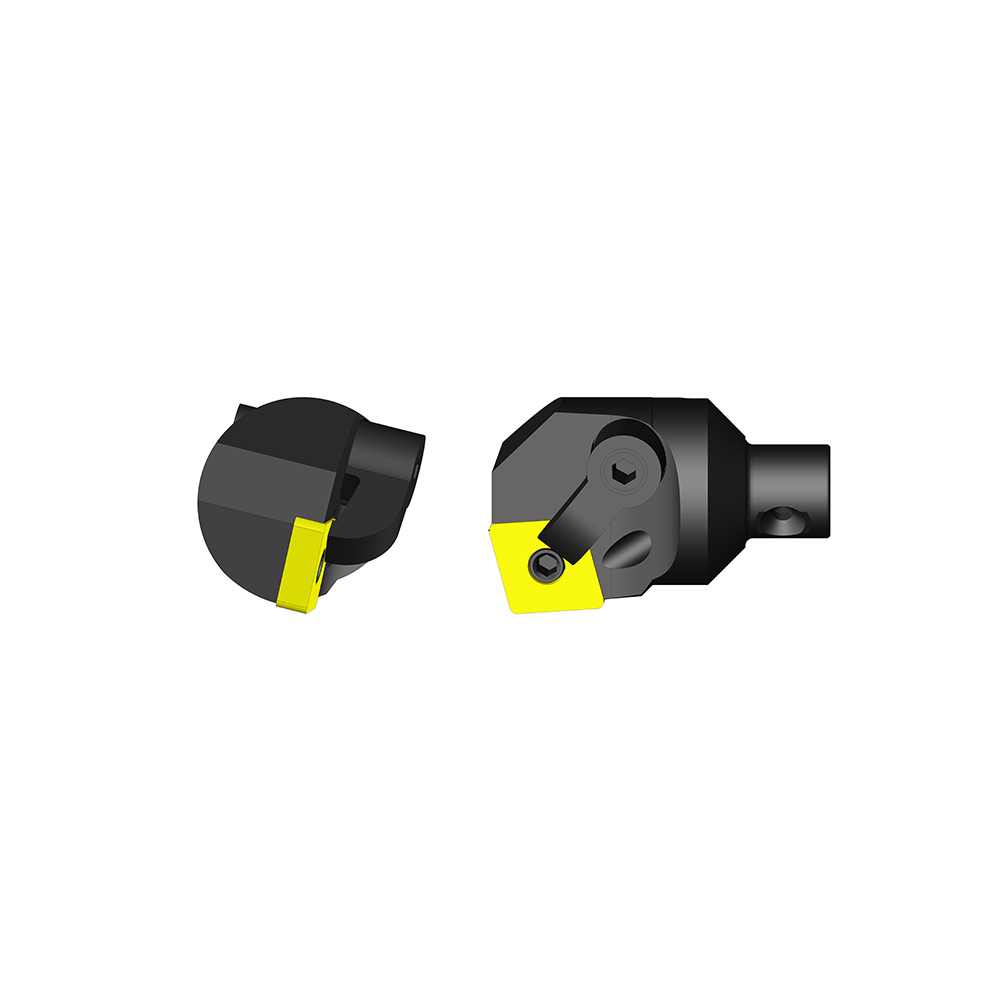

Photo of 945-000-003

Product Number: 945-000-003

ULTRA-DEX® 945 (MH12 MCKNL3), Ø3/4" Modular Head, Negative 80° Diamond (KAPR 75°), Left Hand, Coolant Thru


104-MH12 MCKNL3

Ready to Buy?

Log in to obtain the best pricing and availability.
List Price: $176.71
Your Price: $176.71
Spin UpSpin Down
Quantity is Required Quantity must be a positive round number greater than Quantity must be in correct increments based on minimum value and increment steps. Min Value
  • Overview
ULTRA-DEX® 945 (MH12 MCKNL3), Ø3/4" Modular Head, Negative 80° Diamond (KAPR 75°), Left Hand, Coolant Thru

Product Specs

UM (Unit of Measure):ImperialDmin (Min. Bore Dia.):0.9100KAPR (Entering Angle):75.0LF (Functional Length):0.8750WF (Functional Width):0.4900DCONms (Connection Diameter Machine Side):0.7500ADINTms (Connection Type Machine Side):UD Style - Imperial 0.7500BMC (Tool Material):SteelCoolant Thru:Yes

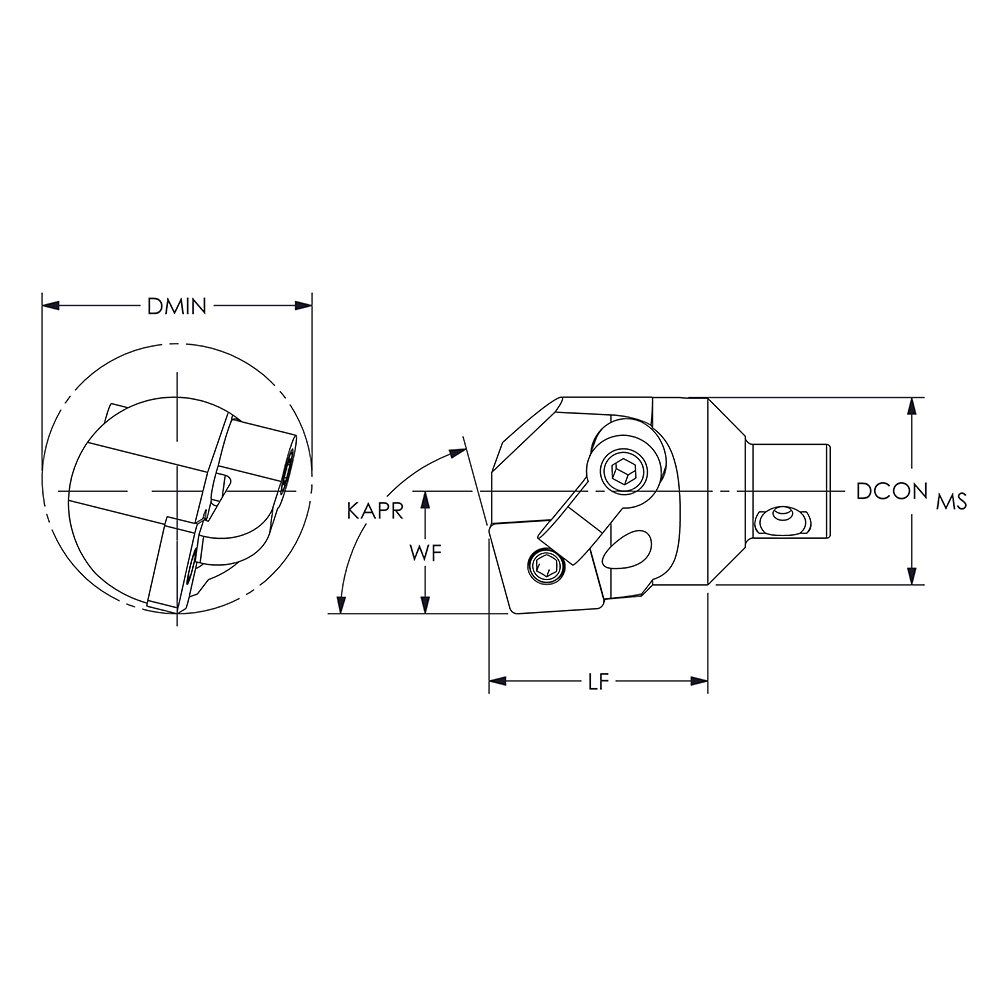

Diagram of 945-000-003

Related Products


968-000-017

CLAMP

914-000-036

CNMG 321-CM2 HM250 NEGATIVE INSERT

913-000-177

CNMG 321-ZK1 UD21 NEGATIVE INSERT

913-000-178

CNMG 321-ZM1 UD32 NEGATIVE INSERT

913-000-179

CNMG 321-ZP1 UD51 NEGATIVE INSERT

913-000-180

CNMG 321-ZP1 UD52 NEGATIVE INSERT

914-000-037

CNMG 322-CM2 HM250 NEGATIVE INSERT

913-000-181

CNMG 322-ZK1 UD21 NEGATIVE INSERT

913-000-182

CNMG 322-ZM1 UD32 NEGATIVE INSERT

913-000-183

CNMG 322-ZP1 UD51 NEGATIVE INSERT

913-000-184

CNMG 322-ZP1 UD52 NEGATIVE INSERT

968-000-097

LOCK PIN

968-000-176

CLAMP SCREW
