ULTRA-DEX® 915 (GCUDW-187-6-3R), 3/16" Carbide Boring Bar, Positive Trigon (KAPR 93°), 8:1 Ratio, Right Hand, Series G, Q & S, Coolant Thru

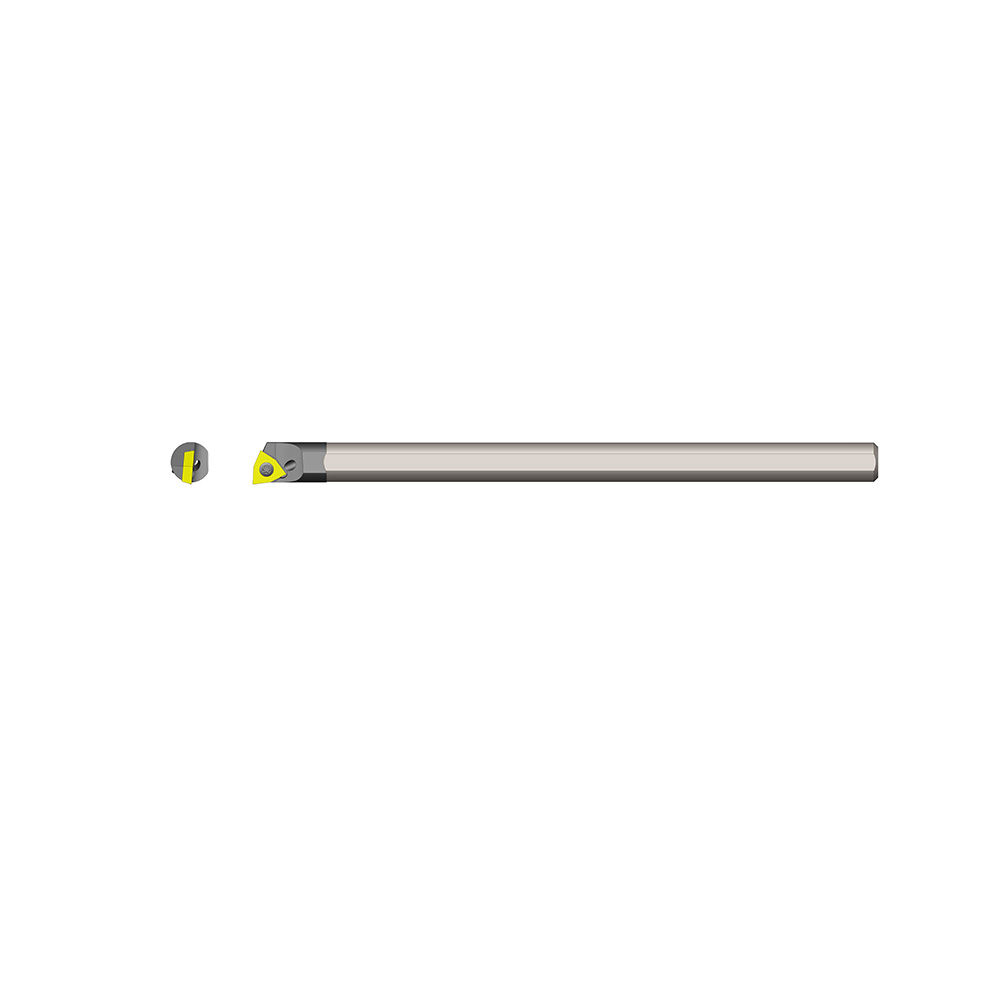

Photo of 915-000-054

Product Number: 915-000-054

ULTRA-DEX® 915 (GCUDW-187-6-3R), 3/16" Carbide Boring Bar, Positive Trigon (KAPR 93°), 8:1 Ratio, Right Hand, Series G, Q & S, Coolant Thru


104-GCUDW-187-6-3R

Ready to Buy?

Log in to obtain the best pricing and availability.
List Price: $385.10
Your Price: $385.10
Spin UpSpin Down
Quantity is Required Quantity must be a positive round number greater than Quantity must be in correct increments based on minimum value and increment steps. Min Value
  • Overview
ULTRA-DEX® 915 (GCUDW-187-6-3R), 3/16" Carbide Boring Bar, Positive Trigon (KAPR 93°), 8:1 Ratio, Right Hand, Series G, Q & S, Coolant Thru

Product Specs

UM (Unit of Measure):ImperialDmin (Min. Bore Dia.):0.2600KAPR (Entering Angle):93.0LF (Functional Length):6.0000WF (Functional Width):0.1260DCONms (Connection Diameter Machine Side):0.1875ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.1875 - with FlatBMC (Tool Material):CarbideCoolant Thru:Yes

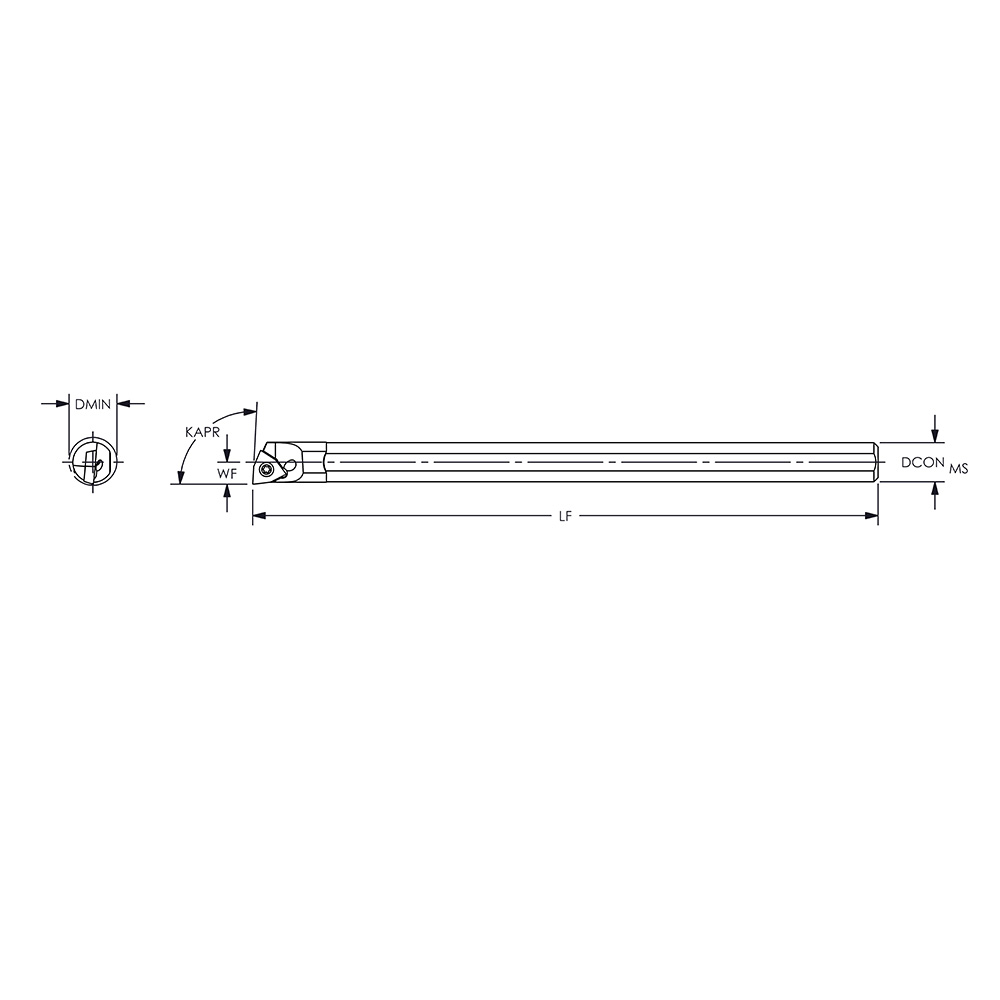

Diagram of 915-000-054

Related Products


968-000-087

INSERT SCREW

968-000-156

TORX L-KEY

968-000-157

TORX SCREWDRIVER

913-000-636

WPGT 1.510.5-SP2 UD51 SERIES POS INSERT

913-000-637

WPGT 1.510-SP2 UD51 SERIES POS INSERT

913-000-638

WPGT 1.511-SP2 UD51 SERIES POS INSERT
