ULTRA-DEX® 920 (E10Q LSEL2), 5/8" Carbide Boring Bar, 8:1 Ratio, Threading / Grooving Laydown, Left Hand, Coolant Thru

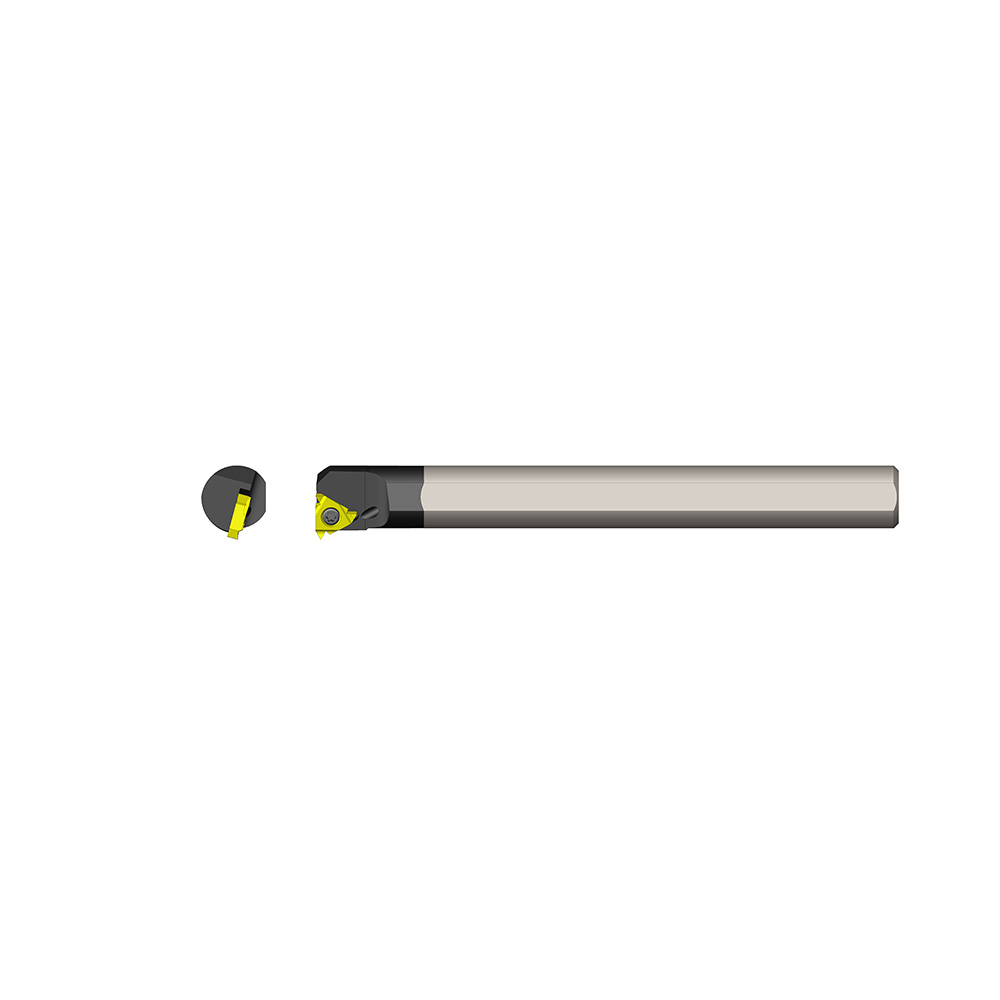

Photo of 920-000-248

Product Number: 920-000-248

ULTRA-DEX® 920 (E10Q LSEL2), 5/8" Carbide Boring Bar, 8:1 Ratio, Threading / Grooving Laydown, Left Hand, Coolant Thru


104-E10Q LSEL2

Ready to Buy?

Log in to obtain the best pricing and availability.
List Price: $673.02
Your Price: $673.02
Spin UpSpin Down
Quantity is Required Quantity must be a positive round number greater than Quantity must be in correct increments based on minimum value and increment steps. Min Value
  • Overview
ULTRA-DEX® 920 (E10Q LSEL2), 5/8" Carbide Boring Bar, 8:1 Ratio, Threading / Grooving Laydown, Left Hand, Coolant Thru

Product Specs

UM (Unit of Measure):ImperialDmin (Min. Bore Dia.):0.7210LF (Functional Length):7.0000WF (Functional Width):0.3710DCONms (Connection Diameter Machine Side):0.6250ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.6250 - with FlatBMC (Tool Material):CarbideCoolant Thru:Yes

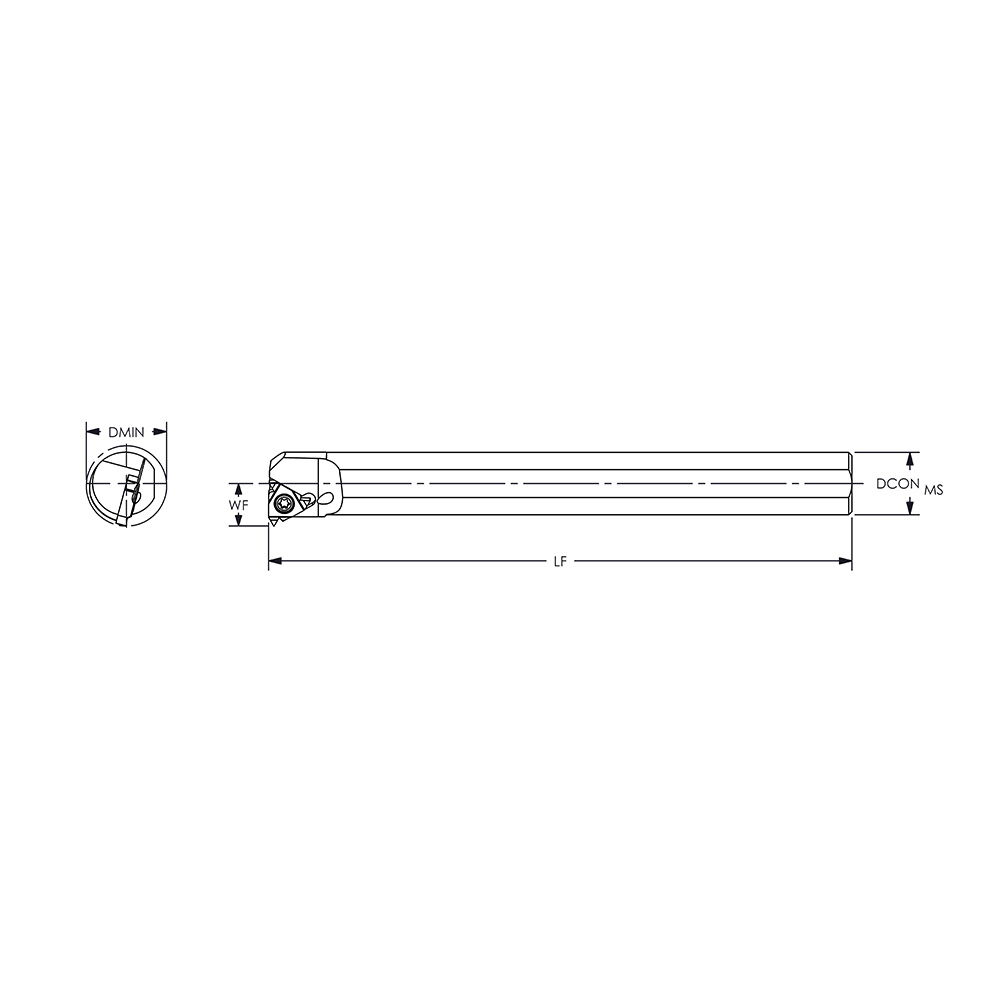

Diagram of 920-000-248

Related Products


913-000-001

2JIL12UN LAYDOWN 60° THREADING INSERT

913-000-002

2JILA60 LAYDOWN 60° THREADING INSERT

968-000-135

INSERT SCREW

968-000-160

TORX SCREWDRIVER
