ULTRA-DEX® STEALTH® 910 (D08R SDUCR2), Ø1/2" Anti-Vibration Modular Boring Bar, Imperial, Solid Positive 55° Diamond (KAPR 93°), 8:1 Ratio, Coolant Thru

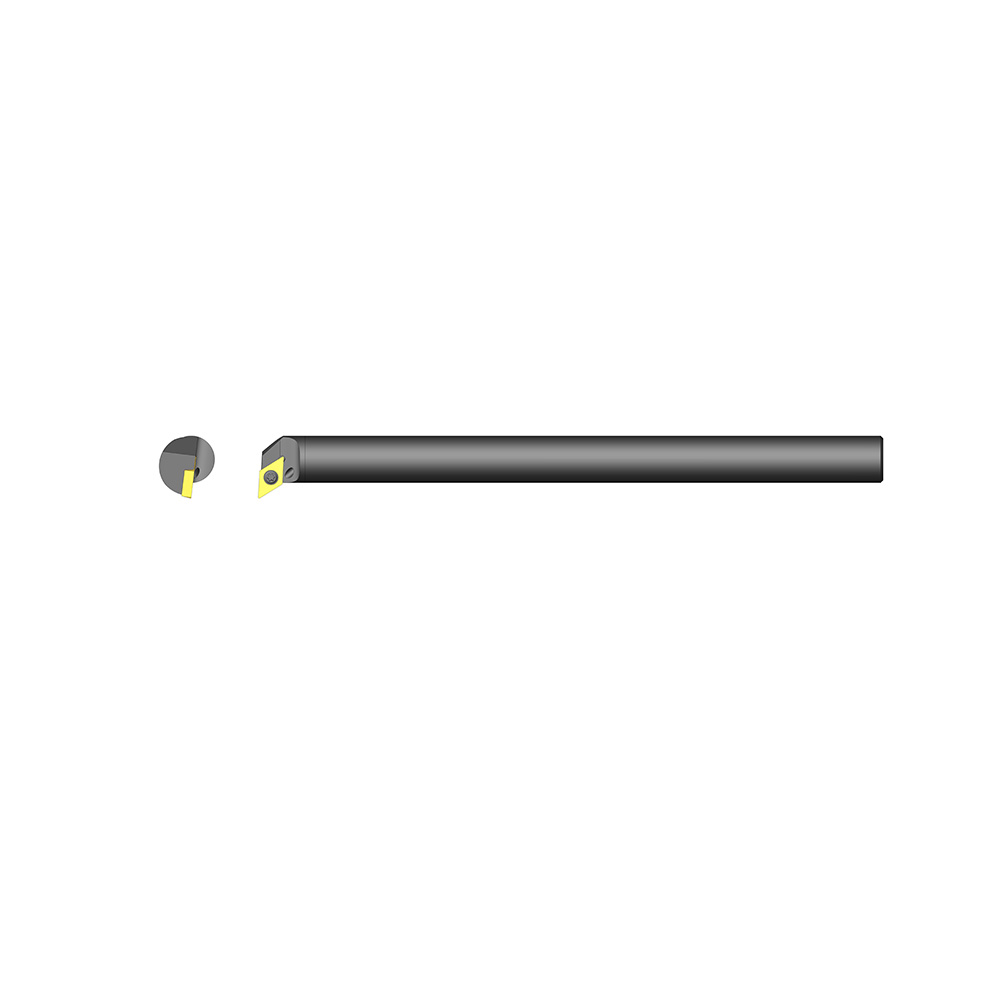

Photo of 910-000-046

Product Number: 910-000-046

ULTRA-DEX® STEALTH® 910 (D08R SDUCR2), Ø1/2" Anti-Vibration Modular Boring Bar, Imperial, Solid Positive 55° Diamond (KAPR 93°), 8:1 Ratio, Coolant Thru


104-D08R SDUCR2

Ready to Buy?

Log in to obtain the best pricing and availability.
List Price: $953.87
Your Price: $953.87
Spin UpSpin Down
Quantity is Required Quantity must be a positive round number greater than Quantity must be in correct increments based on minimum value and increment steps. Min Value
  • Overview
ULTRA-DEX® STEALTH® 910 (D08R SDUCR2), Ø1/2" Anti-Vibration Modular Boring Bar, Imperial, Solid Positive 55° Diamond (KAPR 93°), 8:1 Ratio, Coolant Thru

Product Specs

UM (Unit of Measure):ImperialADINTws (Connection Type Work Side):0Dmin (Min. Bore Dia.):0.7300KAPR (Entering Angle):93.0LF (Functional Length):8.0000WF (Functional Width):0.4370DCONms (Connection Diameter Machine Side):0.5000ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.5000BMC (Tool Material):SteelCoolant Thru:Yes

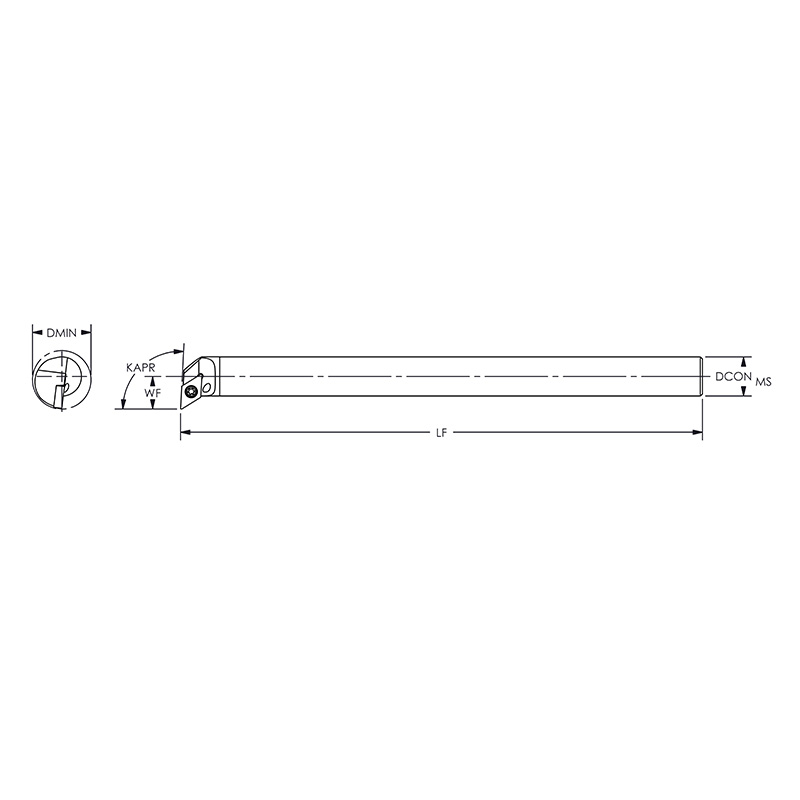

Diagram of 910-000-046
