ULTRA-DEX® 966 (CT40-EM563-262-G2), CAT40 Weldon Side Lock Holder, ID 9/16", Coolant Thru

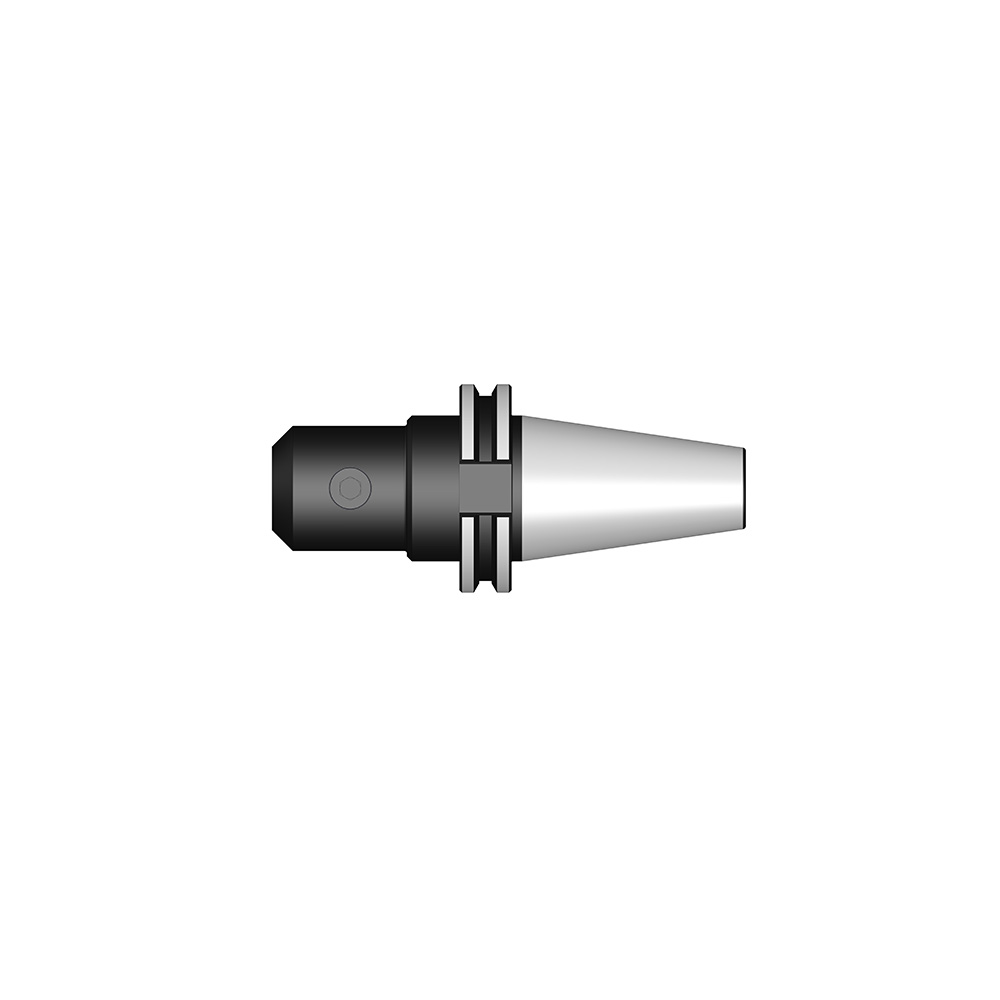

Photo of 966-000-049

Product Number: 966-000-049

ULTRA-DEX® 966 (CT40-EM563-262-G2), CAT40 Weldon Side Lock Holder, ID 9/16", Coolant Thru


104-CT40-EM563-262-G2

Ready to Buy?

Log in to obtain the best pricing and availability.
List Price: $188.80
Your Price: $188.80
Spin UpSpin Down
Quantity is Required Quantity must be a positive round number greater than Quantity must be in correct increments based on minimum value and increment steps. Min Value
  • Overview
ULTRA-DEX® 966 (CT40-EM563-262-G2), CAT40 Weldon Side Lock Holder, ID 9/16", Coolant Thru

Product Specs

UM (Unit of Measure):ImperialBD (Body Diameter):1.3750BD1 (Body Dia. 1):1.7500ADINTws (Connection Type Work Side):Straight Hole - Imperial 0.5625LB (Body Length):1.2400LB1 (Body Length 1):1.8700LF (Functional Length):2.6200LU (Usable Length):2.0500DCONws (Connection Dia. Work Side):0.5625ADINTms (Connection Type Machine Side):CAT40BMC (Tool Material):SteelCoolant Thru:YesCRKS (Connection Rentention Knob Thread Size):5/8-11

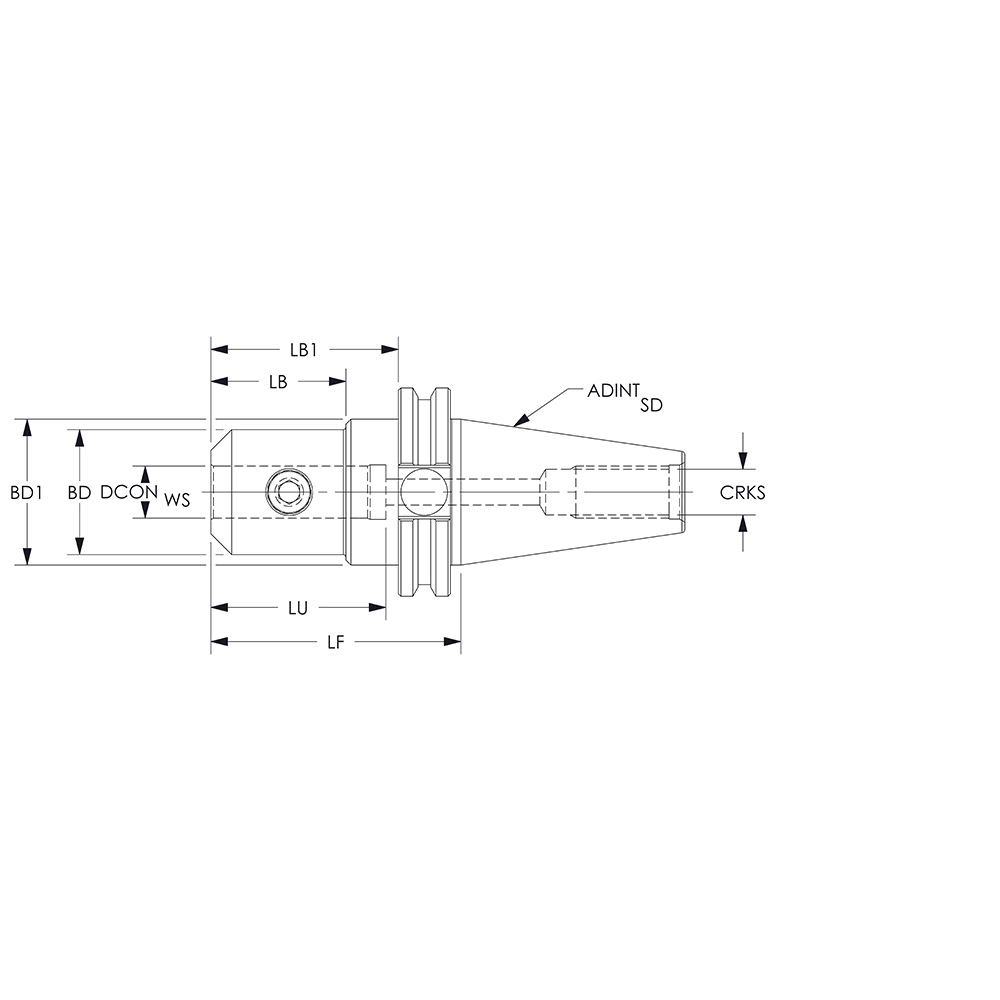

Diagram of 966-000-049
