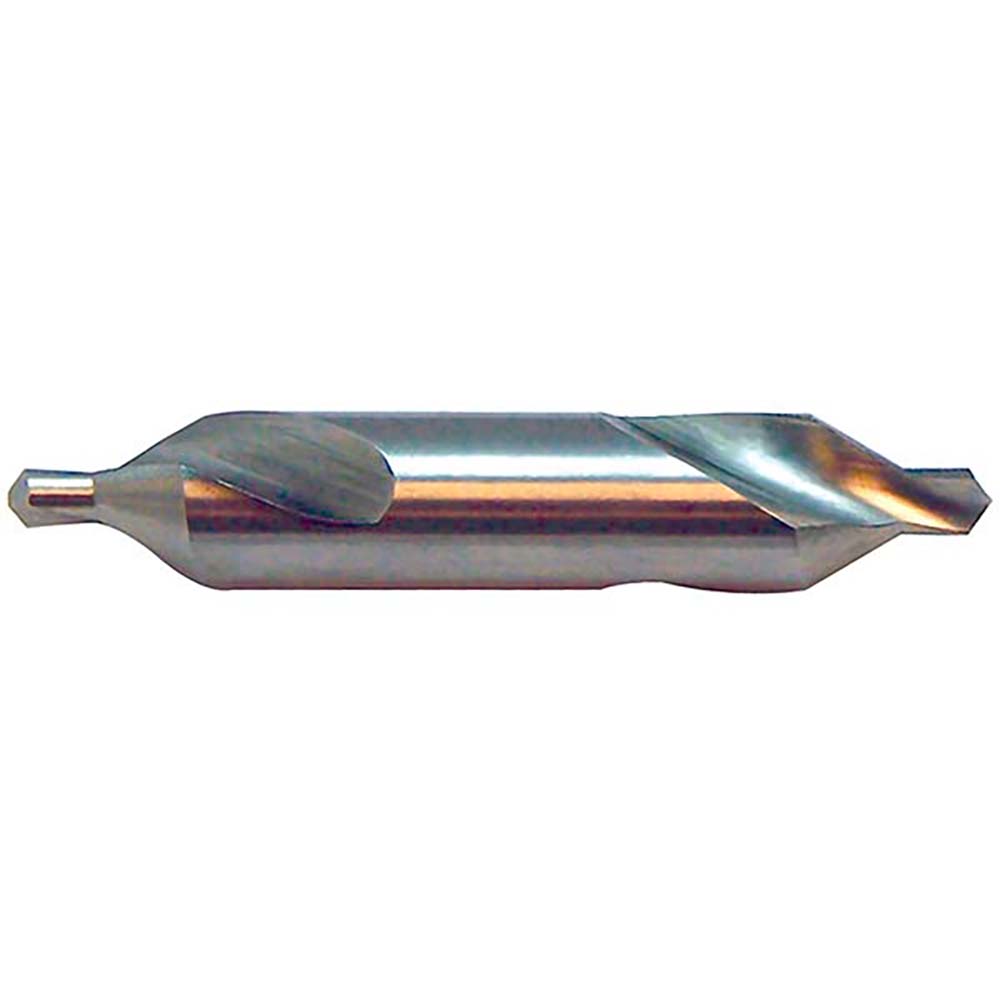

KEO® 906 Cobalt #4-0 60° Plain Type Centerdrill, Ø.015 Pilot, 1/8 Body, Uncoated
Product Specs

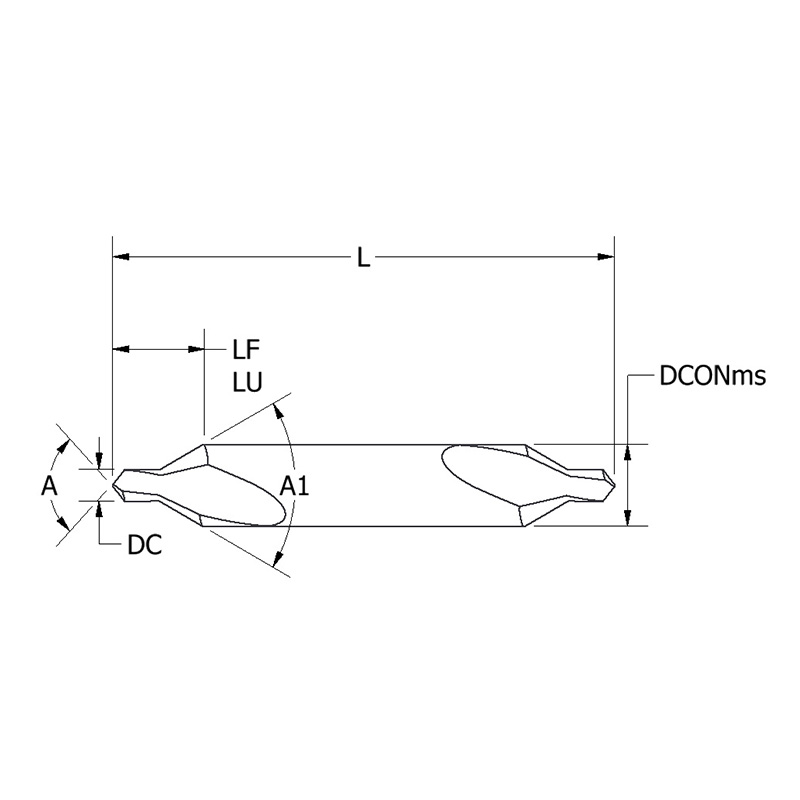

UM (Unit of Measure):ImperialDC (Cut Diameter):0.0150A (Angle):118.0A1 (Angle 1):60.0L (Overall Length):1.2500LF (Functional Length):0.1140LS (Length of Shank):0.6250LU (Usable Length):0.1140Zc (Cutting Edge Count):2DCONms (Connection Diameter Machine Side):0.1250ADINTms (Connection Type Machine Side):Straight Diameter - Imperial 0.1250CONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):HSS-CoCoolant Thru:NoHAND (Hand of Cut):R
