KEO® 904 HSS Concave Cutter, R1/16, Ø2-1/4 x 1/4 x Ø1, 16 Teeth, AlTiN Coated

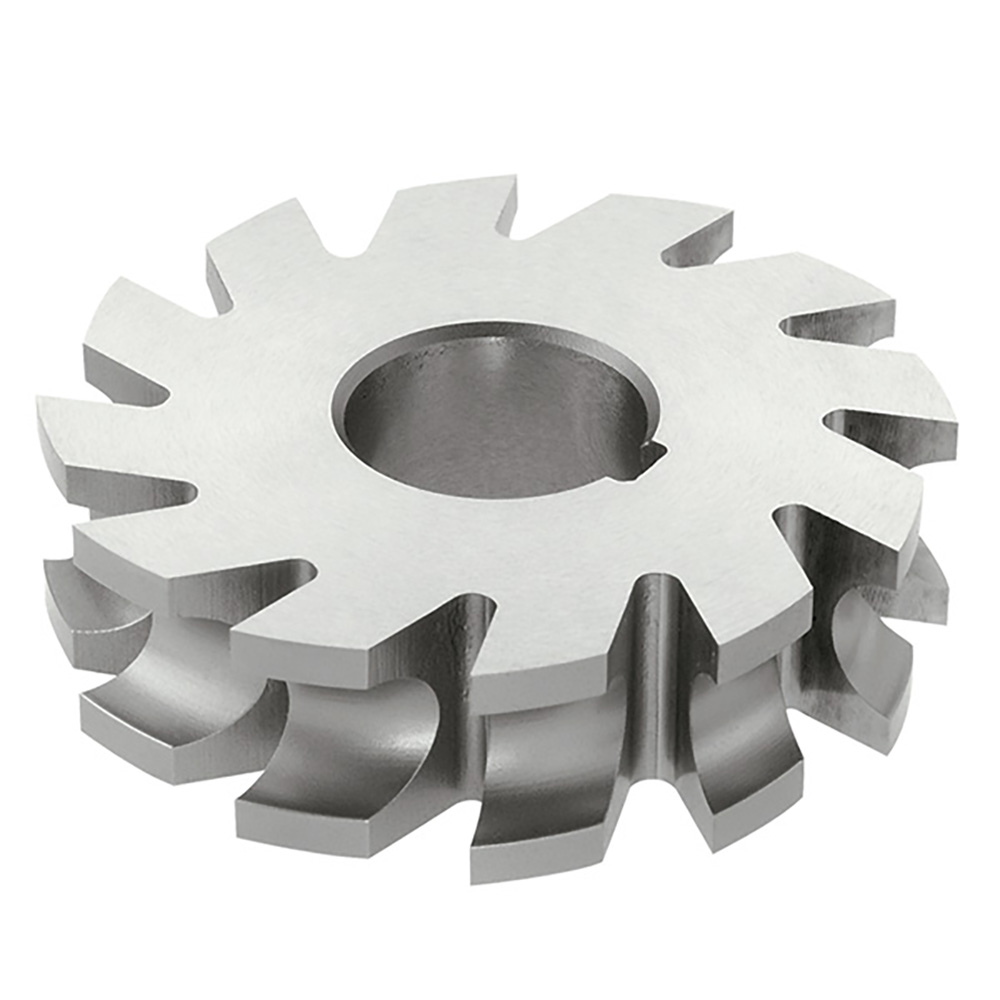

Photo of 904-000-061

Product Number: 904-000-061

KEO® 904 HSS Concave Cutter, R1/16, Ø2-1/4 x 1/4 x Ø1, 16 Teeth, AlTiN Coated

SKU: 91420
105-91420

Ready to Buy?

Log in to obtain the best pricing and availability.
List Price: $219.31
Your Price: $219.31
Spin UpSpin Down
Quantity is Required Quantity must be a positive round number greater than Quantity must be in correct increments based on minimum value and increment steps. Min Value
  • Overview
KEO® 904 HSS Concave Cutter, R1/16, Ø2-1/4 x 1/4 x Ø1, 16 Teeth, AlTiN Coated

Product Specs

UM (Unit of Measure):ImperialDC (Cut Diameter):2.2500CW (Cutting Width):0.2500R (Radius):0.0625THUB (Width of Hub):0.2500Zc (Cutting Edge Count):16DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Arbor Hole - Imperial 1.0000CONTYPE (Connection Type):ArborCOATING:AlTiNBMC (Tool Material):HSSCoolant Thru:NoHAND (Hand of Cut):N

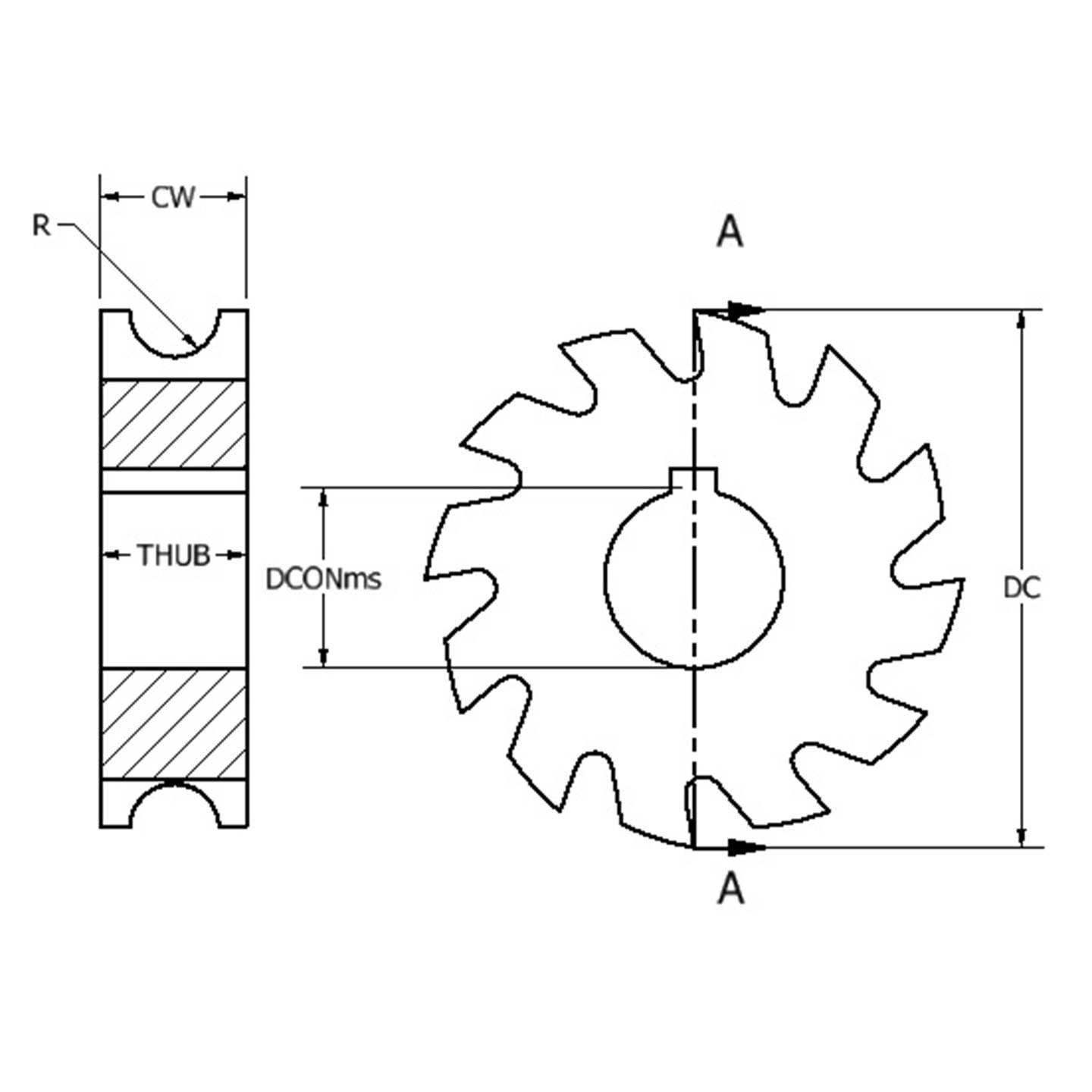

Diagram of 904-000-061
