ULTRA-DEX® 920 (E10S SVJBR2), 5/8" Carbide Boring Bar, Positive 35° Diamond (KAPR 142°), 8:1 Ratio, Right Hand, Coolant Thru

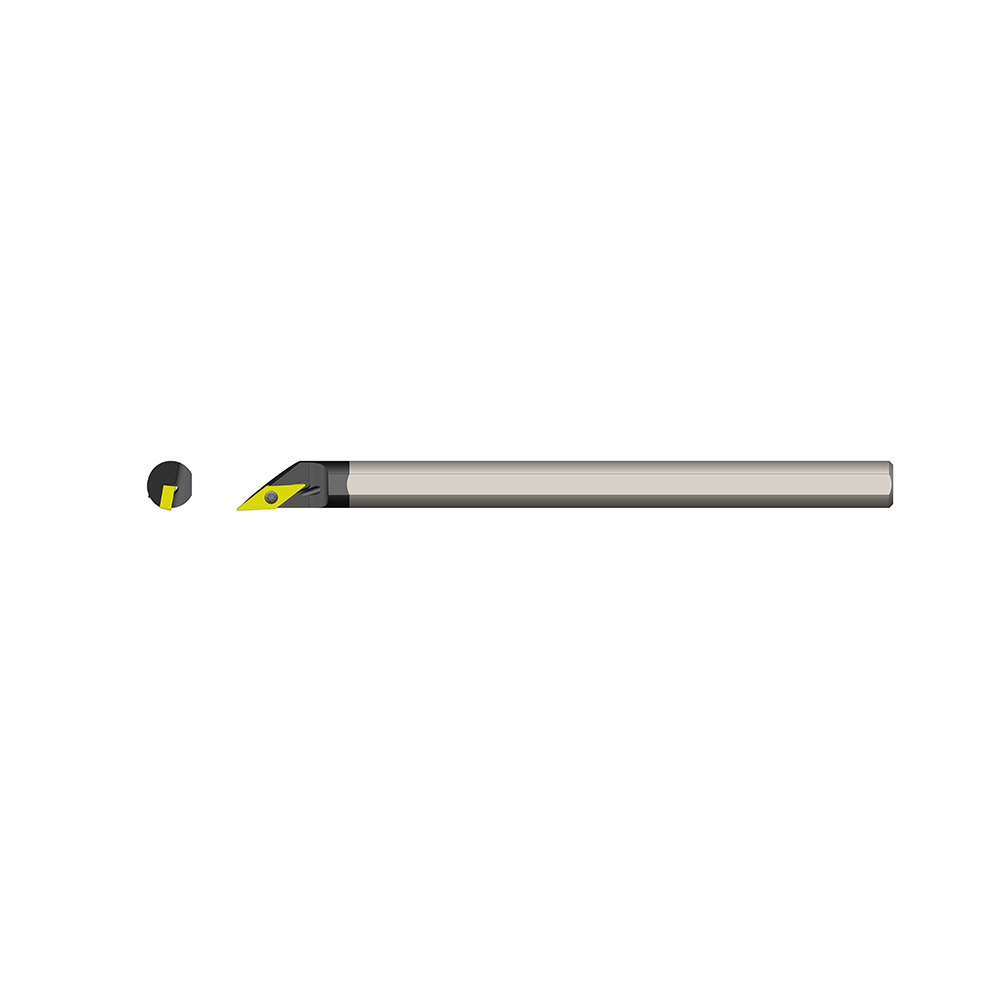

Photo of 920-000-295

Product Number: 920-000-295

ULTRA-DEX® 920 (E10S SVJBR2), 5/8" Carbide Boring Bar, Positive 35° Diamond (KAPR 142°), 8:1 Ratio, Right Hand, Coolant Thru


104-E10S SVJBR2

Ready to Buy?

Log in to obtain the best pricing and availability.
List Price: $1,053.69
Your Price: $1,053.69
Spin UpSpin Down
Quantity is Required Quantity must be a positive round number greater than Quantity must be in correct increments based on minimum value and increment steps. Min Value
  • Overview
ULTRA-DEX® 920 (E10S SVJBR2), 5/8" Carbide Boring Bar, Positive 35° Diamond (KAPR 142°), 8:1 Ratio, Right Hand, Coolant Thru

Product Specs

UM (Unit of Measure):ImperialDmin (Min. Bore Dia.):0.7000KAPR (Entering Angle):142.0LF (Functional Length):10.0000WF (Functional Width):0.3480DCONms (Connection Diameter Machine Side):0.6250ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.6250 - with FlatBMC (Tool Material):CarbideCoolant Thru:Yes
Diagram of 920-000-295

Related Products


968-000-090

INSERT SCREW

968-000-158

TORX L-KEY

968-000-159

TORX SCREWDRIVER

913-000-535

VBMT 21.50.5-ZX3 UD51 POSITIVE INSERT

913-000-536

VBMT 21.50.5-ZX3 UD52 POSITIVE INSERT

913-000-537

VBMT 21.51-ZX3 UD51 POSITIVE INSERT

913-000-538

VBMT 21.51-ZX3 UD52 POSITIVE INSERT
