ULTRA-DEX® 920 (E10S SDQCR2), 5/8" Carbide Boring Bar, Positive 55° Diamond (KAPR 107.5°), 8:1 Ratio, Right Hand, Coolant Thru

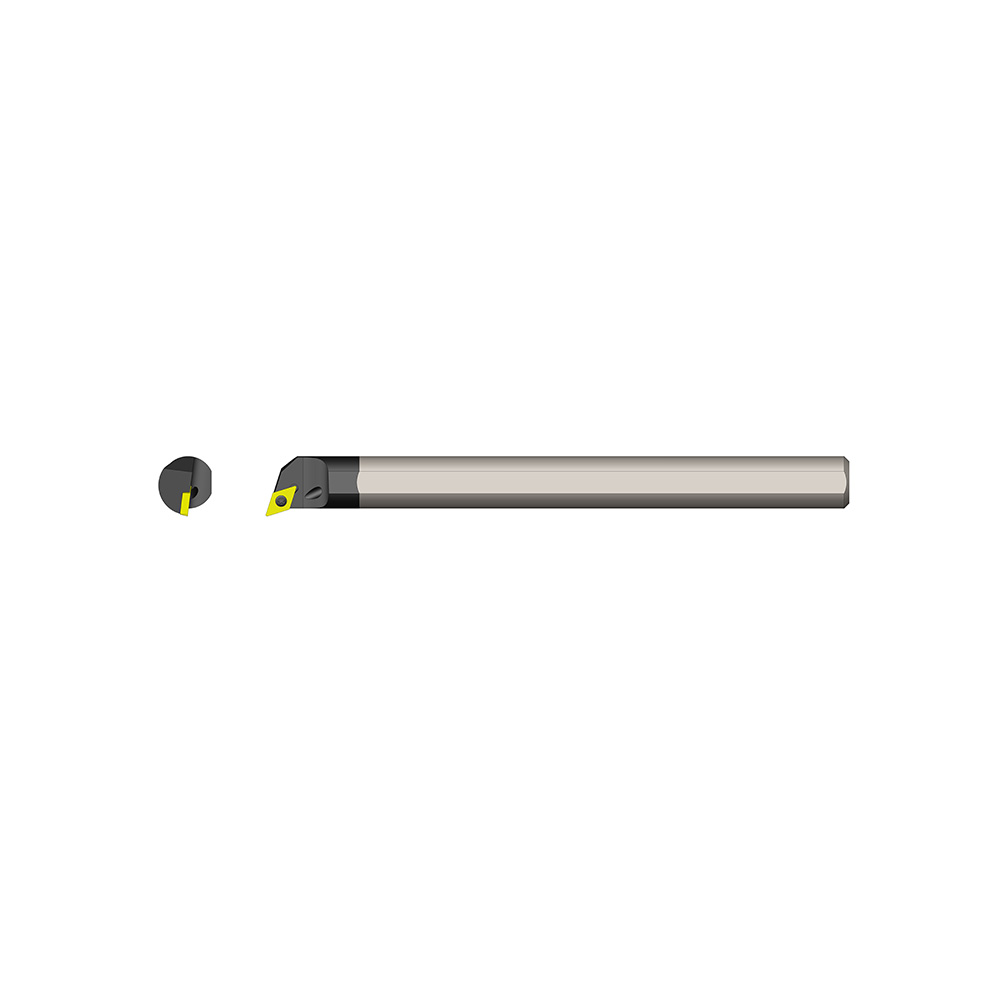

Photo of 920-000-283

Product Number: 920-000-283

ULTRA-DEX® 920 (E10S SDQCR2), 5/8" Carbide Boring Bar, Positive 55° Diamond (KAPR 107.5°), 8:1 Ratio, Right Hand, Coolant Thru


104-E10S SDQCR2

Ready to Buy?

Log in to obtain the best pricing and availability.
List Price: $1,053.69
Your Price: $1,053.69
Spin UpSpin Down
Quantity is Required Quantity must be a positive round number greater than Quantity must be in correct increments based on minimum value and increment steps. Min Value
  • Overview
ULTRA-DEX® 920 (E10S SDQCR2), 5/8" Carbide Boring Bar, Positive 55° Diamond (KAPR 107.5°), 8:1 Ratio, Right Hand, Coolant Thru

Product Specs

UM (Unit of Measure):ImperialDmin (Min. Bore Dia.):0.7600KAPR (Entering Angle):107.5LF (Functional Length):10.0000WF (Functional Width):0.4060DCONms (Connection Diameter Machine Side):0.6250ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.6250 - with FlatBMC (Tool Material):CarbideCoolant Thru:Yes

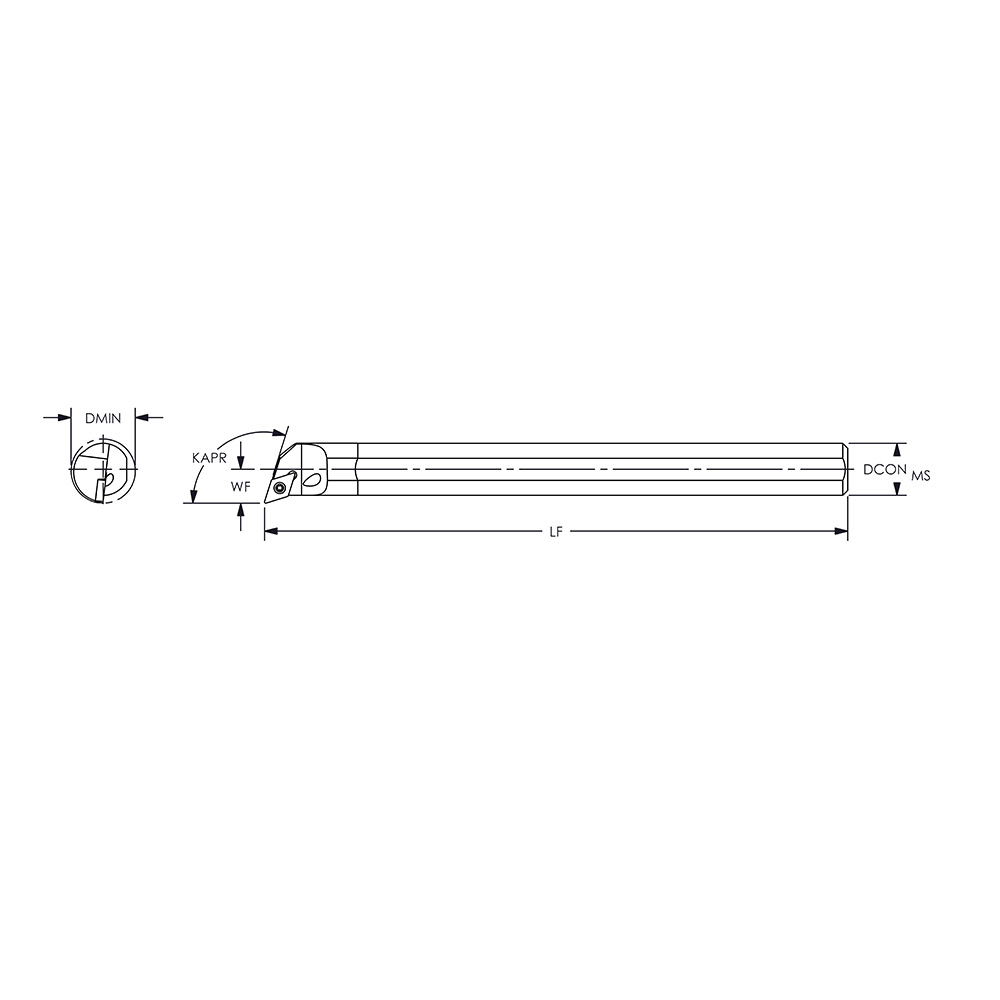

Diagram of 920-000-283

Related Products


914-000-055

DCMT 21.50.5-CX2 HM250 POSITIVE INSERT

914-000-056

DCMT 21.50.5-CX2 HP250 POSITIVE INSERT

913-000-257

DCMT 21.50.5-LX6 UD21 POSITIVE INSERT

913-000-258

DCMT 21.50.5-LX6 UD51 POSITIVE INSERT

913-000-259

DCMT 21.50.5-LX6 UD52 POSITIVE INSERT

913-000-260

DCMT 21.50.5-ZM1 UD32 POSITIVE INSERT

914-000-057

DCMT 21.51-CX1 HK036 POSITIVE INSERT

914-000-058

DCMT 21.51-CX1 HM250 POSITIVE INSERT

914-000-059

DCMT 21.51-CX1 HP250 POSITIVE INSERT

913-000-261

DCMT 21.51-ZM1 UD32 POSITIVE INSERT

913-000-262

DCMT 21.51-ZX3 UD21 POSITIVE INSERT

913-000-263

DCMT 21.51-ZX3 UD51 POSITIVE INSERT

913-000-264

DCMT 21.51-ZX3 UD52 POSITIVE INSERT

914-000-060

DCMT 21.52-CX1 HM250 POSITIVE INSERT

914-000-061

DCMT 21.52-CX1 HP250 POSITIVE INSERT

968-000-092

INSERT SCREW

968-000-158

TORX L-KEY

968-000-159

TORX SCREWDRIVER
