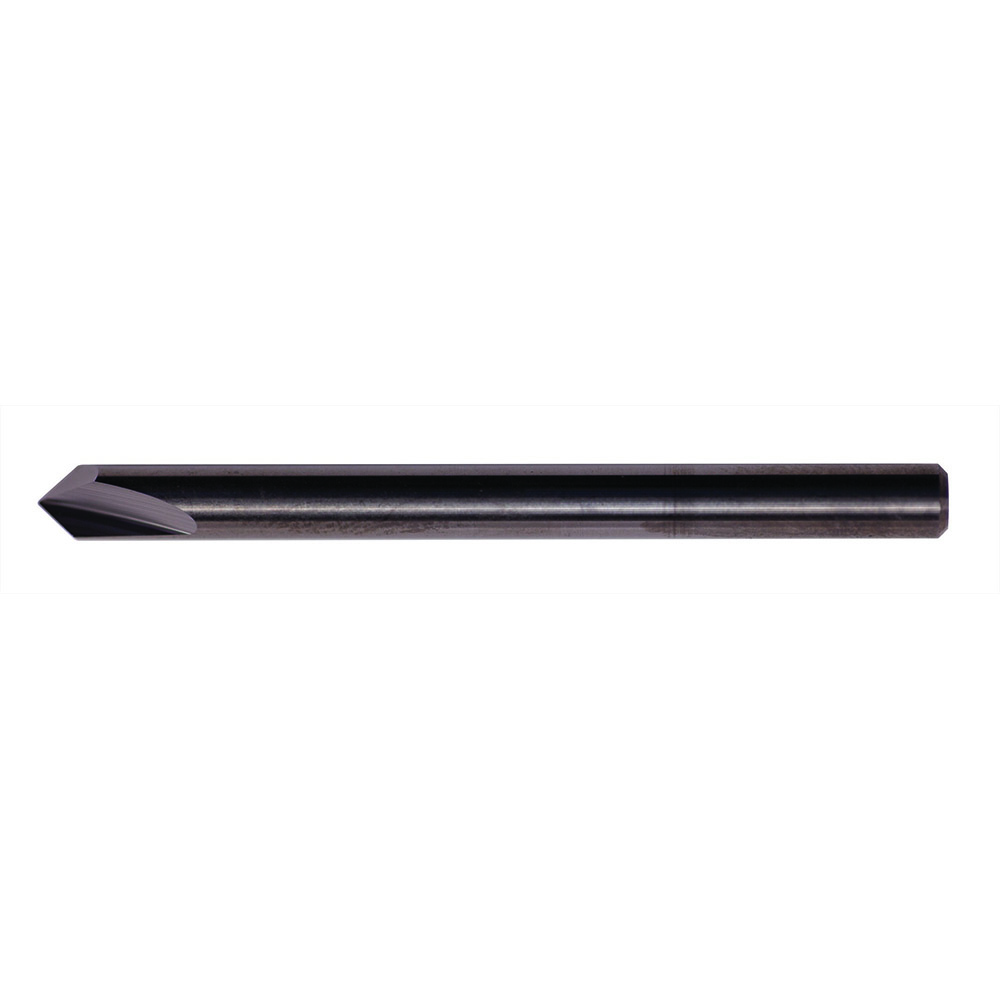

KEO® 947 Solid Carbide Web Marking Cutter, 30°, Ø1/8 Shank, Radius End, R.005, Uncoated
Product Specs

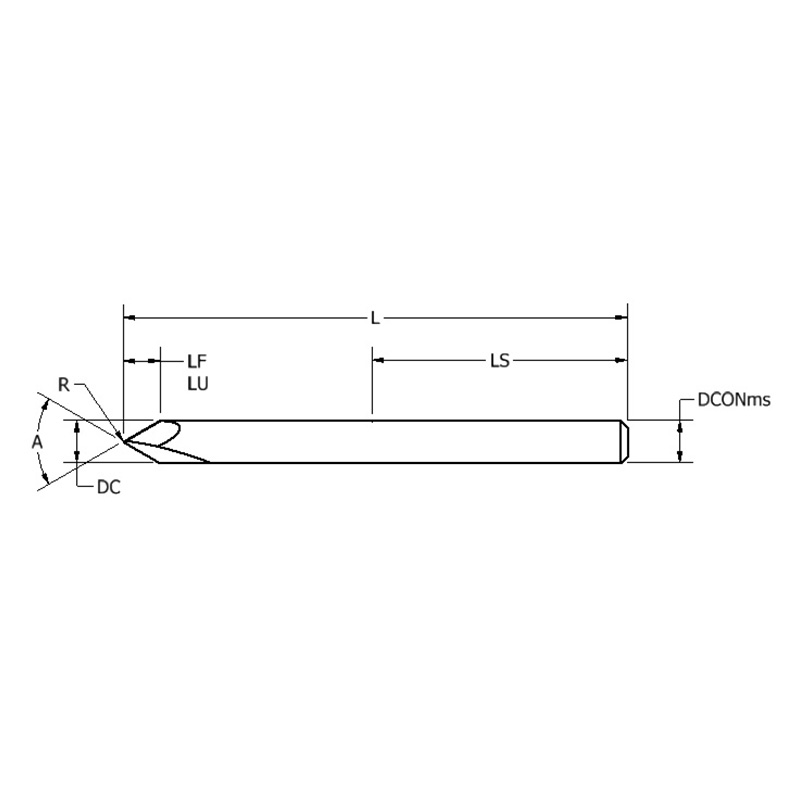

UM (Unit of Measure):ImperialDC (Cut Diameter):0.1250A (Angle):30.0L (Overall Length):1.5000LF (Functional Length):0.2180LS (Length of Shank):0.7500LU (Usable Length):0.2180R (Radius):0.0050Zc (Cutting Edge Count):2DCONms (Connection Diameter Machine Side):0.1250ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.1250CONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):CarbideCoolant Thru:NoHAND (Hand of Cut):R
