ULTRA-DEX® 915 (SSUD-1000-10-5R), 1" Steel Boring Bar, Positive Triangle (KAPR 95°), 4:1 Ratio, Right Hand, Series F, Q & S, Coolant Thru

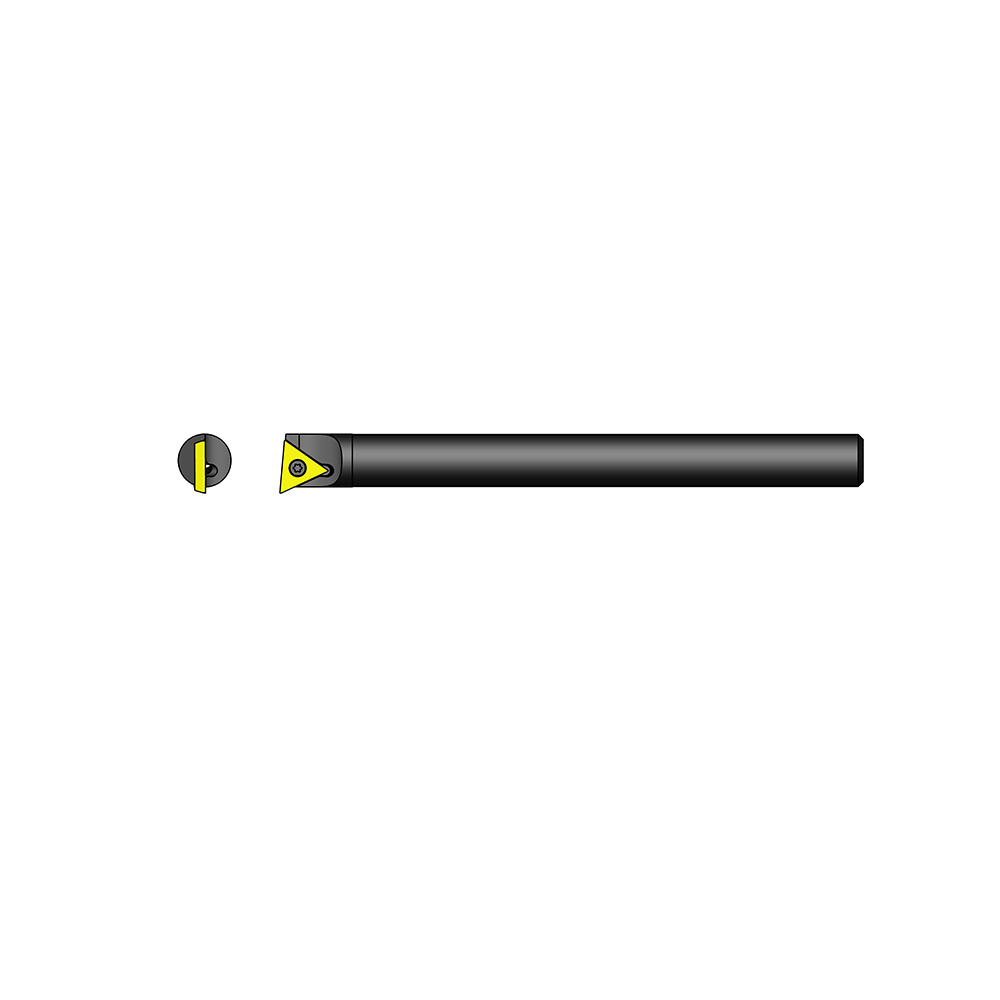

Photo of 915-000-092

Product Number: 915-000-092

ULTRA-DEX® 915 (SSUD-1000-10-5R), 1" Steel Boring Bar, Positive Triangle (KAPR 95°), 4:1 Ratio, Right Hand, Series F, Q & S, Coolant Thru


104-SSUD-1000-10-5R

Ready to Buy?

Log in to obtain the best pricing and availability.
List Price: $223.87
Your Price: $223.87
Spin UpSpin Down
Quantity is Required Quantity must be a positive round number greater than Quantity must be in correct increments based on minimum value and increment steps. Min Value
  • Overview
ULTRA-DEX® 915 (SSUD-1000-10-5R), 1" Steel Boring Bar, Positive Triangle (KAPR 95°), 4:1 Ratio, Right Hand, Series F, Q & S, Coolant Thru

Product Specs

UM (Unit of Measure):ImperialDmin (Min. Bore Dia.):1.1050KAPR (Entering Angle):95.0LF (Functional Length):10.0000WF (Functional Width):0.5850DCONms (Connection Diameter Machine Side):1.0000ADINTms (Connection Type Machine Side):Straight Shank - Imperial 1.0000BMC (Tool Material):SteelCoolant Thru:Yes

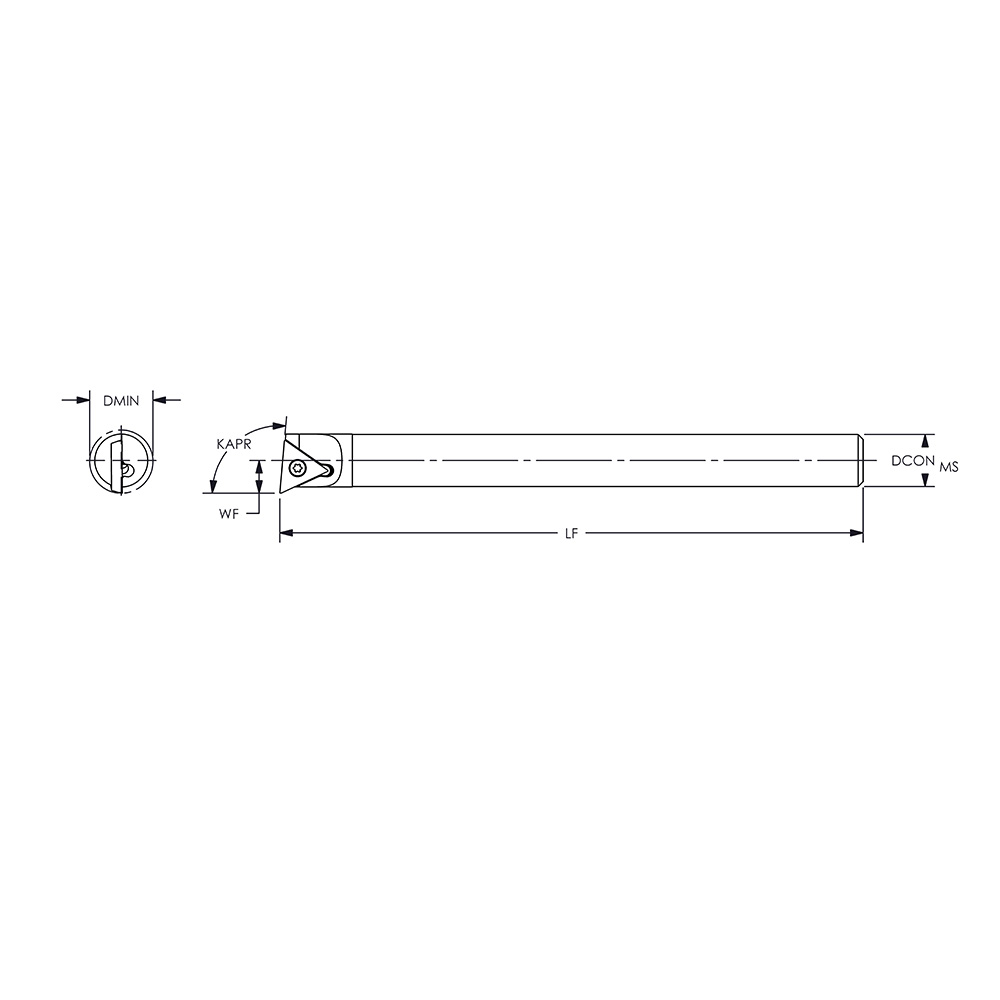

Diagram of 915-000-092

Related Products


968-000-052

INSERT SCREW

968-000-149

TORX L-KEY

968-000-150

TORX SCREWDRIVER

913-000-456

TD 320.5 UD51 SERIES POSITIVE INSERT

913-000-457

TD 321 UD51 SERIES POSITIVE INSERT

913-000-458

TD 322 UD51 SERIES POSITIVE INSERT
