ULTRA-DEX® STEALTH® 912 (SH24 DDUNR4), Ø40mm Anti-Vibration Modular Boring Bar Head, Negative 55° Diamond (KAPR 93°), Pullback Clamp, Serrated, Imperial, Right Hand, Coolant Thru

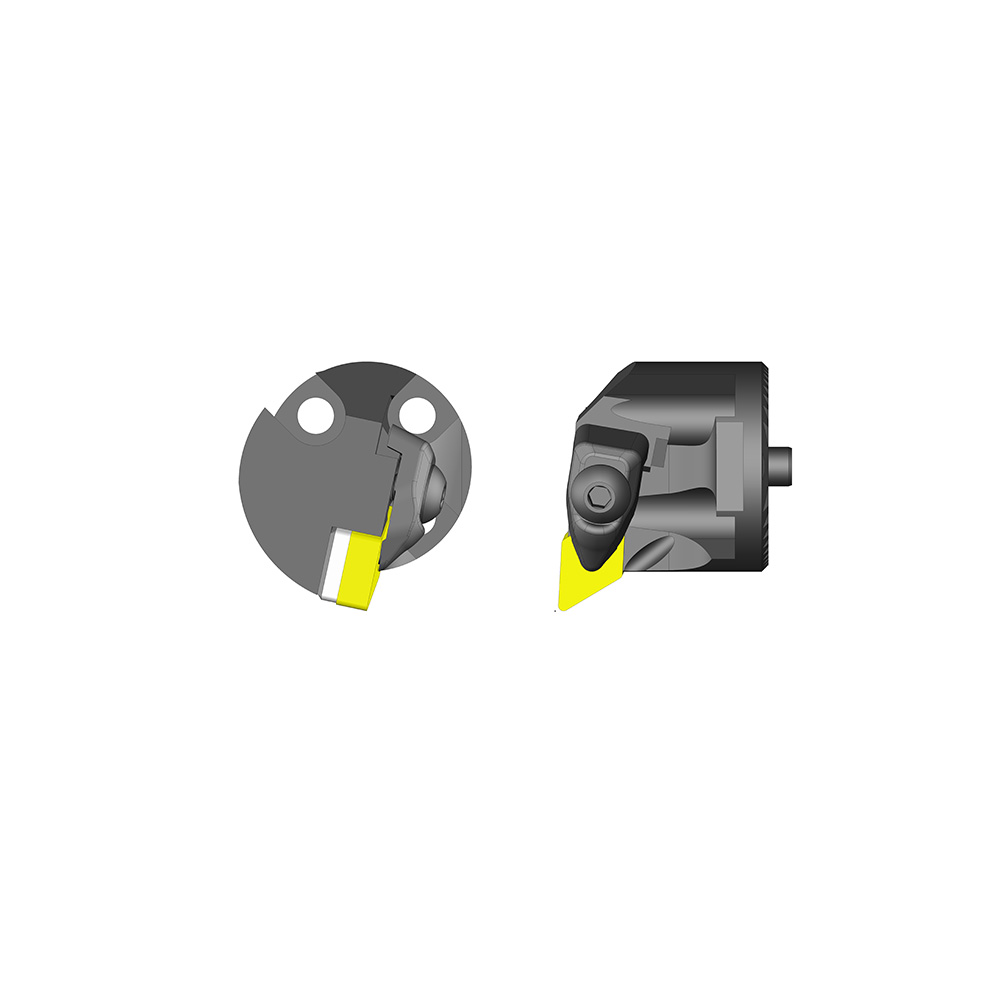

Photo of 912-000-248

Product Number: 912-000-248

ULTRA-DEX® STEALTH® 912 (SH24 DDUNR4), Ø40mm Anti-Vibration Modular Boring Bar Head, Negative 55° Diamond (KAPR 93°), Pullback Clamp, Serrated, Imperial, Right Hand, Coolant Thru


104-SH24 DDUNR4

Ready to Buy?

Log in to obtain the best pricing and availability.
List Price: $443.95
Your Price: $443.95
Spin UpSpin Down
Quantity is Required Quantity must be a positive round number greater than Quantity must be in correct increments based on minimum value and increment steps. Min Value
  • Overview
ULTRA-DEX® STEALTH® 912 (SH24 DDUNR4), Ø40mm Anti-Vibration Modular Boring Bar Head, Negative 55° Diamond (KAPR 93°), Pullback Clamp, Serrated, Imperial, Right Hand, Coolant Thru

Product Specs

UM (Unit of Measure):ImperialDmin (Min. Bore Dia.):1.9680KAPR (Entering Angle):93.0LF (Functional Length):1.2600WF (Functional Width):1.0630DCONms (Connection Diameter Machine Side):1.5750ADINTms (Connection Type Machine Side):Serrated Style - Metric 40.00mmBMC (Tool Material):SteelCoolant Thru:Yes

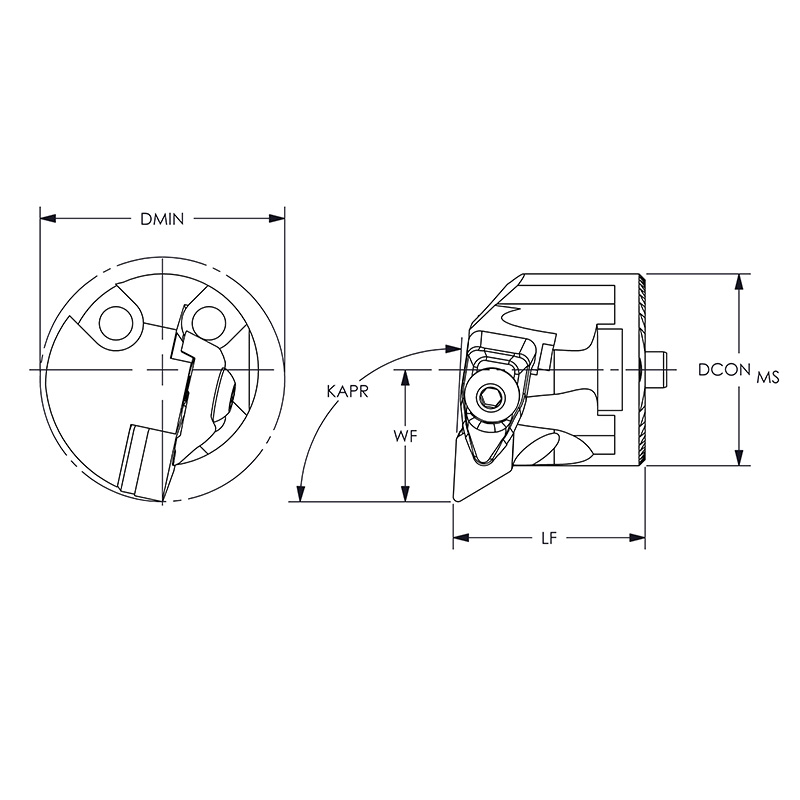

Diagram of 912-000-248

Related Products


914-000-079

DNMG 431-CM2 HM250 NEGATIVE INSERT

914-000-080

DNMG 431-CX1 HP250 NEGATIVE INSERT

913-000-285

DNMG 431-ZM1 UD32 NEGATIVE INSERT

913-000-286

DNMG 431-ZP1 UD51 NEGATIVE INSERT

913-000-287

DNMG 431-ZP1 UD52 NEGATIVE INSERT

913-000-288

DNMG 431-ZX2 UD21 NEGATIVE INSERT

914-000-081

DNMG 432-CM2 HM250 NEGATIVE INSERT

914-000-082

DNMG 432-CX1 HP250 NEGATIVE INSERT

913-000-289

DNMG 432-ZM1 UD32 NEGATIVE INSERT

913-000-290

DNMG 432-ZP1 UD51 NEGATIVE INSERT

913-000-291

DNMG 432-ZP1 UD52 NEGATIVE INSERT

913-000-292

DNMG 432-ZX2 UD21 NEGATIVE INSERT

968-000-057

SHIM SEAT

968-000-110

PULLBACK CLAMP ASSEMBLY

968-000-111

SHIM SCREW
