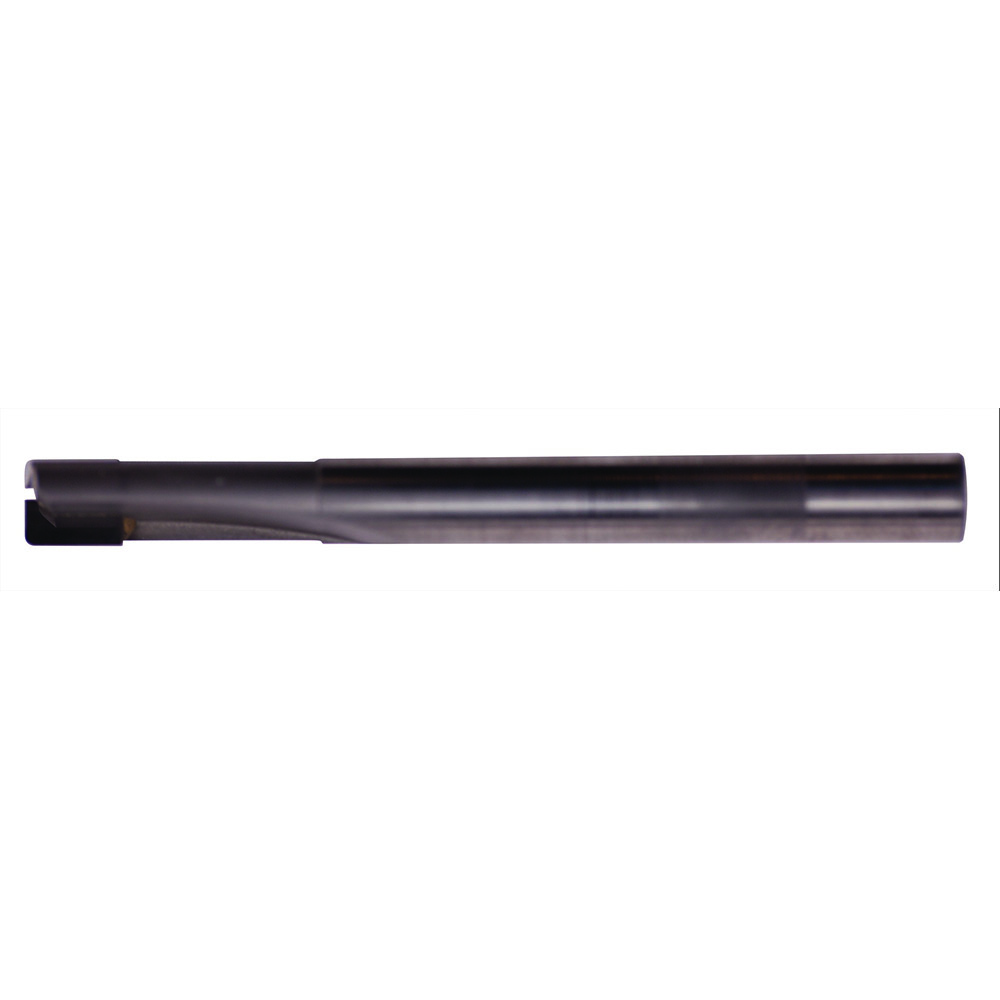

KEO® 935 PCD End Mill, Ø1/2 x 1/4, 2 Flute, .030 Corner Radius
Product Specs

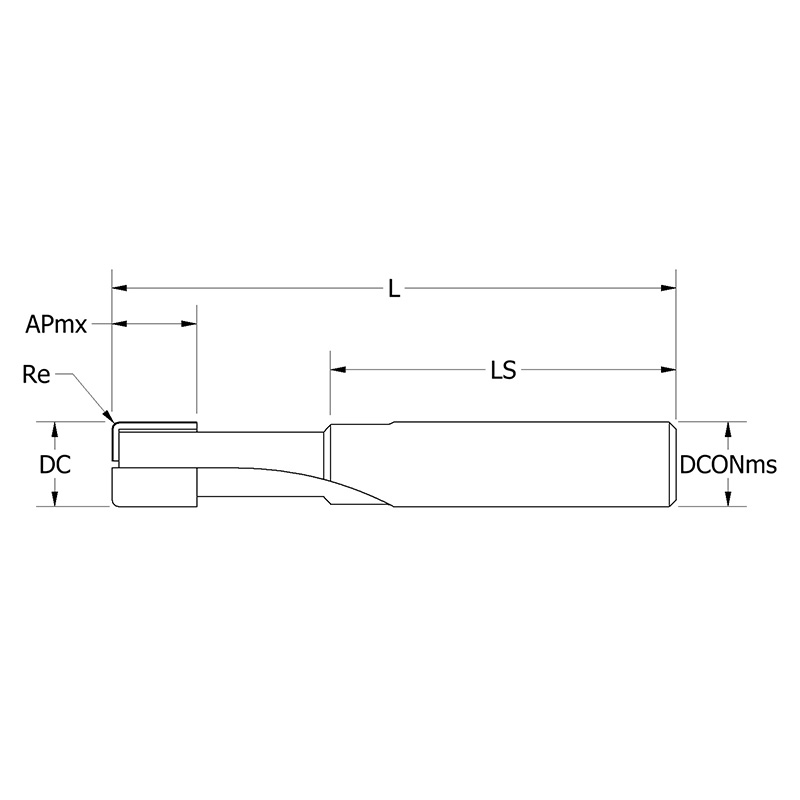

UM (Unit of Measure):ImperialDC (Cut Diameter):0.5000APmx (Max Axial Depth of Cut):0.2500L (Overall Length):3.0000LS (Length of Shank):2.0000Re (Cutting Edge Corner Radius):0.0300Zc (Cutting Edge Count):2DCONms (Connection Diameter Machine Side):0.5000ADINTms (Connection Type Machine Side):Straight Shank - Imperial 0.5000CONTYPE (Connection Type):ShankCOATING:UncoatedBMC (Tool Material):PCDCoolant Thru:NoHAND (Hand of Cut):R
