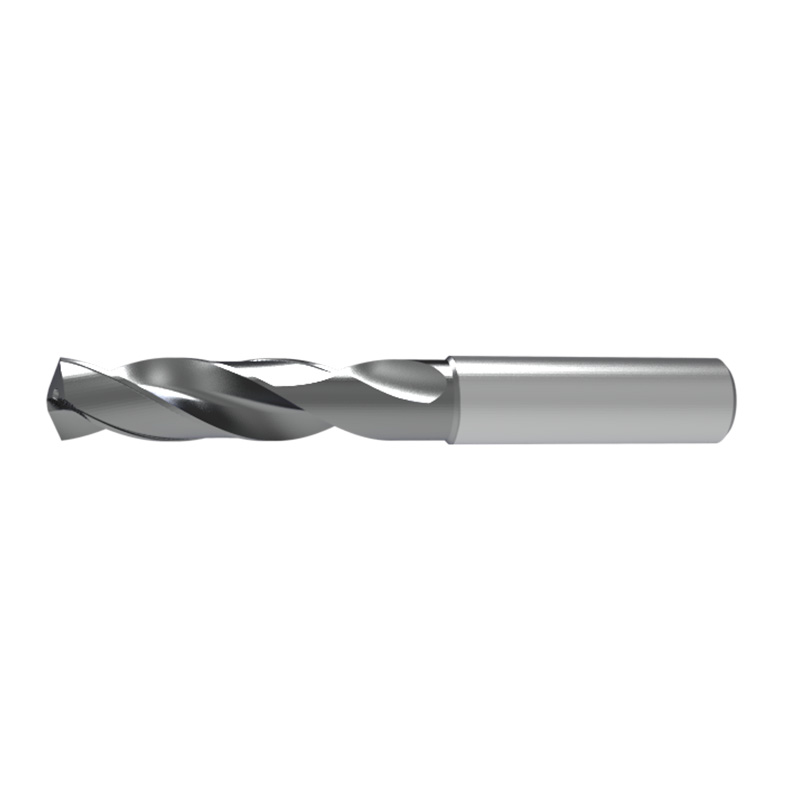

PATRIOT HP® 928 Solid Carbide Drill, Metric Size, Ø0.80 mm, Drill Length 5xD, 4mm Shank, Coolant Through, AlCrN Coated
Product Specs

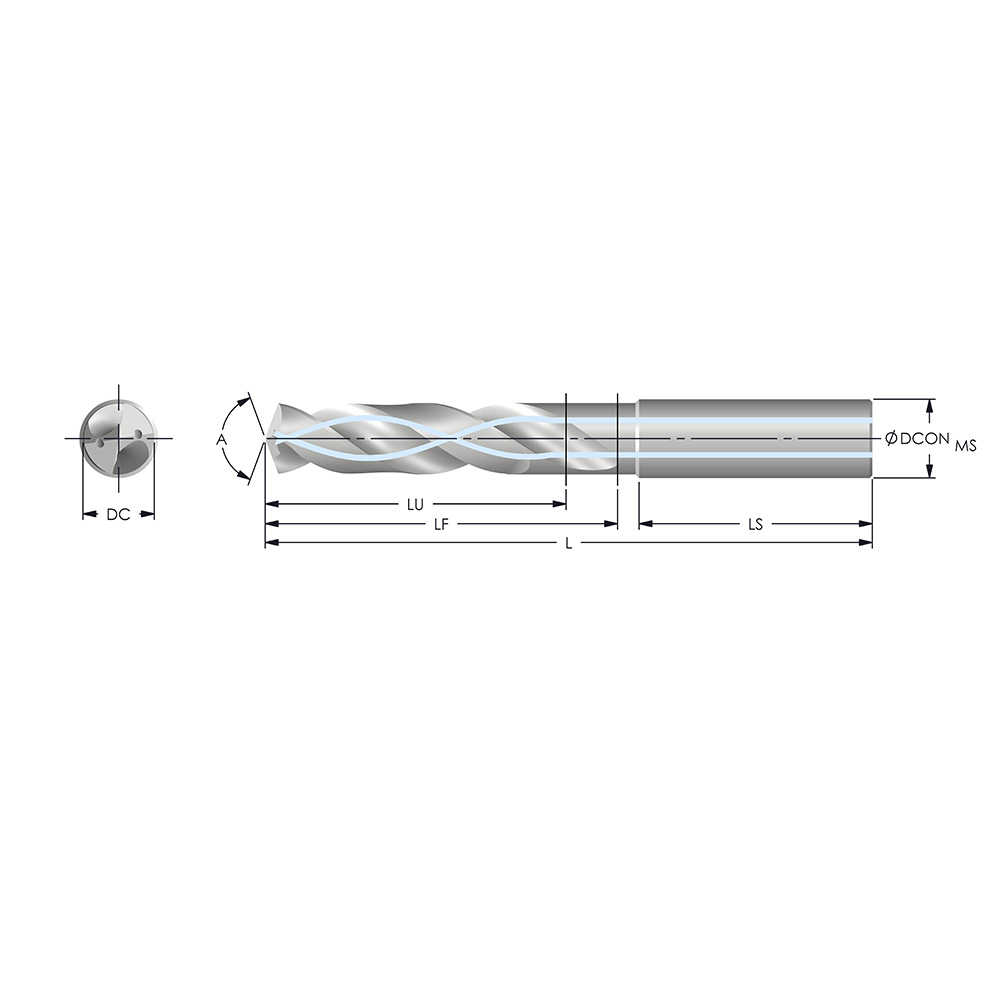

UM (Unit of Measure):MetricDC (Cut Diameter):0.80A (Angle):140.0L (Overall Length):58.00LF (Functional Length):7.00LS (Length of Shank):28.00LU (Usable Length):5.00Zc (Cutting Edge Count):2DCONms (Connection Diameter Machine Side):4.00ADINTms (Connection Type Machine Side):Straight Shank - Metric 4.00mmCONTYPE (Connection Type):ShankCOATING:AlCrNBMC (Tool Material):CarbideCoolant Thru:YesHAND (Hand of Cut):RSG (Specification Group):DIN 6537
